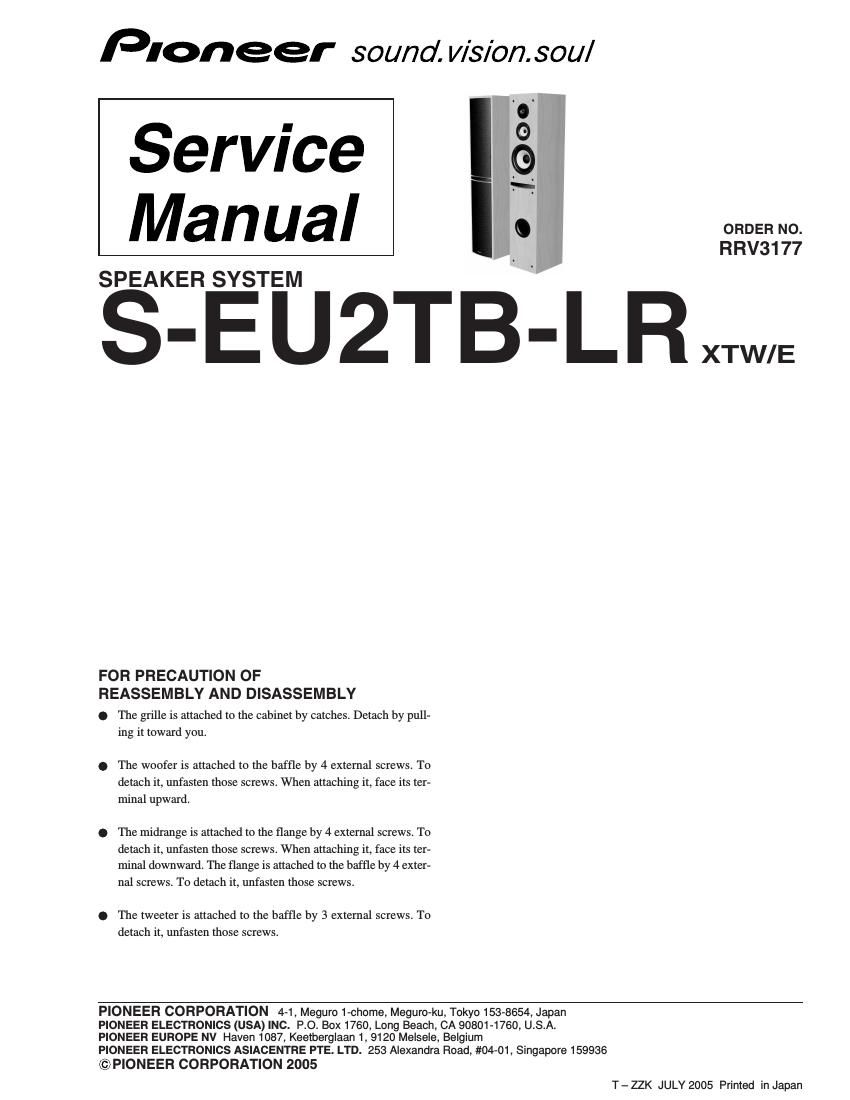

Pioneer seu 2 tblr service manual

Page 1

2 1 23 4 1234 C D F A B E S-EU2TB-LR Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST Mark No. Description Part No. SCHEMATIC DIAGRAM Flange 31-200200-01 Grille (without Badge) 31-200200-03 Grille (with Badge) 30-200200-04 Terminal 37-108420-01 Tweeter 40-000003-01 Mid-Range Driver 40-258104-01 Woofer 40-528306-01 Capacitor 42-001210-01 Lead Wire (for Woofer) 45-222302-52 Lead Wire (for Mid Range) 45-223002-52 Lead Wire (for Tweeter) 45-227502-52 Wall Mount 56-813300-00 Screw (for Wall Mount) 50-031202-04 Screw (for Woofer) 50-041868-14 Screw (for Tweeter) 50-381816-14 Screw (for Mid Range) 50-381816-24 Input BlackRed Red Black Red Black Red Black 1.2 µ F/100V Woofer Mid Range Tweeter For Packing Mark No. Description Part No. 1Speaker Cable 44-220330-01 2Carton Box 60-200207-01 3Polyethylene foam 63-200200-01 4Polyethylene Bag 64-474726-14 5Polyethylene Bag 64-362426-24 6Owners Manual 77-200207-01 (English, Spanish, Chinese) 3 Speaker System 4 2 1 3 6 5 4 Speaker System
