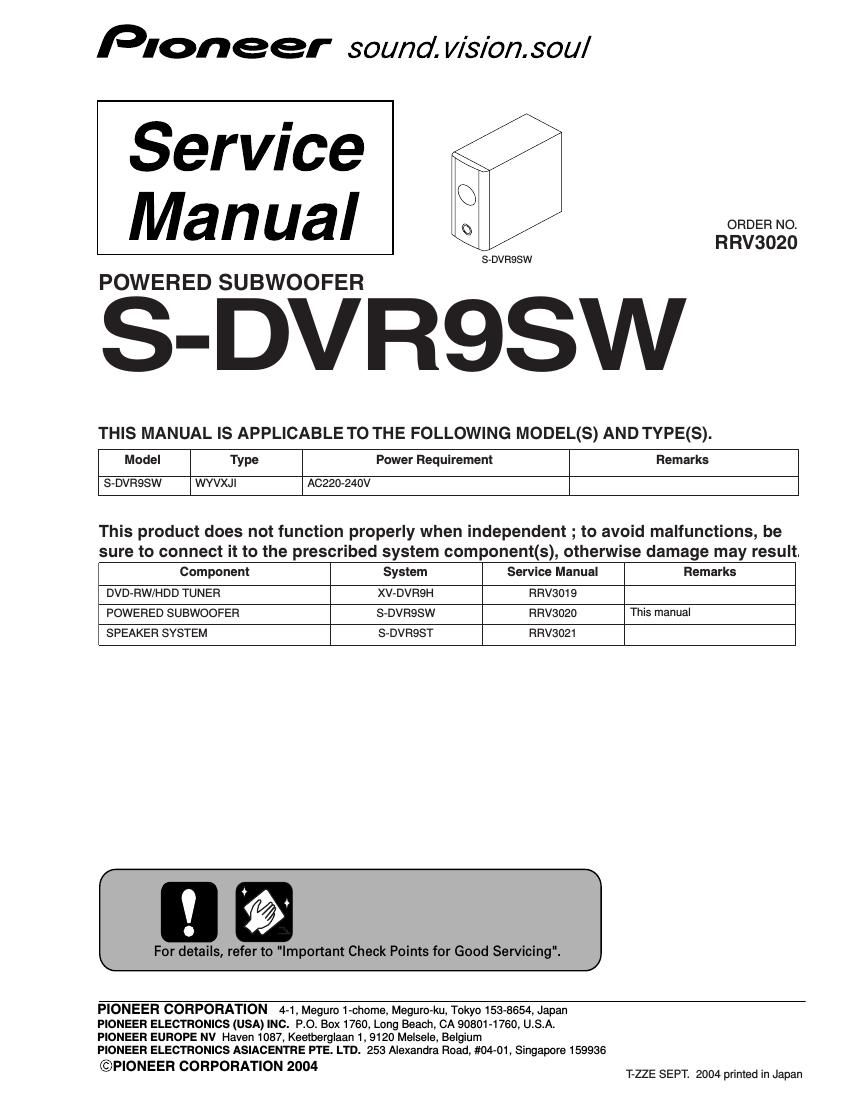

Page 1

Pioneer sound. vision. soul

Service \

Q

Manual g

RRV3020

SVDVFIQSW

POWERED SUBWOOFER

S-DVRQSW

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

Model Type Power Requirement
S-DVRQSW WYVXJI A0220-24OV

Remarks

This product does not function properly when independent ; to avoid malfunctions, be
sure to connect it to the prescribed system com

aonent(s), otherwise damage may result
Component System Service Manual Remarks
DVD-RW/HDD TUNER XV-DVR9H RRV3019
POWERED SUBWOOFER S-DVRQSW RRV3020 This manual
SPEAKER SYSTEM S-DVRQST RRV3021

@.

For details, refer to "Important Check Points for Good Servicing".

PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan

PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.

PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

(5

UPIONEER CORPORATION 2004 T-ZZE SEPT. 2004 printed in Japan

Page 2

1 - 2 - 3 - 4

SAFETY INFORMATION

This service manual is intended for qualified service technicians; it is not meant for the casual
do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been
trained to properly and safely repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may
void the warranty. If you are not qualified to perform the repair of this product properly and safely, you
should not risk trying to do so and refer the repair to a qualified service technician.

WARNING
This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to
cause cancer, birth defects or other reproductive harm.

Health & Safety Code Section 25249.6 - Proposition 65

NOTICE

(FOR CANADIAN MODEL ONLY)

Fuse symbols EH (fast operating fuse) and/or {2% (slow operating fuse) on PCB indicate that replacement
parts must be of identical designation.

REMAROUE

(POUR MODELE CANADIEN SEULEMENT)

Les symboles de fusible IEEL (fusible de type rapide) et/ou ER (fusible de type lent) surCCl indiquentque
Ies pieces de remplacement doivent avoir Ia meme designation.

- (FOR USA MODEL ONLY)

1. SAFETY PRECAUTIONS

The following check should be performed for the
continued protection of the customer and service
technician.
LEAKAGE CURRENT CHECK

Measure leakage current to a known earth ground
(water pipe, conduit, etc.) by connecting a leakage
current tester such as Simpson Model 229-2 or
equivalent between the earth ground and all exposed
metal parts of the appliance (input/output terminals,
screwheads, metal overlays, control shaft, etc.). Plug
the AC line cord of the appliance directly into a 120V
AC 60 HZ outlet and turn the AC power switch on. Any
current measured must not exceed 0.5 mA.

b Reading should
not be above
0.5 mA

Leakage

current
Device tester
under
IeSI

Test all
exposed metal
surfaces

ANY MEASUREMENTS NOT WITHIN THE
LIMITS OUTLINED ABOVE ARE INDICATIVE
OF A POTENTIAL SHOCK HAZARD AND
MUST BE CORRECTED BEFORE RETURN-
ING THE APPLIANCE TO THE CUSTOMER.

2. PRODUCT SAFETY NOTICE

Many electrical and mechanical parts in the appliance
have special safety related characteristics. These are
often not evident from visual inspection nor the
protection afforded by them necessarily can be obtained
by using replacement components rated for voltage,
wattage, etc. Replacement parts which have these
special safety characteristics are identified in this
Service Manual.

Electrical components having such features are

identified by marking with a A on the schematics and
on the parts list in this Service Manual.
The use of a substitute replacement component which
does not have the same safety characteristics as the
PIONEER recommended replacement one, shown in the
parts list in this Service Manual, may create shock, fire,
or other hazards.

Product Safety is continuously under review and new

6 instructions are issued from time to time. For the latest

« information, always consult the current PIONEER
Aisotestwith Service Manual. A subscription to, or additional copies
fiblsgin'éfc'fiamy Eanh of, PIONEER Service Manual may be obtained at a
plug as required) 7 ground nominal charge from PIONEER.

AC Leakage Test
S-DVRQSW
1 l 2 3 I 4
