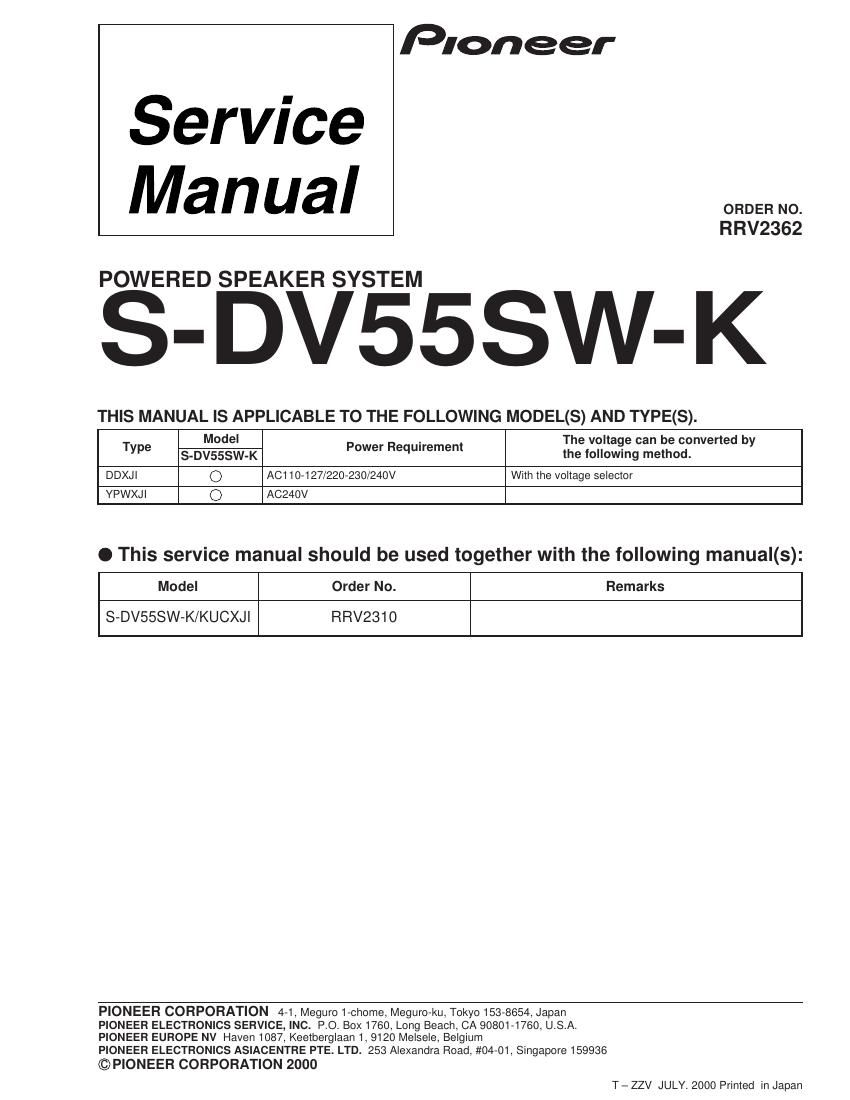

pioneer sdv 55 swk service manual

Extracted text from pioneer sdv 55 swk service manual (Ocr-read)


Page 1

2 S-DV55SW-K 1. CONTRAST OF MISCELLANEOUS PARTS Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. Reference Nos. indicate the pages and Nos. in the service manual for the base model. NOTES: When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 561 473 R50 1R0 5621 560 47k 0.5 1RD1/4PU J RD1/4PU J RN2H K RS1P K 56 x 10 1 47 x 10 3 R50 1R0561 473 5.62k RN1/4PC F562 x 10 1 5621 CONTRAST TABLE S-DV55SW-K/DDXJI, S-DV55SW-K/YPWXJI and S-DV55SW-K/KUCXJI are constructed the same except for the following: Part No. Remarks S-DV55SW-K S-DV55SW-K S-DV55SW-K /KUCXJI /DDXJI /YPWXJI NSP MAIN ASSY AWM7532 AWM7535 AWM7536 P7-3 PRI ASSY AWU7627 AWU7646 AWU7647 P7-6 Power Transformer ATS7288 ATS7291 ATS7292 P7-13 Fuse (FU1) REK1067 REK1028 REK1027 (5A/125V) (T4AL250V) (T3.15AL250V) Fuse (FU2,FU3) Not used REK1025 Not used No.1 (T2AL250V) P7-15 NSP Fuse Card Not used AAX7099 AAX7493 P7-16 65 Label ARW7050 Not used Not used P7-18 Rear Panel ANC7922 ANC7924 ANC7962 SW Barrier (PLS) Not used AEC7291 Not used No.2 P5-16 NSP AMPLIFIER ASSY AXX7076 AXX7080 AXX7081 P5-17 NSP Serial Barcode Label SRM1080 Not used Not used P5-18 NSP Serial Label Not used SME3056 SME3057 P3-2 Packing Case SHG2272 SHG2282 SHG2283 Ref. No.MarkSymbol and Description T2 ATT7049 ATT7048 ATT7050 R1 RCN1080 Not used Not used KN2 VNF1084 Not used Not used AN1 XKP3042 XKP3041 XKP3041 S1 Not used XKX3002 Not used H3-H6 Not used AKR7001 Not used CN2 Not used B4P7S-VH Not used MarkSymbol and DescriptionPart No. AWU7627 AWU7646 AWU7647Remarks PRI ASSY AWU7646, AWU7647 and AWU7627 are constructed the same except for the following: CONTRAST OF PCB ASSEMBLIES C Notes:Ö The numbers in the remarks column correspond to the numbers on "EXPLOEDED VIEWS". Ö For ASSEMBLIES, refer to ÒCONTRAST OF PCB ASSEMBLIESÓ and Ò2. SCHEMATIC DIAGRAMÓ.

Page 2

3 S-DV55SW-K PRI ASSY No.2 AF ASSY FU1No.1 (FU2)No.1 (FU3) Fuse Card A CF No.2 EXPLODED VIEWS
