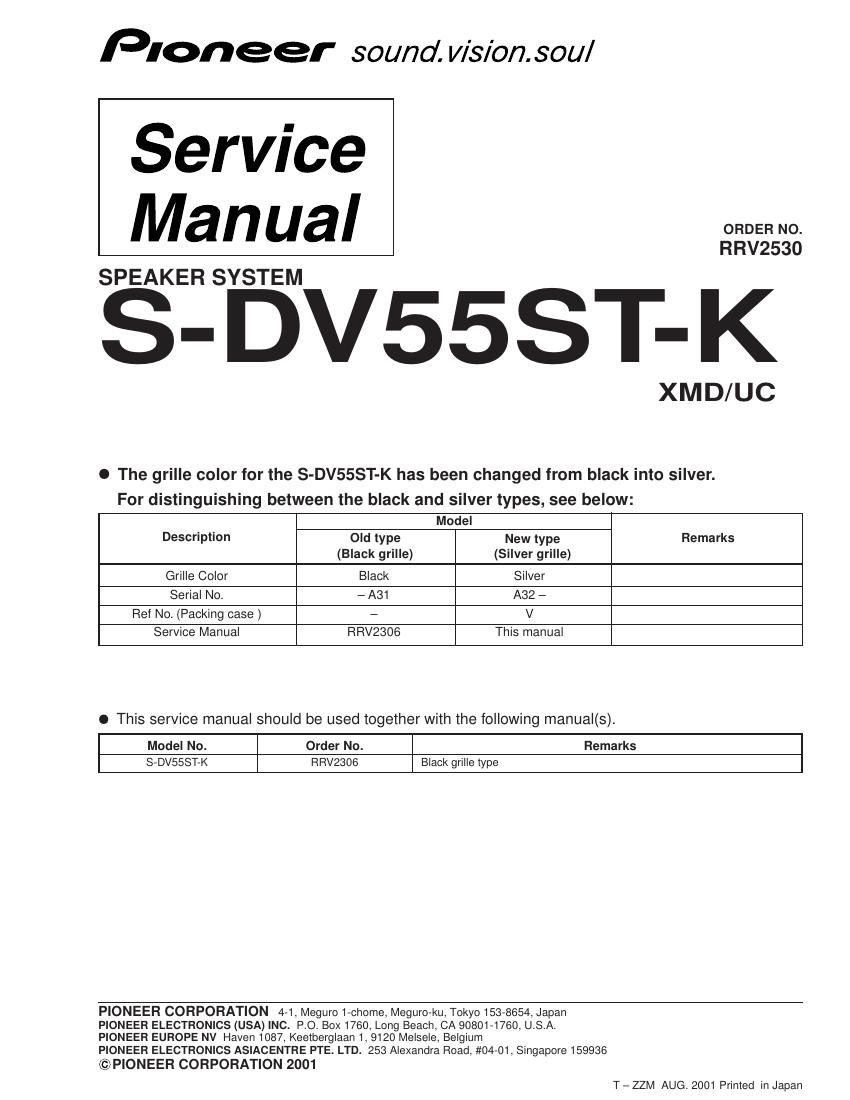

Pioneer sdv 55 stk service manual
This is the 2 pages manual for pioneer sdv 55 stk service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer sdv 55 stk service manual (Ocr-read)
Page 1
S-DV55ST-K 2 CONTRAST OF MISCELLANEOUS PARTS Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. Reference Nos. indicate the pages and Nos. in the service manual for the base model. NOTES: CONTRAST TABLE The black and silver types are constructed the same except for the following : CS ASSY (Center) p2 Grille SMG1693 SMG1695 NSP Grille Cloth SAS1480 SAS1482 CS ASSY (Front/Rear) p3 Grille SMG1694 SMG1696 NSP Grille Cloth SAS1481 SAS1483 Part No. Old type (Black grille) Ref. No. Symbol and Description Remarks MarkNew type (Silver grille)
