Pioneer sdv 333 service manual

This is the 7 pages manual for pioneer sdv 333 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 7

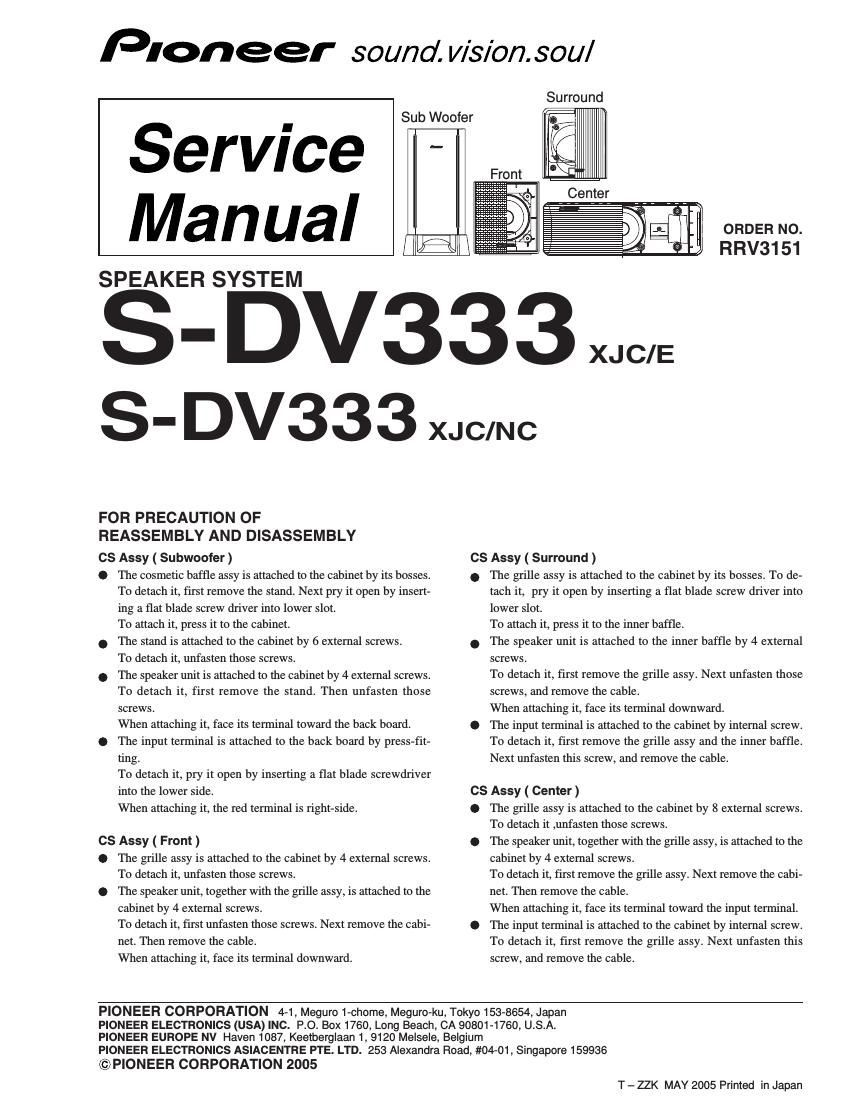

pioneer sdv 333 service manual

Extracted text from pioneer sdv 333 service manual (Ocr-read)


Page 1

2 1 23 4 1234 C D F A B E S-DV333 For Packing Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST Mark No. Description Part No. CS ASSY (Front) Mark No. Description Part No. NSP Cabinet SNK2846 Grille SMG1838 NSP Badge 28 SAM1506 NSP Grille Cloth SAS1588 NSP Baffle SNK2847 Connecting Cord SDD1345 Input Terminal SKX1096 NSP Acoustic Absorbent (White) SMV2194 NSP Acoustic Absorbent (Black) SMV2198 Speaker (Full-Range) K77DU55-52D Screw (for Input Terminal) BPZ35P080FNI Screw (for Cabinet) BPZ35P120FNI NSP CS Assy (Front) SMW1860 NSP CS Assy (Surround) SMW1861 NSP CS Assy (Center) SMW1862 NSP CS Assy (Subwoofer) SMW6156 for XJC/E type NSP Model Label (FL) SAN3571 NSP Model Label (FR) SAN3572 NSP Model Label (SL) SAN3573 NSP Model Label (SR) SAN3574 NSP Model Label (C) SAN3575 NSP Model Label (SW) SAN3576 for XJC/NC type NSP Model Label (FL) SAN3644 NSP Model Label (FR) SAN3645 NSP Model Label (SL) SAN3646 NSP Model Label (SR) SAN3647 NSP Model Label (C) SAN3648 NSP Model Label (SW) SAN3649 NSP Accessory Set SEA1684 Speaker Wire (FL: White) SDS1174 Speaker Wire (FR: Red) SDS1175 Speaker Wire (SL: Blue) SDS1176 Speaker Wire (SR: Gray) SDS1177 Speaker Wire (C: Green) SDS1178 Speaker Wire (SW: Purple) SDS1179 NSP Bracket Set SEA1680 NSP Screw Set SEA1676 Screw BMZ50P120FNC Polyethylene Bag S0 SHL1314 Mounting Bracket SNN1047 Polyethylene Bag S1 SHL1429 Non Skid Pad SEP6002 Polyethylene Bag S1 SHL1251 Top Protector SHA2507 Middle Protector SHA2494 Bottom Protector SHA2495 Polyethylene Bag S1 SHL1419 Polyethylene Bag S2 SHL1420 Non Skid pads SEP1332 Protection Sheet S6 SHC1825 for XJC/E type Paking Case SHG2633 for XJC/NC type Paking Case SHG2642 Mark No. Description Part No. CS ASSY (Surround) NSP Inner Baffle SNK2848 NSP Cabinet (L) SNK2849 NSP Cabinet (R) SNK2871 Grille SMG1839 NSP Badge 28 SAM1506 NSP Grille Cloth SAS1590 NSP Grille Frame SMH1102 Connecting Cord SDD1345 Gasket SEC1910 Packing (size: 4 x 104 mm) SEC1927 Packing (size: 4 x 111 mm) SEC1928 Packing (size: 4 x 84 mm) SEC1929 Input Terminal SKX1096 Speaker (Full-Range) K77DU55-51D Screw (for Full-Range) BPZ35P080FNI Screw (for Input Terminal) BPZ35P080FNI Screw (for Inner Baffle) BPZ35P120FNI

Page 2

3 1 234 1 23 4 C D F A B E S-DV333 Mark No. Description Part No. CS ASSY (Subwoofer) Mark No. Description Part No. CS ASSY (Center) NSP Cabinet SNK2851 Grille SMG1840 NSP Badge 28 SAM1506 NSP Grille Cloth SAS1591 NSP Baffle SNK2852 Connecting Cord SDD1345 Packing SEC1913 Input Terminal SKX1096 NSP Acoustic Absorbent (White) SMT1293 NSP Acoustic Absorbent (Black) SMV2198 Speaker (Full-Range) K77DU55-51D Screw (for Input Terminal) BPZ35P080FNI Screw (for Cabinet) BPZ35P120FNISpeaker (Woofer) A14LU75-54D Screw (for Woofer) BYC40P160FNI Screw (for Stand) BYC40P160FNI Cable SDD6008 Gasket SEC6058 Input Terminal SKX1060 Cosmetic BF Assy SXB6003 NSP Badge 37 SAM1507 NSP Cosmetic Baffle SNK6109 SCHEMATIC DIAGRAM INPUT Full-Range White Red Connecting Cord (SDD1345) 1, CS ASSY (FRONT, CENTER, SURROUND) 2, CS ASSY (SUB WOOFER) INPUT Woofer Black Red Cable (SDD6008)
