Pioneer sdv 252 sw service manual

This is the 3 pages manual for pioneer sdv 252 sw service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 3
pioneer sdv 252 sw service manual

Extracted text from pioneer sdv 252 sw service manual (Ocr-read)


Page 1

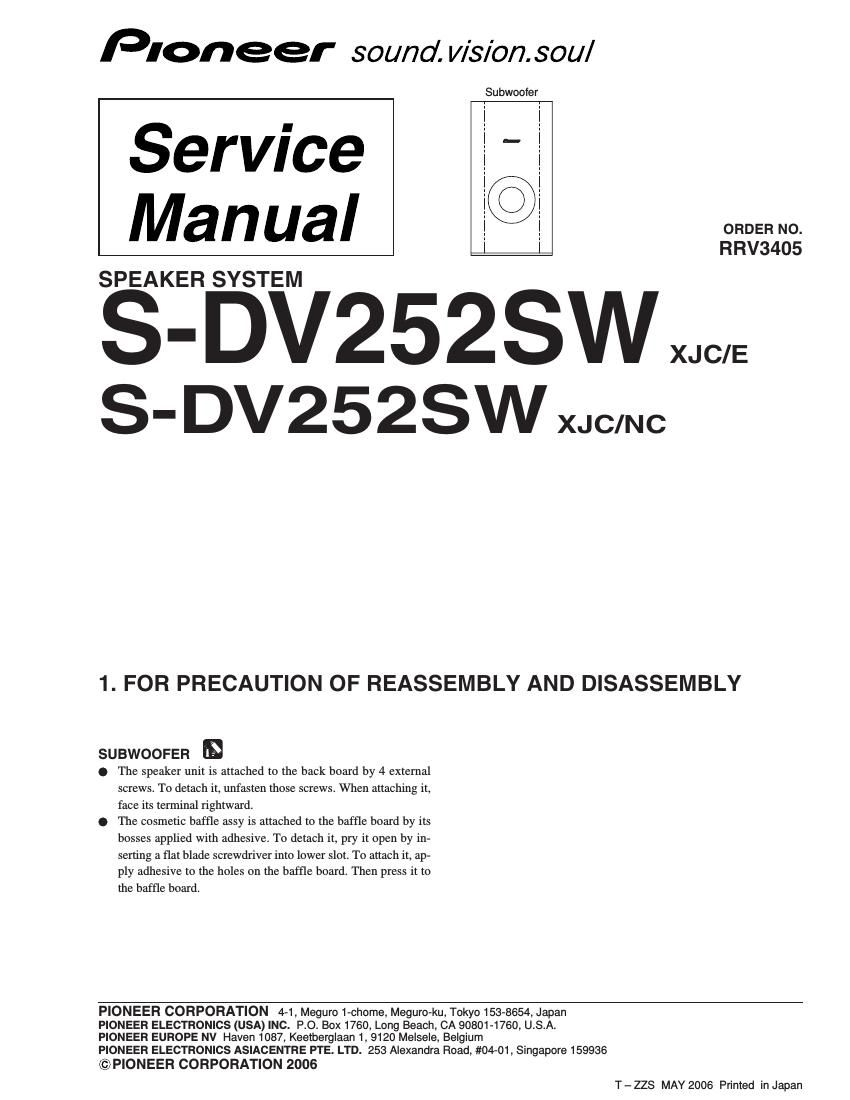

2 1 23 4 1234 C D F A B E S-DV252SW 2 1 3 (2/2) 3 (1/2) 4 3 (1/2) 3 (2/2) 5 NSP 1 Subwoofer SMW1937 NSP 2 Accessory Set SME6074 Speaker Cable (SW: Purple) SDS1179 Non Skid Pad (for Subwoofer) SEC2070 Polyethylene Bag S1 SHL1352 3Protector SHA6114 4Protection Sheet SHC1821 for XJC/E type 5Packing Case SHG6217 NSP Model Label SAN6359 for XJC/NC type 5Packing Case SHG6232 NSP Model Label SAN6395 Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: 2. EXPLODED VIEWS AND PARTS LIST Mark No. Description Part No. 2.1 PACKING PACKING Parts List

Page 2

3 1 234 1 23 4 C D F A B E S-DV252SW SUBWOOFER Parts List 2.2 SUBWOOFER 7 Model Label 11 10 320288(285) 1 2 4 3 8 5 6 9 190 360 NSP 1 Cabinet SMM2037 2Cosmetic BF. Assy SXB1490 NSP 3 Badge 37 SAM1507 4Packing SEC2072 NSP 5 Paper Tube 60 SMR1402 NSP 6 Acoustic Absorbent SMV2229 NSP 7 Cosmetic Baffle SNK2927 8Connecting Cord SDD1350 9Input Terminal SKX1060 10 Speaker A14LU80-51C 11 Screw BYC40P130FTB Mark No. Description Part No. 3. SCHEMATIC DIAGRAM INPUT Speaker BlackRed Connecting Cord (SDD1350)
