Pioneer sdv 1000 st service manual

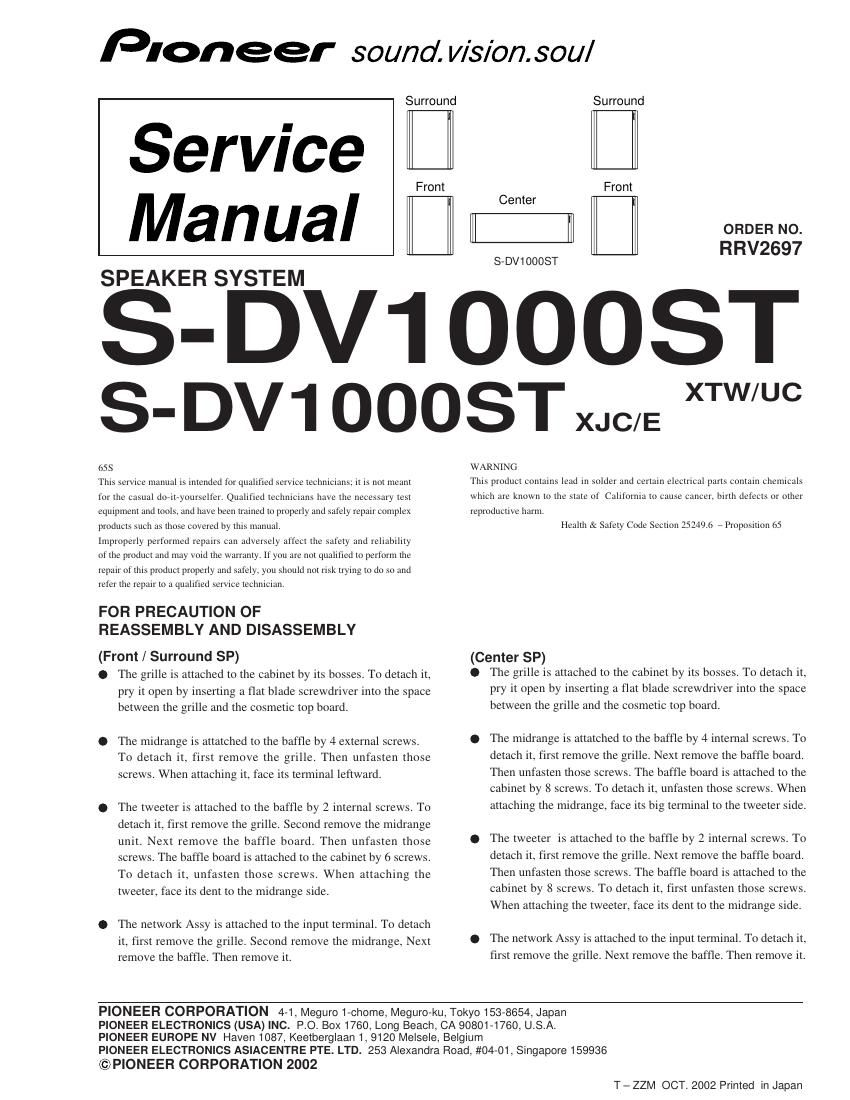

This is the 3 pages manual for pioneer sdv 1000 st service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer sdv 1000 st service manual (Ocr-read)
Page 1
2 1 23 4 1234 C D F A B E S-DV1000ST Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST Mark No. Description Part No. Mark No. Description Part No. For XTW/UC type NSP CS Assy (Front / Surround) SMW1752 NSP CS Assy (Center) SMW1753 NSP Label Back (Front - L) SAN3184 NSP Label Back (Front -R) SAN3185 NSP Label Back (Center) SAN3186 NSP Label Back (Surround - L) SAN3187 NSP Label Back (Surround - R) SAN3188 For XJC/E type NSP CS Assy (Front / Surround) SMW1750 NSP CS Assy (Center) SMW1751 NSP Label Back (Front - L) SAN3174 NSP Label Back (Front -R) SAN3175 NSP Label Back (Center) SAN3176 NSP Label Back (Surround - L) SAN3177 NSP Label Back (Surround - R) SAN3178 For Packing Protector(Bottom) SHA2363 Protector(Top) SHA2364 Packing Case (for XTW/UC type) SHG2458 Packing Case (for XJC/E type) SHG2457 Polyethylene Bag (for Front / Surr.) SHL1344 Polyethylene Bag (for Center) SHL1345 CS Assy (Front / Surround) Grille Assy SMG1778 NSP Grille Cloth SAS1542 Damper SER1325 NSP Grille Frame SMH1057 NSP Cabinet SNH1051 NSP Top Board SNK2616 NSP Baffle Board SNK2618 NSP Back Board SNK2619 N S P Cosmetic Top Board (Black, for XTW/UC type)SNK2638 N S P Cosmetic Top Board (Gray, for XJC/E type)SNK2617 N S P Cosmetic Top Board (Wood, for XJC/E type)SNK2624 Fung Nut M5 SBN1054 Gasket (4 x 92, for BF Board) SEC1637 Gasket (4 x146, for BF Board ) SEC1638 Gasket (4 x 40, for Cos. Top Board)SEC1644 Packing (4 x 32, for Back Board) SEC1645 Packing (4 x 126, for Back Board) SEC1646 Damper (for Top Board) SEP1252 In-put Terminal SKX1062 NSP Acoustic Absorbent (15 x 100) SMV2139 NSP Acoustic Absorbent (60 x100) SMV2142NSP Acoustic Absorbent (50 x70) SMV2143 Network Ass'y SWN1705 Speaker (Midrange) D87DU61-54D Speaker (Tweeter) FK26AP02-73F Screw BPZ30P120FZK (for Back Board, Baffle Board, Top Board) Screw (for Mid, Tw) BPZ40P060FZK Grille Assy SMG1779 NSP Grille Cloth SAS1543 NSP Grille Frame SMH1058 Gasket (4 x 146) SEC1638 NSP Cabinet SNH1052 NSP Top Board SNK2620 NSP Baffle Board SNK2622 NSP Back Board SNK2623 N S P Cosmetic Top Board (Black, for XTW/UC type)SNK2639 N S P Cosmetic Top Board (Gray, for XJC/E type)SNK2621 N S P Cosmetic Top Board (Wood, for XJC/E type)SNK2625 Packing (F52, for Mid.) SEC1571 Gasket (4 x 130, for Mid.) SEC1573 Gasket (4 x146, Cos. Top & BF Board)SEC1638 Gasket (4 x 239, for BF Board) SEC1640 Gasket (4 x 69, for BF Board) SEC1641 Packing (4 x 49, for Back Board) SEC1647 Packing (4 x 154.5, for Back Board)SEC1648 Damper (for Top Board) SEP1252 In-put Terminal SKX1062 NSP Acoustic Absorbent (85 x 220) SMT1147 NSP Acoustic Absorbent (15 x 40) SMV2140 NSP Acoustic Absorbent (40 x 180) SMV2144 Network Ass'y SWN1706 Speaker (Midrange) A142CU54-51D Speaker (Tweeter) FK26AP02-73F Screw BPZ30P120FZK (for Back Board, Baffle Board, Top Board) Screw (for Mid, Tw) BPZ40P060FZK Mark No. Description Part No. CS Assy (Center) Mark No. Description Part No.
Page 2
3 1 234 1 23 4 C D F A B E S-DV1000ST SCHEMATIC DIAGRAM Midrange I N Red Blue White White Tweeter 1.2 µF Network Assy (SWN1705) Midrange I N RedBlue White White Tweeter 1.0 µF Network Assy (SWN1706)
