pioneer sdv 1 t service manual

Extracted text from pioneer sdv 1 t service manual (Ocr-read)

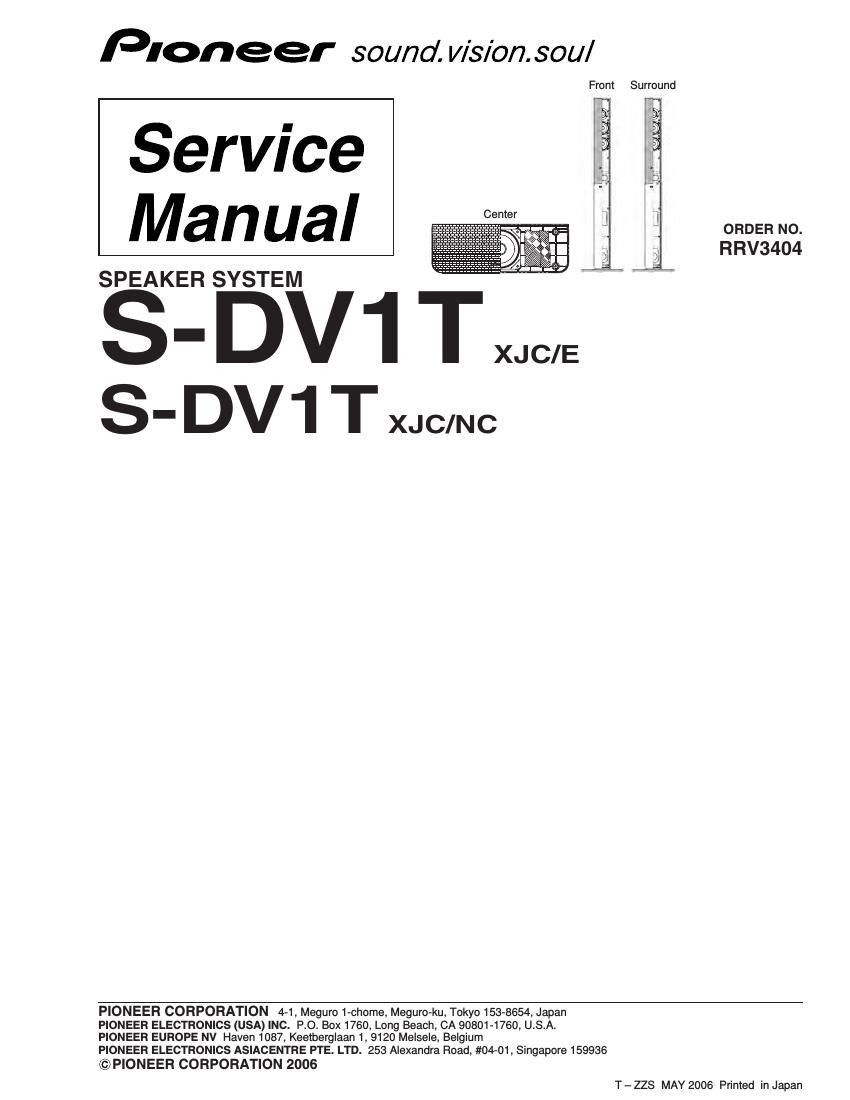

Page 1

2 1 23 4 1234 C D F A B E S-DV1T Rear Front Stem (the bottom of cabinet) Speaker Stand Base GRILLE The grille is attached to the cabinet by its bosses applied with adhesive. To detach it, pry it open by inserting a flat blade screwdriver into lower right and lower left slot. To attach it, apply adhesive to the holes on the baffle. Then press it to the baffle. CAUTION There are 10 bosses for press-fitting at the grille. To detach the grille, remove in order from lower bosses. (Refer to the figure in page 4.) In order not to damage the bosses, don't remove it forcibly. Pry it open little by little. Be sure to insert a flat blade screwdriver from just beside of its bosses. WOOFER The woofer is attached to the baffle by 4 external screws. To detach it, unfasten those screws. To detach it, first remove the grille. Then remove the screws.When attaching it, face its terminal downward. TWEETER The tweeter is attached to the baffle by 3 external screws. To detach it, unfasten those screws. To detach it, first remove the grille. Then remove the screws. When attaching it, face its ter- minal leftward and rightward. COSMETIC PANEL The cosmetic panel is attached to the baffle by its bosses. To detach it, pry it open by inserting a flat blade screwdriver into lower slot. To detach it, first remove the speaker stand base and grille. Then remove the cosmetic panel. When attaching it, fit the boss into the hole on the baffle. 1. REASSEMBLY AND DISASSEMBLY PRECAUTIONS 1.1 FRONT, SURROUND SPEAKER GRILLE The grille assy is attached to the cabinet by 8 external screws. To detach it ,unfasten those screws. SPEAKER UNIT The speaker unit, together with the grille assy, is attached to the cabinet by 4 external screws. To detach it, first remove the grille assy. Next remove the cabinet. Then remove the cable. When attaching it, face its terminal toward the input terminal. 1.2 CENTER SPEAKER SPEAKER STAND BASES The speaker stand base is attached to the bottom of cabinet by 3 external screws. To detach it, unfasten those screws.Attach the speaker stand bases to the stems using the screws provided. Once you have aligned the stem and base, secure with the small screws at the points shown below. Note that the speaker should face in the direction of the base of the isosceles triangle (out- lined below).

Page 2
