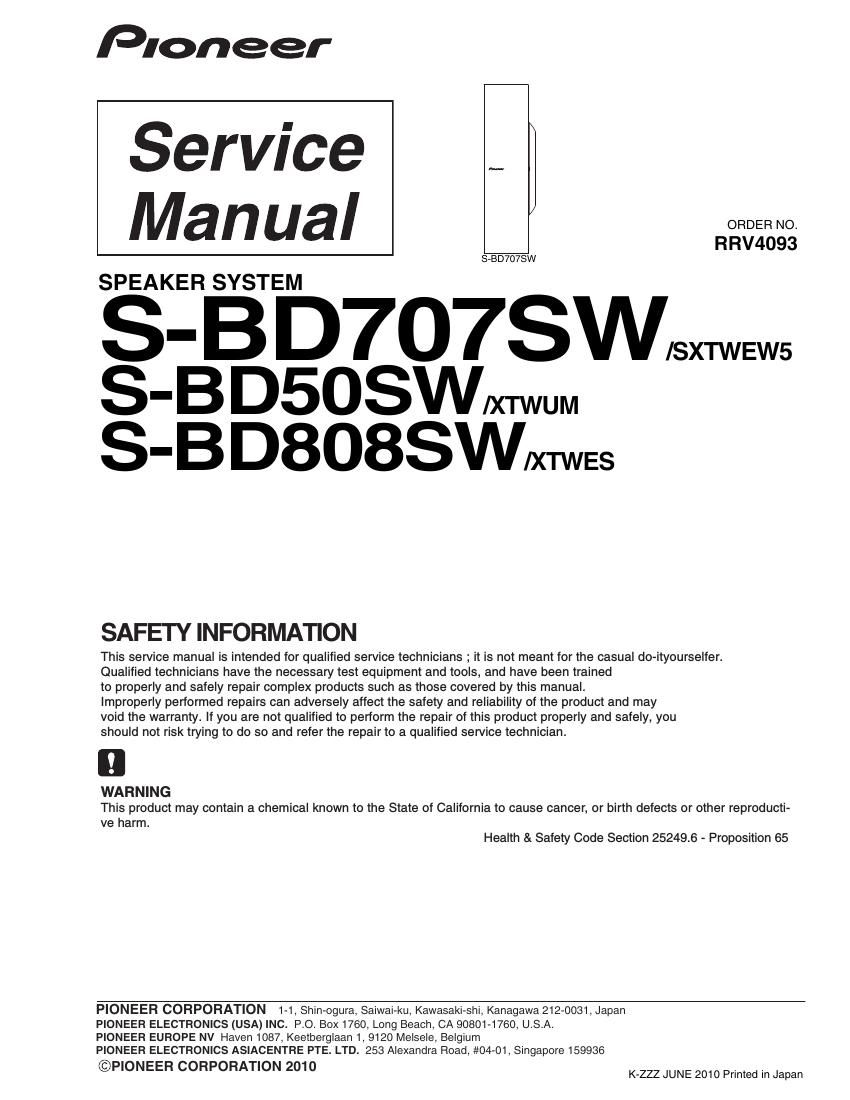

Pioneer sbd 808 sw service manual
This is the 5 pages manual for pioneer sbd 808 sw service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer sbd 808 sw service manual (Ocr-read)
Page 1
S-BD707SW 2 1234 1 234 C D F A B E 1. REASSEMBLY AND DISASSEMBLY PRECAUTIONS 1.1 SUBWOOFER The grille assy is installed on the cabinet with white school glue for wood and press-in fitting. In order to remove the Grille Assy, please insert a flat-head screw driver from the gap under the grille assy to open. When you install the grille assy on the cabinet again, please apply white school glue for wood on 6 lo- cations of grille assy and conduct press-in fitting. Woofer unit is secured with 4 screws from outside. Please re- move the screws and interior cord, and pull out the unit from the cabinet. When you install the woofer unit again, please make the terminal of unit downward. The baffle is installed on the cabinet with white school glue for wood and press-in fitti- ng. In order to remove the baffle, please insert a flat-head screw driver from the gap under the baffle to open. When you install the baffle on the cabinet again, please apply white school glue for wood on 8 locations of baffle and conduct press-in fitting. Please install Grille Assy or Baffle in the cabinet applying the white school glue for wood to the marked section.Caution point of marked section Please do not wipe resin black glossy surface with cloth strongly becaus\ e the surface is easy to be scratched. Please pay attention to handle resin black glossy surface. Cabinet Baffle Grille Assy
Page 2
S-BD707SW3 5 678 56 7 8 C D F A B E 2. EXPLODED VIEWS AND PARTS LIST Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of\ the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: 2.1 PACKING 1 4 3 2 2 PACKING Parts List Mark No. Description Part No. NSP 1 Accessories Set SME3951 1-1 Speaker Wire (SW) SDS1223 1-2 Non Skid Pad SEP6042 1-3 Polyethylene Bag SHL1312 2 Protector (B) SHA2656 3 Protection Sheet SHC1895 4 Packing Case(S-BD707SW) SHG2867 Packing Case(S-BD50SW) SHG2876 Packing Case(S-BD808SW) SHG2879
