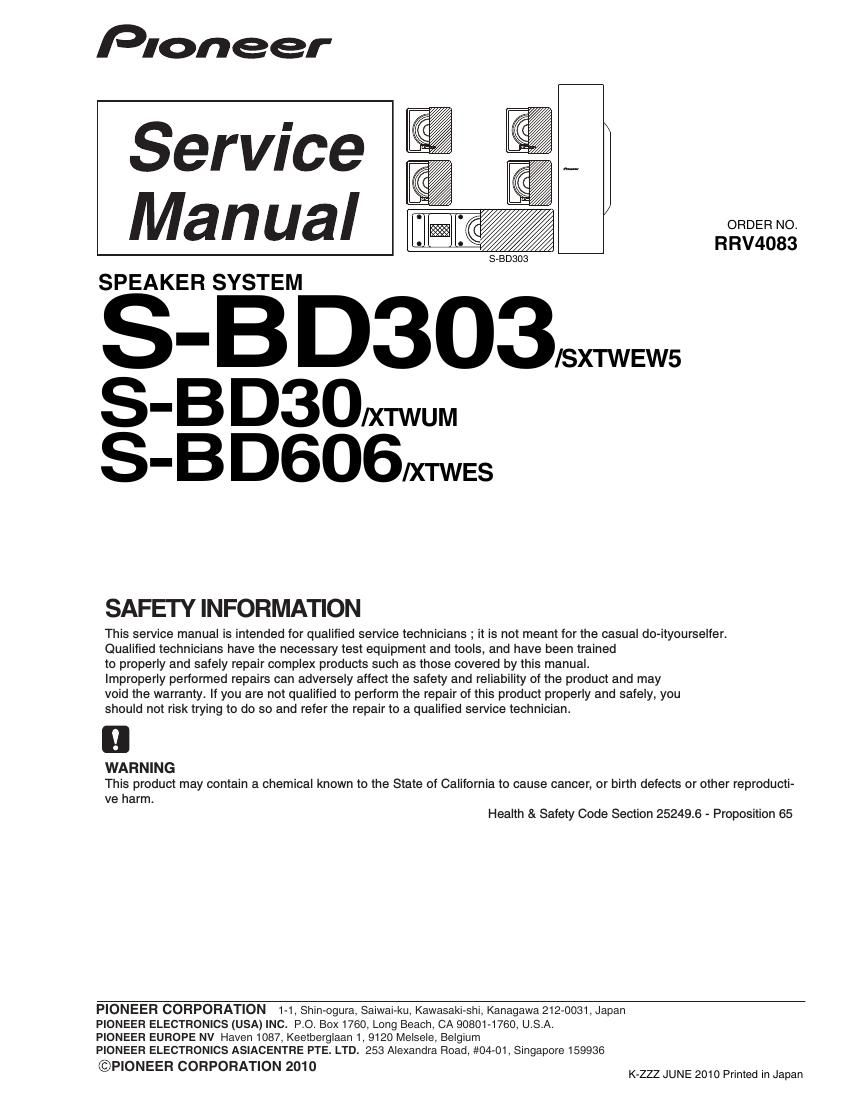

Pioneer sbd 303 service manual
This is the 8 pages manual for pioneer sbd 303 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer sbd 303 service manual (Ocr-read)
Page 1
S-BD303 2 1234 1 234 C D F A B E 1.1 FRONT SPEAKER The grille is attached to the cabinet by 4 external screws. To detach it, unfasten those screws. The speaker unit is attached together with the grille assy to the cabinet by 4 external screws. To detach it, first unfasten those screws. Next remove the cabinet. Then remove the cable. When attaching it, face its terrminal dow- nward. 1.2 CENTER SPEAKER GRILLE The grille is attached to the cabinet with the adhesive double coated tape by press-fitting. Detach by pulling it toward you. WOOFER The woofer is attached to the baffle by 4 internal screws. To detach it, first remove the grille. Next unfasten 8 scews of ba- ffle. Then remove the cabinet and cable. When you install speaker unit on cabinet again, please make the terminal of speaker unit downward. Please turn up the terminal of speaker unit not to touch on the cabinet. 1.3 SURROUND SPEAKER The grille is attached to the cabinet by 4 external screws. To detach it, unfasten those screws. The speaker unit is attached together with the grille assy to the cabinet by 4 external screws. To detach it, first unfasten those screws. Next remove the cabinet. Then remove the cable. When attaching it, face its terrminal downward. 1.4 SUBWOOFER The grille assy is installed on the cabinet with white school glue for wood and press-in fitting. In order to remove the Grille Assy, please insert a flat-head screw driver from the gap under the grille assy to open. When you install the grille assy on the cabinet again, please apply white school glue for wood on 6 lo- cations of grille assy and conduct press-in fitting. Woofer unit is secured with 4 screws from outside. Please re- move the screws and interior cord, and pull out the unit from the cabinet. When you install the woofer unit again, please make the terminal of unit downward. The baffle is installed on the cabinet with white school glue for wood and press-in fitti- ng. In order to remove the baffle, please insert a flat-head screw driver from the gap under the baffle to open. When you install the baffle on the cabinet again, please apply white school glue for wood on 8 locations of baffle and conduct press-in fitting. Please install Grille Assy or Baffle in the cabinet applying the white school glue for wood to the marked section.Caution point of marked section Please do not wipe resin black glossy surface with cloth strongly becaus\ e the surface is easy to be scratched. Please pay attention to handle resin black glossy surface. Cabinet Baffle Grille Assy 1. REASSEMBLY AND DISASSEMBLY PRECAUTIONS
Page 2
S-BD3033 5 678 56 7 8 C D F A B E 2. EXPLODED VIEWS AND PARTS LIST Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of\ the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: 2.1 PACKING 1 4 5 6 7 7 8 3 2 PACKING Parts List Mark No. Description Part No. NSP 1 Accessory Assy SME3953 1-1 Speaker Wire SDS6064 1-2 Speaker Wire SDS6065 1-3 Speaker Wire SDS6066 1-4 Speaker Wire (FR) SDS1220 1-5 Speaker Wire (FL) SDS1221 1-6 Speaker Wire (SW) SDS1223 1-7 Non Skid Pads SEP1388 1-8 Non Skid Pad SEP6042 1-9 Polyethylene Bag SHL1251 Mark No. Description Part No. 2 Protector (B) SHA2656 3 Protector (M) SHA2657 4 Protector (T) SHA2658 5 Protection Sheet SHC1895 6 Packing Case(S-BD303) SHG2868 Packing Case(S-BD30) SHG2875 Packing Case(S-BD606) SHG2878 7 Protection Sheet SHC1898 8 Protection Sheet SHC1899
