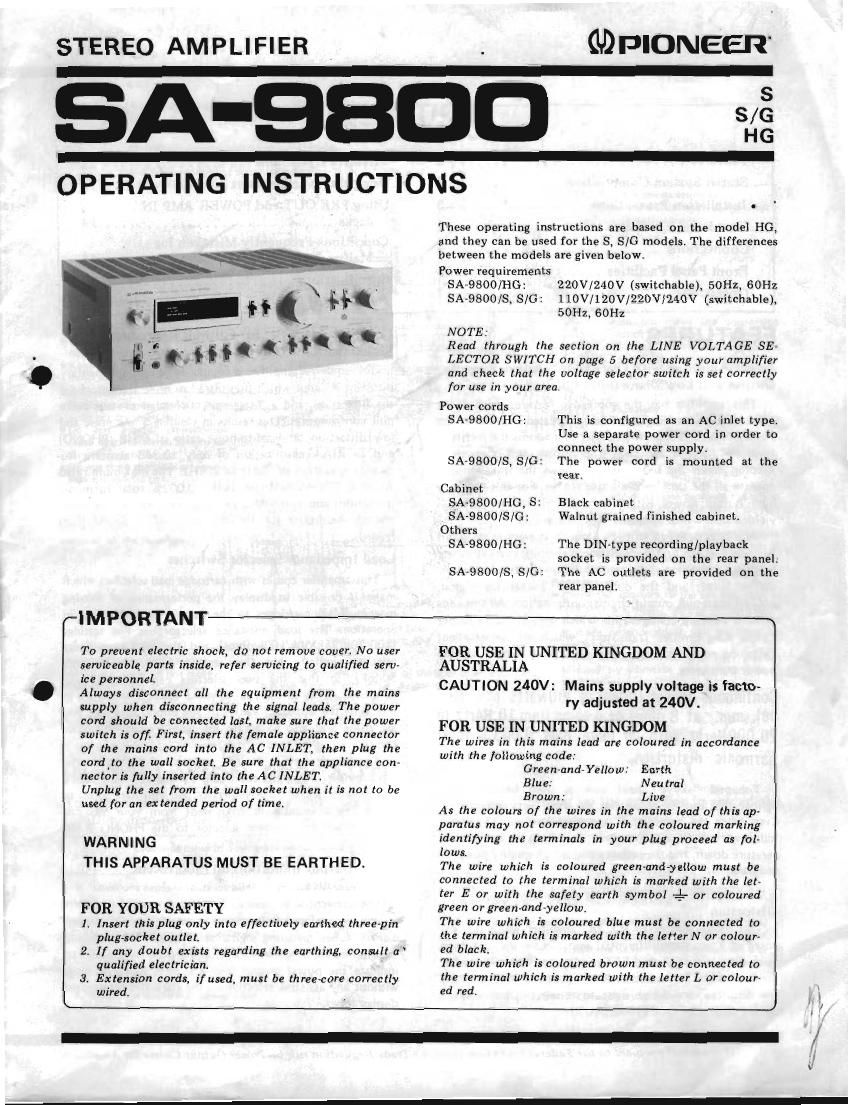

STEREO AMPLIFIER
. GDPIONEFJ!
S
A-QBDD
HG
OPERATING INSTRUCTIONS
W
These operating instructions are based on the model HG,
and they can be used for the S, SIG models. The differences
between the models are given below.
Power requirements
SA-QBOO/HG:
SA-9800/S. S/G:
220V/24DV (switchable), 50m, 60Hz
110V/120V/220V/240V (switchable),
50Hz, 60Hz
NOTE:
Read through the section on the LINE VOLTAGE SE-
LECTOR SWITCH on page 5 before using your amplifier
and check that the voltage selector switch is set correctly
for use in your area.
Power cords
SA-BSOOIHG: This is configured as an AC inlet type,
Use a separate power cord in order to
connect the power supply.
The power cord is mounted at the
rear.
SArQBOO/S, S/G:
Cabinet
SA-9800/HG, S:
SA-9800/SIG:
Others
SA~98OOIHG:
Black cabinet
Walnut grained finished cabinet.
The DIN-type recording/playback
socket is provided on the rear panel;
The AC outlets are provided on the
rear panels
SA-9800/S, S/G:
(-IMPORTANT
To prevent electric shock, do not remove cover, No user
serviceable parts inside, refer sen/icing to qualified serv-
ice personnel.
Always disconnect all the equipment from the mains
supply when disconnecting the signal leads. The power
card should be connected last, make sure that the power
switch is off. First, insert the female appliance connector
of the mains cord into the AC INLET, then plug the
cord'to the wall socket, Be sure that the appliance con~
nector is fully inserted into theAC INLET.
Unplug the set from the wall socket when it is not to be
used for an ex tended period of time.
WARNING
THIS APPARATUS MUST BE EARTHED.
FOR YOUR SAFETY
1. Insert this plug only into effectively earthed three-pin
plug-socket outlet.
qualified electrician.
3. Extension cords, if used, must be threecore correctly
wired.
2. If any doubt exists regarding the earthing, conmlt 0
FOR USE IN UNITED KINGDOM AND
AUSTRALIA
CAUTION 240V: Mains supply voltage is facto-
ry adjusted at 240V.
FOR USE IN UNITED KINGDOM
The wires in this mains lead are coloured in accordance
with the following code:
Greennnd-Yellow: Earth
Blue: Neutral
Brown: Live
As the colours of the wires in the mains lead of this ap-
paratus may not correspond with the coloured marking
identifying the terminals in your plug proceed as fol»
lows.
The wire which is coloured green-and-yellow must be
connected to the terminal which is marked with the let-
ter E or with the safety earth symbol .4:- or coloured
green or greenand-yellow.
The wire which is coloured blue must be connected to
the terminal which is marked with the letter N or colour-
ed black.
The wire which is coloured brown must be connected to
the terminal which is marked with the letter L or colour
ed reds
Page 2
CONTENTS
Features ........................... 2 Effective Operations .................. 12
Stereo System Composition ............ 3 Using the Tape Decks ................. 13
Installation Precautions ............... 3 Using PRE OUT and POWER AMP IN
Rear Panel Facilities ................... 4 JaCks """""""""""""" 14
. Conditions Frequently Mistaken for
Connections . . 1 ................... 5 Malfunctions .................... 15
Front Fanel Faculties ................. 8 Specifications ..................... 16
Operations ------------------------- 11 Schematic Diagram .............. Insertion
FEATURES
Power Amplifier with Ultra-wide-frequency-band
Output and Low Distortion
This amplifier has the impressive feature which is the
NSA (Non-Switching-Amplifier), created specially by
Pioneer. This is a type of amplifier that adopts the merits of
both the class A and class B amplifiers, and it excels in
keeping down the heat loss and allows the transistors to
operate all the time in the active region. For this reason, a
high output power with a very low distortion factor is
yielded all the way up to the high frequencies,
Also it is designed to pack a punch at every stage - this
is evident in the first smge differential input, current mirror
load; the predriver stage emitter follower drive, constant-
current load; and the output stage 2-stage Darlington,
parallel push»pull output circuit configuration. All this adds
up to a DC amp configuration which uses SL RETs (Super
Linear Ring Emitter Transistors), which have an excellent
switching response in the high frequency range, for the
power transistors.
Continuous Power Output is 100watts*per chan~
nel, min, at 8 ohms or 4 ohms from 10 Hertz to
20,000Hertz with no more than 0.005% total
harmonic distortion
T-shaped skyve heat sink is used because it is
lightweight and it dissipates the heat very effectively.
Even when the amplifier is operating continuously under
full power conditions, these heat sinks keep the rise in tern»
perature down, and they ensure that a high-quality power is
provided.
Flat Amplifier with High S/N Ratio and Low
Distortion
This model adopts an ICL DC amplifier which is com
posed of a two-stage differential amplifier for the first stage
using ultra-low-noise dual FETs and an emitter follower for
the final stage. This construction is successful in achieving a
low distortion and a high signa|~to noise ratio, and in main-
taining an S/N ratio of l lOdB (AUX),
Equalizer Amplifier for Faithful Reproduction of
Sound from Records
The equalizer amplifier is composed of a complementary .
differential input which uses ultra-low-noise transistors for
the first stage, and a 3rstage direct-coupled all-stage push-
pull configuration This results in yielding a low noise and
low distortion, 3 signal-to-noise ratio of 90dB (PHONO)
and an RIAA equalization of only :0.2dB across a fre-
quency spectrum of 20Hz to 20kHz. The maximum rated
input is ZSOmV/MM (at lkHz, 0.002% total harmonic
distortion) and lOmV/MC, proving that there is more than
enough headroom for the reproduction of sound from
records.
Load Impedance Selector Switches
This amplifier comes with cartridge load selectors which
make it possible to display the performance of moving
magnet (MM) cartridges to the full for sophistication in
operation. The load resistance selector has five settings
(lOO/lOk/ZSk/SOk/lOOk ohms) and the load capacitance
selector similarly has five settings (100/200/300/400/
SOOpF), so that the two selectors can be used inde-
pendently. They allow you to make settings which are in
line with the optimum values of the phono cartridge you
are using and also to create the sound quality of your
choice.
Another feature is the MC position which means you
can connect a moving coil (MC) cartridge with a subtle
and delicate sound quality directly. All you have to do to
derive the maximum in enjoyment from your MC car-
tridge is set the function selector to the PHONO 2 MC
position.
Power Output Indication on Fluorescent
Display Tubes
The conventional needle-type of power output meters
have been replaced with the more unto-date fluorescent
display tubes featuring digital technology, They employ
logarithmic compression circuits and a peak hold circuit to
indicate the power output over a 0.3mW to 100W range
without any assisting selection on the attractive fluorescent
display tubes
2 * Measured pursuant to the Federal Trade Commissions Trade Regulation rule on Power Output Claims for Amplifiers.
