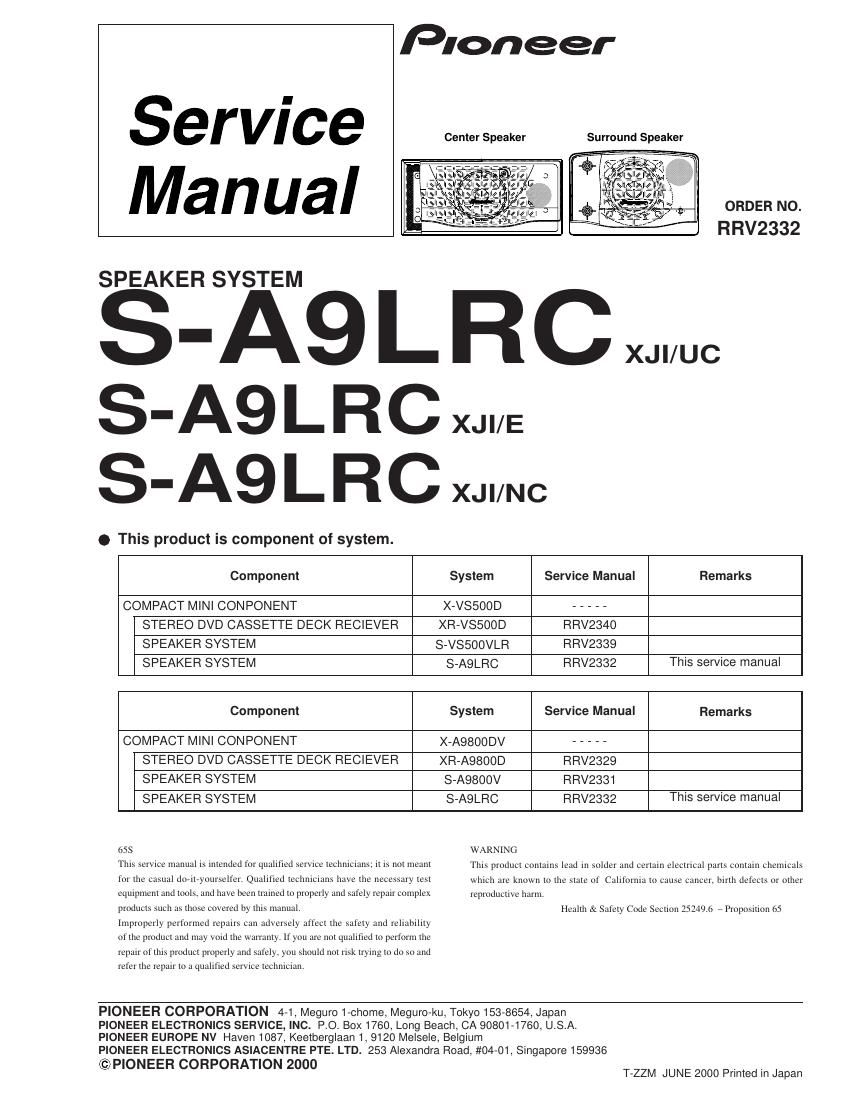

pioneer sa 9 lrc service manual

Extracted text from pioneer sa 9 lrc service manual (Ocr-read)


Page 1

2 S-A9LRC Mark No. Description Part No. Connecting Cord (SDF1087) SCHEMATIC DIAGRAM For Packing Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST Mark No. Description Part No. NSP CS ASSY (Center) SMW1573 Speaker D87DU54-52F Connecting Cord SDF1087 Gasket (Baffle Wide) SEC1469 Gasket (Baffle Height) SEC1470 Grille ASSY SMG1688 NSP Badge 38 SAM1442 NSP Grille Cloth SAS1477 NSP Grille Frame SMH1012 NSP Cabinet SMM1896 NSP Baffle SNK2465 Screw (for Speaker) TTZ40P080FMC NSP CS ASSY (Surround) SMW1574 Screw (for Baffle) BYC40P130FZK Speaker D87DC54-57F Connecting Cord SDF1068 NSP Cover SES1018 Grille ASSY SMG1690 NSP Badge 38 SAM1442 NSP Grille Cloth SAS1478 NSP Baffle Board SNK2321 NSP Cabinet SNK2498 Screw (for Speaker) TTZ40P080FMC Ö For XJI/UC Type NSP Stamped Model Label (Center) SME3035 NSP Model Label (Center) SAN2831 NSP Stamped Model Label (Surround) SME3036 NSP Model Label (Surround) SAN2832 Ö For XJI/E Type NSP Stamped Model Label (Center) SME3037 NSP Model Label (Center) SAN2833 NSP Stamped Model Label (Surround) SME3038 NSP Model Label (Surround) SAN2834 Ö For XJI/NC Type NSP Stamped Model Label (Center) SME3090 NSP Model Label (Center) SAN2881 NSP Stamped Model Label (Surround) SME3091 NSP Model Label (Surround) SAN2882Top Protector SHA2215 Bottom Protector SHA2216 Protection Mat S4 SHC1588 NSP Polyethylene Bag S1 SHL1109 Ö For XJI/UC Type Packing Case SHG2270 Master Carton SHP1082 Ö For XJI/E Type Packing Case SHG2271 Master Carton SHP1083 Ö For XJI/NC Type Packing Case SHG2310 Master Carton SHP1084 Connecting Cord (SDF1068) Speaker INPUT Black/White Black Center Speaker INPUT Gray/Black Gray Surround

Page 2

3 S-A9LRC PRODUCT APPEARANCE No. 9 8 7 6 5 4 3 2 1 Part name Model Label (Center) Connection Cord Cabinet Speaker Grille Assy Screw Baffle Gasket Gasket Num. 1 1 1 1 1 4 1 1 1 Remarks TTZ40P080FMC SEC1469 SEC1470 No. 8 7 6 5 4 3 2 1 Part name Model Label (Surround) Connection Cord Screw Screw Cover Speaker Grille Assy Cabinet Num. 1 1 4 4 1 1 1 1 Remarks TTZ40P080FMC BYC40P130FZK 1 23 4567 8 9 127.5 127 270271 100 (156) 1 2 34 56 7 127 194(96) 8 Surround Speaker Center Speaker Note * The baffle is attached to the cabinet by its bosses applied with adhesive. The baffle cannot be detached. * * Note * The cover is attached to the cabinet with adhesive.
