pioneer sa 780 vlr service manual

Extracted text from pioneer sa 780 vlr service manual (Ocr-read)

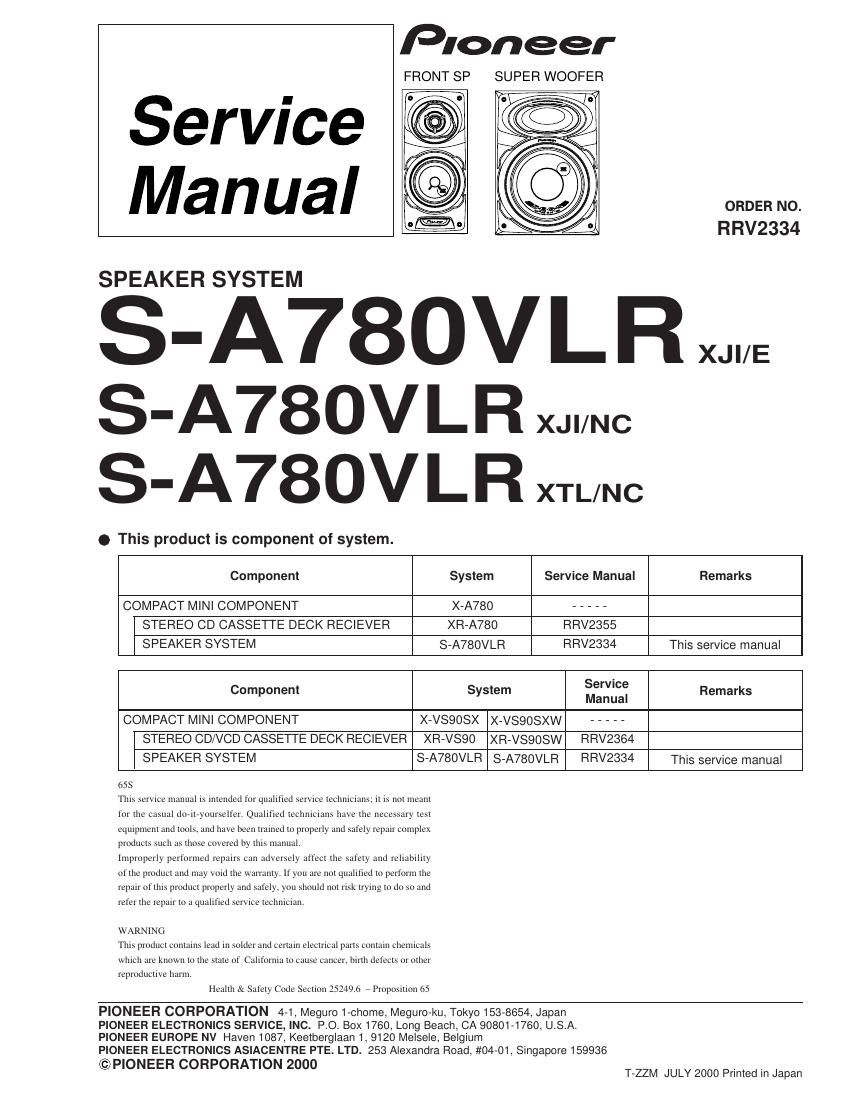

Page 1

2 S-A780-VLR Mark No. Description Part No. Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST Mark No. Description Part No. NSP CS ASSY (Front SP) SMW1577 NSP Cabinet SMM1892 Network ASSY SWN1653 Input Terminal KKX1014 Non Skid Pad SEC1374 Gasket (Baffle Height) SEC1437 Gasket (Baffle Wide) SEC1468 NSP Stamped Model Label SME3027 NSP Model Label SAN2825 NSP Acoustic Absorbent SMV1988 Cosmetic Baffle ASSY SXB1414 NSP Punching Net SNC1184 NSP Cosmetic Baffle SNK2468 Speaker (Woofer) W10DC61-53H Speaker(Mid-range) E52AP39-58F Screw (for TW/MID) BPZ40P080FMC Screw (for Network ASSY) BYC40P250FZB Tapping Screw (for Cos. Baffle)SBA1162 NSP Staple 80/8 BEA ZMA-8008B Top Protector SHA2221 Bottom Protector SHA2222 NSP Polyethylene Bag S4 SHL1258 NSP CS ASSY (Super Woofer) SMW1578 NSP Cabinet SMM1893 Network ASSY SWN1654 Input Terminal KKX1016 Non Skid Pad SEC1374 Gasket (Baffle Wide) SEC1477 Gasket (Baffle Height) SEC1478 NSP Stamped Model Label SME3028 NSP Model Label SAN2826 NSP Acoustic Absorbent SMV1886 Cosmetic Baffle ASSY SXB1415 NSP Duct SMR1317 NSP Cosmetic Baffle SNK2469 Cosmetic Ring ASSY SXB1416 NSP Punching Net SNC1183 NSP Cosmetic Ring SNK2470 Speaker B18LU86-51F Screw (for WF,Cos. Ring ASSY)BPZ40P160FMC Screw (for Network ASSY) BYC40P300FZB Tapping Screw (for Cos. Baffle)SBA1162 NSP Staple 80/8 BEA ZMA-8008B Top Protector SHA2223 Bottom Protector SHA2224 NSP Polyethylene Bag S5 SHL1212 For Packing Speaker Cord SDS1083 Speaker Cord SDS1084 Packing Case SHG2266 For XJI/E Type NSP CS ASSY (Front SP) SMW1579 NSP Cabinet SMM1892 Network ASSY SWN1653 Input Terminal KKX1014 Non Skid Pad SEC1374 Gasket (Baffle Height) SEC1437 Gasket (Baffle Wide) SEC1468 NSP Stamped Model Label SME3046 NSP Model Label SAN2841 NSP Acoustic Absorbent SMV1988 Cosmetic Baffle ASSY SXB1414 NSP Punching Net SNC1184 NSP Cosmetic Baffle SNK2468 Speaker (Woofer) W10DC61-53H Speaker (Mid-range) E52AP39-58F Screw (for TW/MID) BPZ40P080FMC Screw (for Network ASSY) BYC40P250FZB Tapping Screw (for Cos. Baffle)SBA1162 NSP Staple 80/8 BEA ZMA-8008B Top Protector SHA2221 Bottom Protector SHA2222 NSP Polyethylene Bag S4 SHL1258 NSP CS ASSY (Super Woofer) SMW1580 NSP Cabinet SMM1893 Network ASSY SWN1654 Input Terminal KKX1016 Non Skid Pad SEC1374 Gasket (Baffle Wide) SEC1477 Gasket (Baffle Height) SEC1478 NSP Stamped Model Label SME3047 NSP Model Label SAN2842 NSP Acoustic Absorbent SMV1886 Cosmetic Baffle ASSY SXB1415 NSP Duct SMR1317 NSP Cosmetic Baffle SNK2469 Cosmetic Ring ASSY SXB1416 NSP Punching Net SNC1183 NSP Cosmetic Ring SNK2470 Speaker B18LU86-51F Screw (for WF,Cos. Ring ASSY)BPZ40P160FMC Screw (for Network ASSY) BYC40P300FZB Tapping Screw (for Cos. Baffle)SBA1162 NSP Staple 80/8 BEA ZMA-8008B Top Protector SHA2223 Bottom Protector SHA2224 NSP Polyethylene Bag S5 SHL1212 For Packing Speaker Cord SDS1083 Speaker Cord SDS1084 Packing Case SHG2274 For XJI/NC Type

Page 2

3 S-A780VLR Mark No. Description Part No. For XTL/NC Type NSP CS ASSY (Front SP) SMW1611 NSP Cabinet SMM1916 Network ASSY SWN1653 Input Terminal KKX1014 Non Skid Pad SEC1416 Gasket (Baffle Height) SEC1447 Gasket (Baffle Wide) SEC1502 NSP Stamped Model Label SME3101 NSP Model Label SAN2892 NSP Acoustic Absorbent SMV2011 Cosmetic Baffle ASSY SXB1414 NSP Punching Net SNC1184 NSP Cosmetic Baffle SNK2468 Speaker (Woofer) W10DC61-53H Speaker(Mid-range) E52AP39-58F Screw (for TW/MID) BPZ40P080FMC Screw (for Network ASSY)BYC40P250FZB Tapping Screw (for Cos. Baffle)SBA1162 NSP Staple 80/8 BEA ZMA-8008B Top Protector SHA2247 Bottom Protector SHA2248 Protection Sheet SHC1730 NSP Polyethylene Bag S4 SHL1268 NSP CS ASSY (Super Woofer) SMW1612 NSP Cabinet SMM1917 Network ASSY SWN1654 Input Terminal KKX1016 Non Skid Pad SEC1416 Gasket (Baffle Wide) SEC1503 Gasket (Baffle Height) SEC1504 NSP Stamped Model Label SME3102 NSP Model Label SAN2893 NSP Acoustic Absorbent SMV1916 Cosmetic Baffle ASSY SXB1415 NSP Duct SMR1317 NSP Cosmetic Baffle SNK2469 Cosmetic Ring ASSY SXB1416 NSP Punching Net SNC1183 NSP Cosmetic Ring SNK2470 Speaker B18LU86-51F Screw (for WF,Cos. Ring ASSY)BPZ40P160FMC Screw (for Network ASSY) BYC40P300FZB Tapping Screw (for Cos. Baffle)SBA1162 NSP Staple 80/8 BEA ZMA-8008B Top Protector SHA2249 Bottom Protector SHA2250 Protection Sheet SHC1730 NSP Polyethylene Bag S5 SHL1230 For Packing Speaker Cord SDS1083 Speaker Cord SDS1084 Packing Case SHG2312 Network ASSY (SWN1653) for Front SP SCHEMATIC DIAGRAM Network ASSY (SWN1654) for Super Woofer Mid-Range I N Red Red BlackGreen White White Tweeter 1.8µF/63V 0.39mH 82µF/50V Woofer I NRed BlackBlue White 1.2mH
