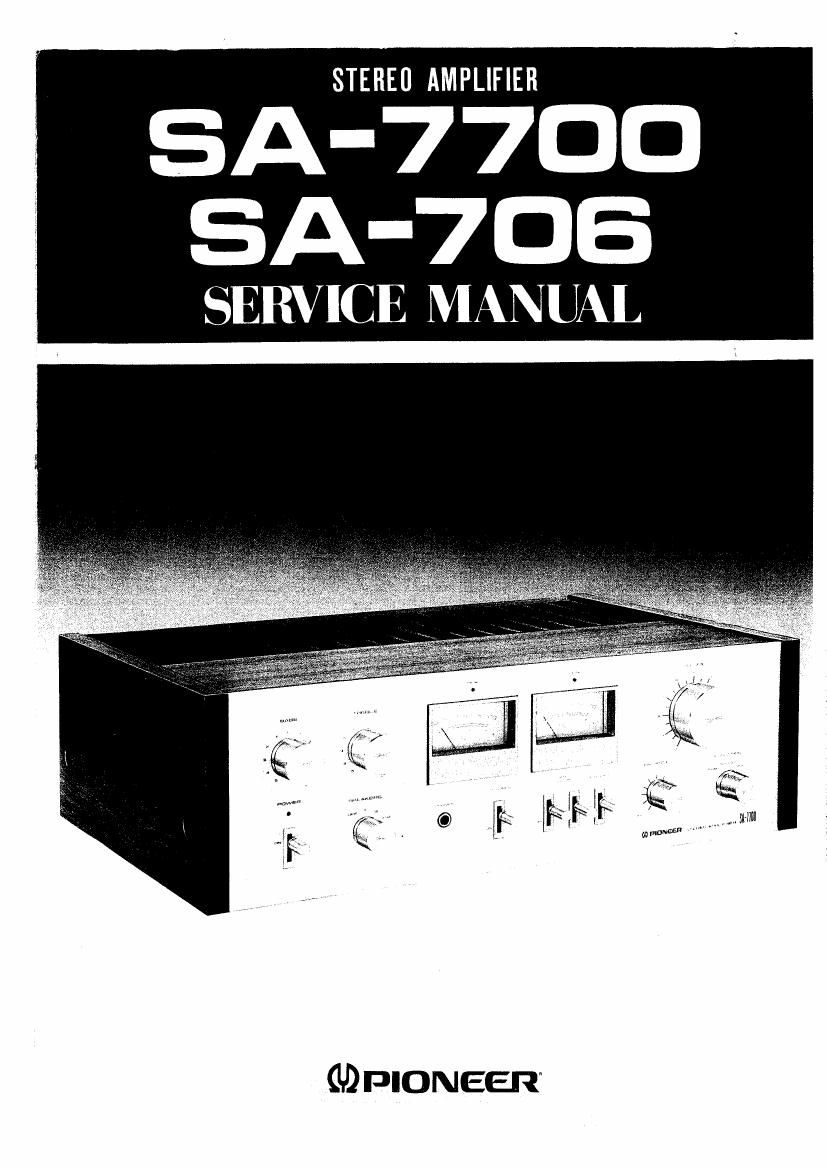

Pioneer sa 7700 service manual
This is the 43 pages manual for pioneer sa 7700 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer sa 7700 service manual (Ocr-read)
Page 2
EDA-770°
Both Model SA-7700 and Model SA-706 have the same basic performance. The major
difference is in appearance, Model SA-7700 being fitted with wooden side and tap panels,
while Model SA~706 employs metal. The following table is displayed on the SA-7700 and
the SA-706.
MODE L SA-7700
Type Voltans Remarks
KU 120V only U.S.A. model
KC 120V only Canada model
MODE L SAA706
Type Voltage Remarks
HG 220V and 240V (Switchable) Europe or Oceania model
5 110V, 120V, 220V and 240V (Switchable) General export model
S/G 110V, 120V, 220V and 240V (Swimhflble) US. Military model
This service manual is applicable to the SA-7700/KU. When repairing the SA-706, please see
the additional service manual (pp. 35-49). When repairing the SA-7700/KC, please see
page 34.
