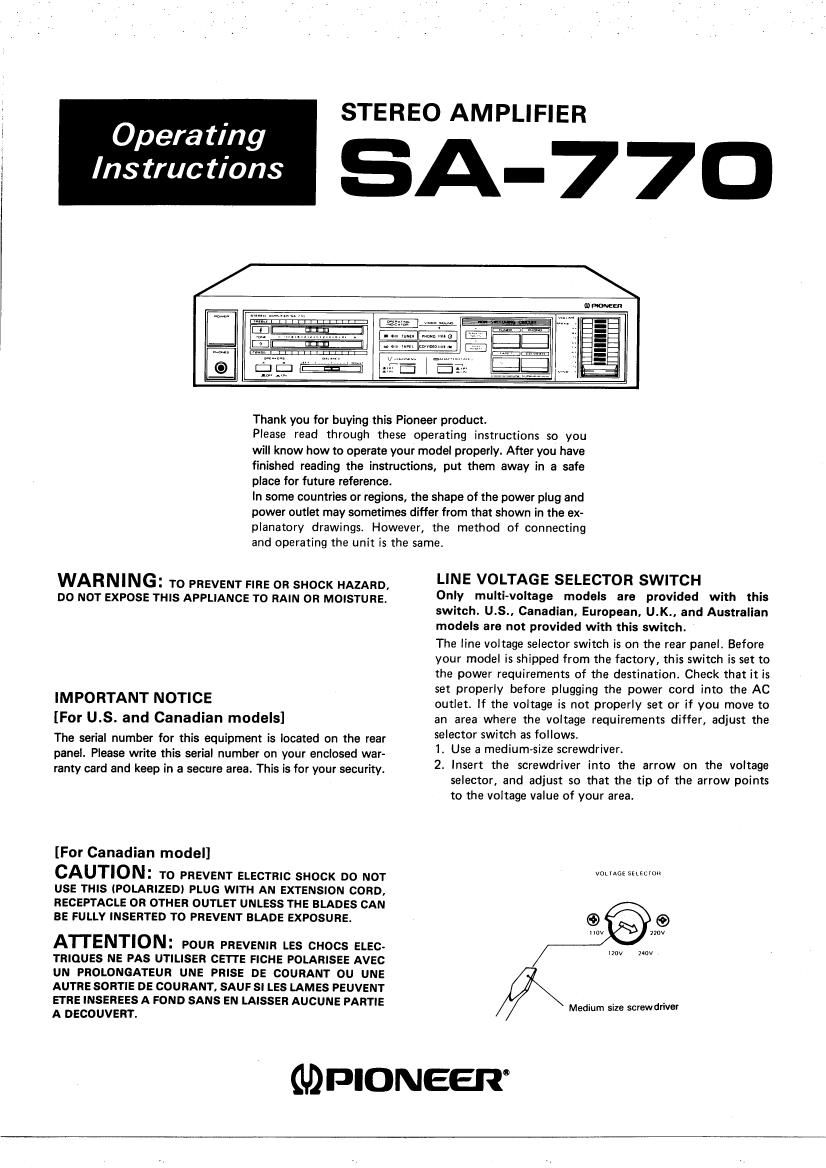

Opera ting

Instructions

STEREO AMPLIFIER

SA-77O

Thank you for buying this Pioneer product.

Please read through these operating instructions so you
will know how to operate your model properly. After you have
finished reading the instructions, put them away in a safe
place for future reference.

In some countries or regions, the shape of the power plug and
power outlet may sometimes differ from that shown in the ex-
planatory drawings. However, the method of connecting

and operating the unit is the same,

WARNING: TO PREVENT FIRE on SHOCK HAZARD,
DO NOT EXPOSE THIs APPLIANcE To RAIN 0R MOISTURE.

IMPORTANT NOTICE
[For U.S. and Canadian models]

The serial number for this equipment is located on the rear
panel. Please write this serial number on your enclosed war~
ranty card and keep in a secure area. This is for your security.

[For Canadian model]

CAUTION: TO PREVENT ELECTRIC SHOCK DO NOT
USE THIS (POLARIZED) PLUG WITH AN EXTENSION CORD,
RECEFTACLE OR OTHER OUTLET UNLEss THE BLADES CAN
BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.

ATTENTION: POUR PREVENIR LEs cnocs ELEC~
TRIOUEs NE PAS UTILISER CETI'E FICHE POLARISEE AVEc
UN PROLONGATEUR UNE PRISE DE COURANT OU UNE
AUTRE SORTIE DE COURANT. SAUF sI LEs LAMES PEUVENT
ETRE msEREEs A FOND SANS EN LAISSER AUCUNE PARTIE
A DEcOUVERT.

LINE VOLTAGE SELECTOR SWITCH

Only multi-voltage models are provided with this

switch. U.S.. Canadian. European, U.K., and Australian

models are not provided with this switch.

The line voltage selector switch is on the rear panel. Before

your model is shipped from the factory, this switch is set to

the power requirements of the destination. Check that it is

set properly before plugging the power cord into the AC

outlet. If the voltage is not properly set or if you move to

an area where the voltage requirements differ, adjust the

selector switch as follows.

1. Use a medium-size screwdriver.

2. insert the screwdriver into the arrow On the voltage
selector, and adjust so that the tip of the arrow points
to the voltage value of your area.

valuassnzcmn

Medium Size screwdriver

GDPIONEER
