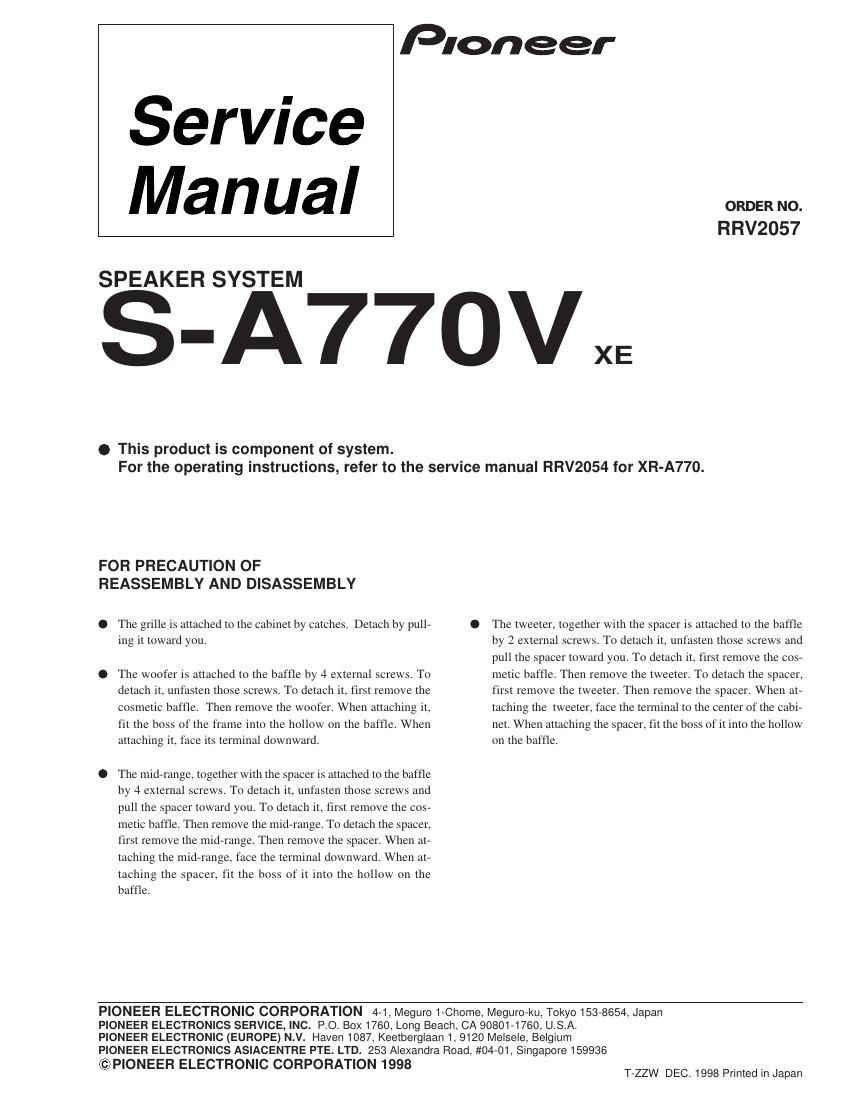

Pioneer sa 770 vx service manual
This is the 2 pages manual for pioneer sa 770 vx service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer sa 770 vx service manual (Ocr-read)
Page 1
2Mark No. Description Part No. Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST Mark No. Description Part No. S-A770V For Packing Speaker Cord (2.0m) FRDF-021 Non-skid Pad FREC-021 Top Protector FRHA-156 Bottom Protector FRHA-153 Protection Mat S3 FRHC-028 Packing Case FRHG-238 NSP Cabinet (L) FRMM-184 NSP Cabinet (R) FRMM-185 Grille (L) FRMG-160 NSP Grille Cloth FRAS-099 NSP Grille Frame (L) FRNK-305 Grille (R) FRMG-161 NSP Grille Cloth FRAS-099 NSP Grille Frame (R) FRNK-306 Grille (Woofer) FRMG-159 NSP Grille Cloth FRAS-098 NSP Grille Frame (Woofer) FRNK-304 Network ASSY FRWN-139 NSP Label Back (L) FRAN-260 NSP Label Back (R) FRAN-261 Input Terminal Board FRKX-016 NSP Acoustic Absorbent FRMV-025 Spacer (for Mid-range) FRNK-246 NSP Spacer (for Tweeter) FRNK-307 Duct FRNK-315 Cosmetic Baffle (L) FRNK-344 Cosmetic Baffle (R) FRNK-345 Speaker (Woofer) P15EN79-52F Speaker (Mid-range) D10DC65-52D Speaker (Tweeter) E52AP39-51C Screw (for Woofer) BYC40P200FMC Screw (for Mid-range, Tweeter) RWC41P450FMC SCHEMATIC DIAGRAM Network ASSY (FRWN-139) Mid-range 3.9µF Tweeter INPUT Black Green White WhiteBlue White Gray Black Woofer INPUTBlue Yellow Woofer Tweeter
