Pioneer sa 770 v service manual
This is the 2 pages manual for pioneer sa 770 v service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

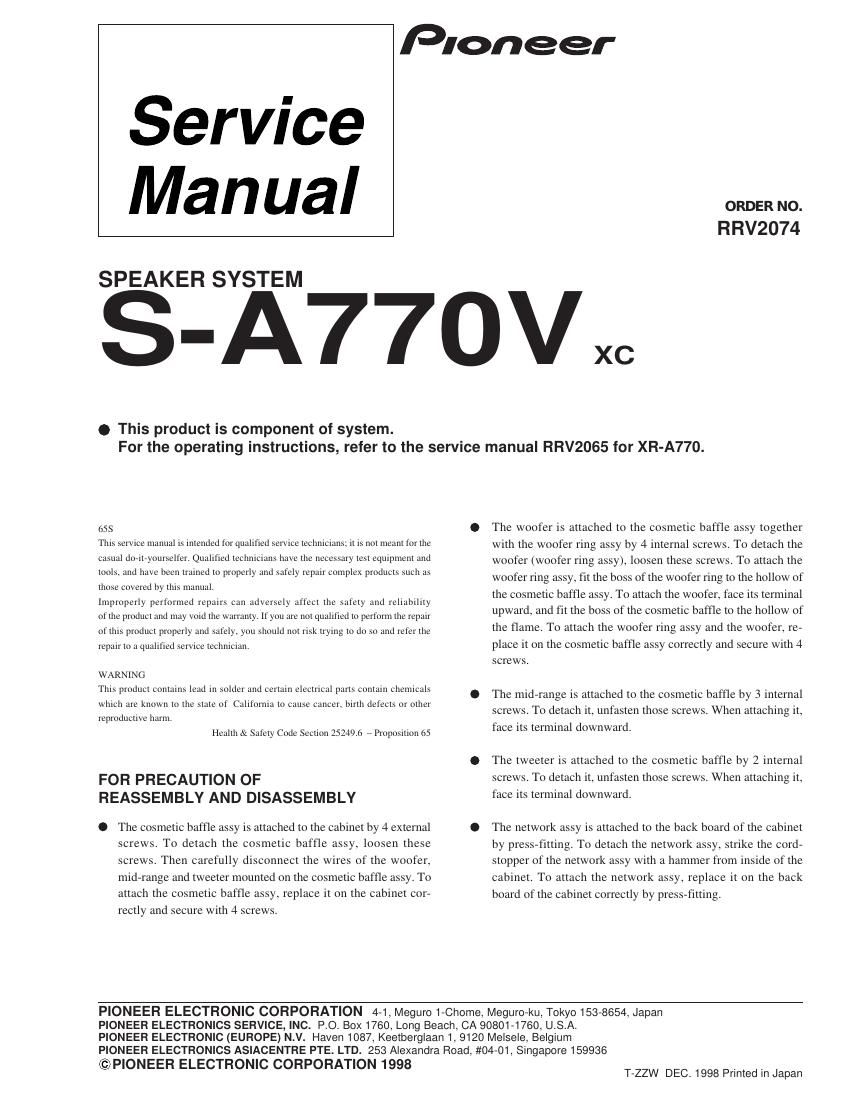

Extracted text from pioneer sa 770 v service manual (Ocr-read)
Page 1
2 NSP Cabinet 264264 Network ASSY 264279 CS Cord 264284 Non Skid Pad 254024 Gasket (for Baffle width) 254019 Gasket (for Baffle height) 263994 NSP Stamped Model Label (L) SME2896 NSP Model Label (L) 264299 NSP Stamped Model Label (R) SME2897 NSP Model Label (R) 264308 NSP Acoustic Absorbent 253774 Woofer Ring ASSY 264031 NSP Woofer Ring SNK2293 NSP Cosmetic Ring ASSY SXB1324 NSP Punching Net SNC1160 NSP Cosmetic Ring SNK2292 Baffle ASSY (L) 264046 NSP Punching Net (L) SNC1163 NSP Cosmetic Baffle (L) SNK2309 NSP Duct SNK2311 Baffle ASSY (R) 264051 NSP Punching Net (R) SNC1164 NSP Cosmetic Baffle (R) SNK2310 NSP Duct SNK2311 Mark No. Description Part No. Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST Mark No. Description Part No. S-A770V Speaker (Woofer) P16EN79-51F Speaker (Mid-range) FD87CC50-51F Speaker (Tweeter) E52AP39-55F Screw (for Tweeter) BPZ30P080FMC Screw (for Mid-range) BPZ40P100FMC Screw (for Woofer Ring ASSY) BPZ40P300FMC Tapping Screw (for Baffle) 264115 Top Protector 264071 Bottom Protector 264086 Packing Case 264259 NSP Polyethylene Bag S5 264244 For Packing Woofer INPUT Red Black Red Black SCHEMATIC DIAGRAM Network ASSY (264279) Mid-range 2.2µF Tweeter INPUT Red White White Blue Blue White CS Cord (264284)
