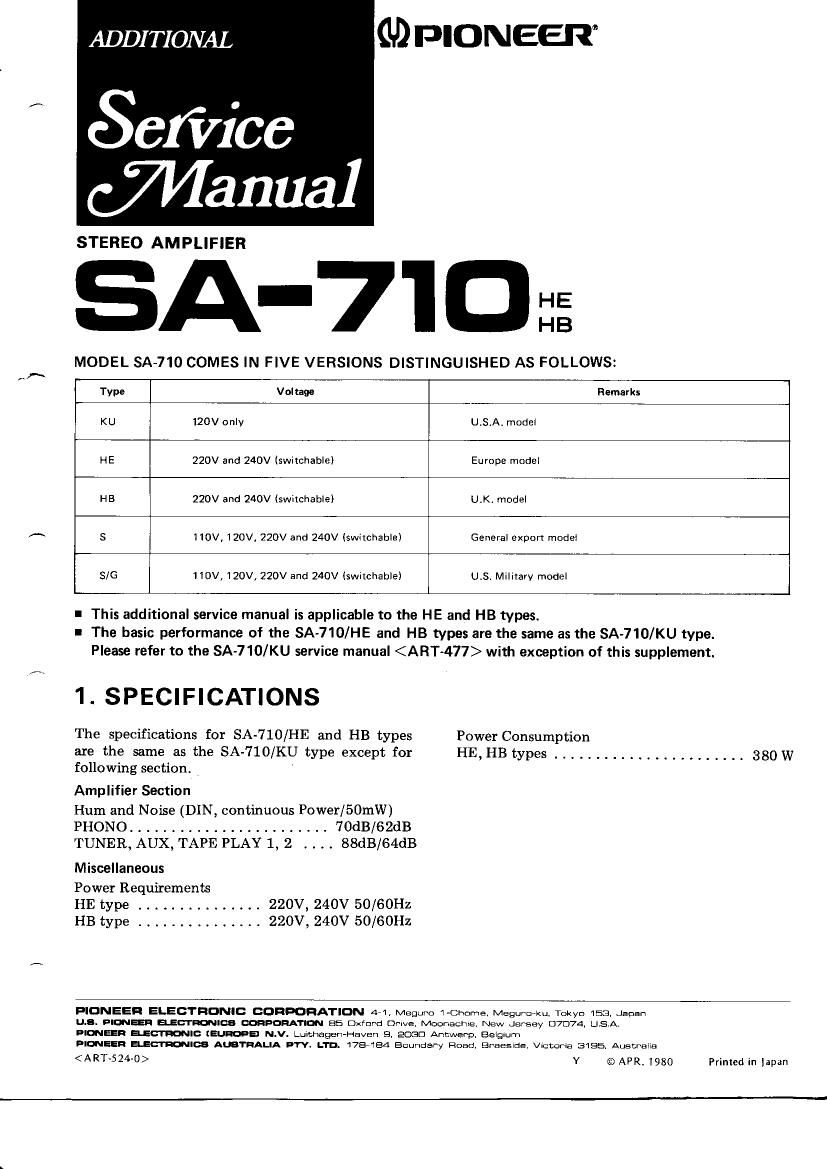

Page 1

ADDITIONAL

Sari/ice
Wanna]

STEREO AMPLIFIER

A-7'Ions

MODEL SA-710 COMES IN FIVE VERSIONS DISTINGUISHED AS FOLLOWS:

Type Voltage Remarks
KU 120V only U,SiA. model

HE 220V and 240V (switchable) Europe model

HE 220V and 240V (swutchable) UiKi model

5 110V, 120V, 220V and 240V (switchable) General exporr model

S/G 110V, 120V. 220V and 240V (switchable) U.s, Military model

I This additional service manual is applicable to the HE and HB types.
I The basic performance of the SA-710/HE and HB types are the same as the SA-710/KU type.
Please refer to the SA-710/KU service manual with exception of this supplement.

1. SPECIFICATIONS

The specifications for SA-710/HE and HB types Power Consumption
are the same as the SA-710/KU type except for HE, HB types ....................... 380W
following section.

Amplifier Section

Hum and Noise (DIN, continuous Power/SOmW)
PHONO ........................ 70dB/62dB
TUNER, AUX, TAPE PLAY 1, 2 . . . . 88dB/64dB

Miscellaneous

Power Requirements
HE type ............... 220V, 240V 50/60Hz
HB type ............... 220V, 240V 50/60Hz

PIONEER ELECTRONIC CORPORATION 471. Magma l-Chome, Meguruflflil. Tokyo 153, Japan
u.a. FION- announce OOHPDHATIDN EE Dxfnhd Drive. lvoonachva New Jersey D7074. USA.
HOMER 5.5m: IEUHDDI N.V. Lumhagen-Haven s. 2030 Afitwevp, Belgium

FIDNEER MICE ALBTHALIA BTV. LTD. 1757184 Boundary Road. Eraeside, Victorla 3155. Australia

Y © APR. 1980 Printed in lawn

Page 2

2. CONTRAST OF MISCELLANEOUS PARTS

NOTES:

a Paris without part number cannot be supplied

I The A mark found on some component parts indicates the importance of the
safety factor of the part. Therefore. when replacing, be sure to use parts of identical

ASSEMBLIES designation.
Part No.
Symbol Description Remarks
KU typo HE typo HB typo
AF amplifier assembly GWK-145 GWK»152 GWK-152
Tone control assembly GWG-139 GWGJ 42 GWG-142
Switch assembly GWS»21B GWS»234 GWS-234 SPEAKERS
Switch assembly GWS»219 GWS-235 GWS-235 FUNCTION
Volume assembly GWX-461 GWX-487 GWX-487
Headphones assembly GWX462 GWx-487 GWX-487
Fuse assembly ........ GWx-488 GWXABB
F.L assembly AWV~007 AWV-007 AWV-007
0TH E RS
Pat No.
5 mhol Descri tion Rom-7k:
y p KU typo HE typo HB typa
Front panel assembly ANS-846 ANS-894 ANB-894
A T1 iner transformer ATT.668 ATT-703 ATT»703
AFm Fuse (5A) ASK-108 ................
Ann Fuse (TZA) ........ AEKon AEK-o17
Aw: Fuse (T2.5Al ........ AEK~403 ........
A $8 Lever switch ASK~52O ASK-521 ASK-521
A C1 Capacitor ACG-OO'l ................
A AC socket AKP-032 AKP-OZG AKP»044
A AC power code ADS-023 AUG-041 ADG-O51
PACKlNG AND FURNISHED PARTS
Part No.
' Rsmarks
Symbol Description KU WM HE WM HB type
Operating instructions (English) ARB<353 ARB~364 ARE-364
Operating instructions ........ ARD-l 46 ........
(German/French)
Packing case AHD-753 AHD-774 AHD-774
