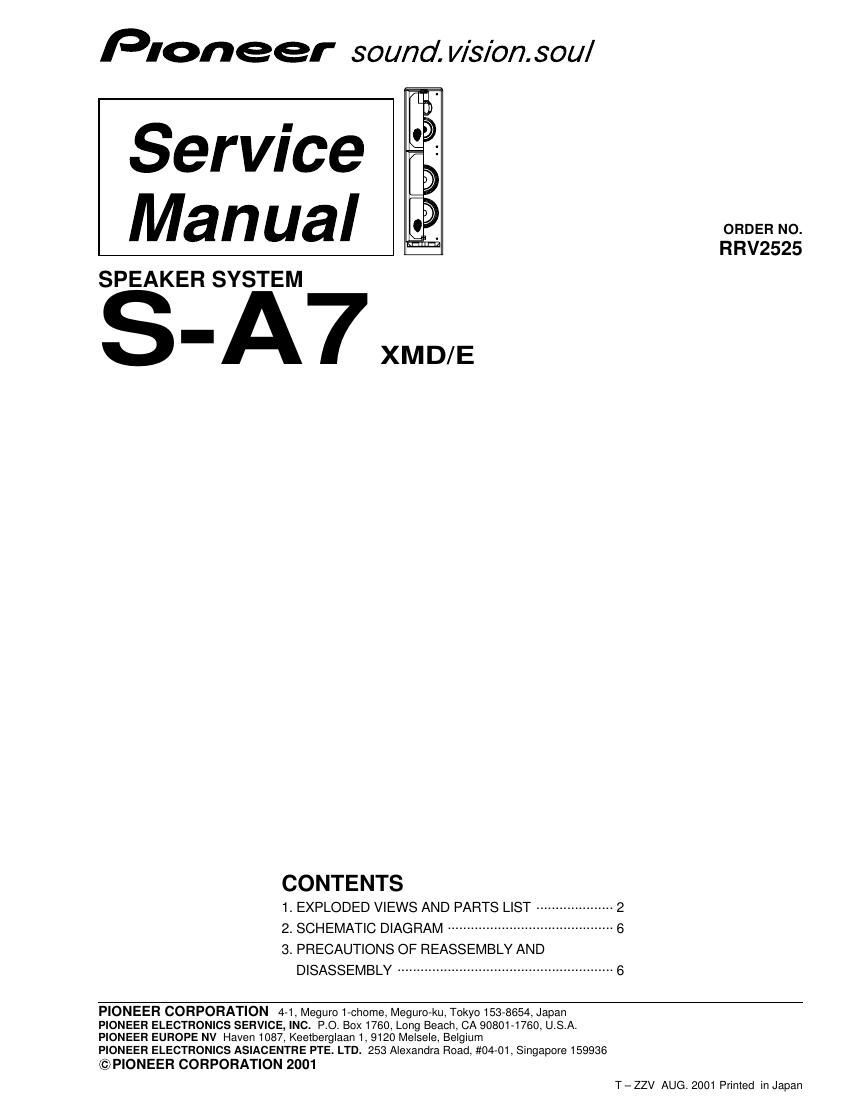

Pioneer sa 7 service manual

This is the 8 pages manual for pioneer sa 7 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 8
pioneer sa 7 service manual

Extracted text from pioneer sa 7 service manual (Ocr-read)


Page 1

S-A7 2 1. EXPLODED VIEWS and PARTS LIST NOTES: - Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. - The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. - Screws adjacent to mark on the product are used for disassembly. 1.1 PACKING NSP 1 Accessories Set SME3243 2 Install Instructions SRD1231 (English,Spanish,Chinese) 3 Polyethylene Bag S2 SHL1265 NSP 4 Accessories Set SME3098 5 Spike SBA1188 6 Base SLA1052 7 Polyethylene Bag S0 SHL1259 PACKING PARTS LIST Mark No. Description Parts No. Mark No. Description Parts No. 8 Foam Pad SHA2251 9 Foam Pad SHA2252 10 Foam Pad SHA2253 11 Packing Case SHG2383 12 Polyethylene Bag S7 SHL1260 2 1 8 10 10 1112 93 6 7 4 5

Page 2

S-A7 3 1.2 CABINET 6 25 28 410 5 36 367 188 17 19 2029 32 2823 16 33 15 14 15 12 27 133 11 34 31 30 35 30 26 9 22124 22 Back LidAttach No. 17 Gasket with 9 (No.32) screws matching the back board after attaching the Net- work Assy. Take care the attaching direction. NSP 1 Cabinet SMM1913 2 Grille SMG1704 3 Catch SNK2464 4 Grille SMG1711 5 Catch SNK2464 NSP 6 Network Assy (for Wf) SWN1645 NSP 7 Network Assy (for Mid/Tw,S.Tw) SWN1668 NSP 8 Model Label SAN3026 NSP 9 Caution Label SAX1394 NSP 10 Gasket (for Wf) SEC1493 NSP 11 Gasket (for Mid/Tw) SEC1494 NSP 12 Gasket (for Tw cord packing) SEC1495 NSP 13 Gasket (for S.Tw) SEC1496 NSP 14 Gasket (for Shield Plate) SEC1497 NSP 15 Gasket (for Shield Plate) SEC1498 NSP 16 Gasket (for Shield Plate) SEC1501 NSP 17 Gasket (for Back Lid) SEC1499 18 Input Terminal SKX1064 19 Conductor L SKC1065 20 Conductor R SKC1066 CABINET PARTS LIST Mark No. Description Parts No. Mark No. Description Parts No. 21 Catch SLH1069 NSP 22 Paper Tube70 SMR1329 23 Fastner SNB1065 NSP 24 Shield Plate SNE1027 25 Speaker (Wf) W16FR90-51H 26 Speaker (Mid/Tw) W13FR82-51DX 27 Speaker (S.Tw) ART52D 28 Screw (for Network Assy) SBA1189 29 Screw (for Input Terminal,Fastner) SBA1190 30 Screw (for Wf,Mid/Tw) SBA1191 31 Screw (for S.Tw) SBA1192 32 Screw (for Cabinet Back Lid, SBA1193 Network Assy) 33 Screw (for Shield Plate) SBA1194 NSP 34 Damper(for Input Terminal) SEP1235 NSP 35 Damper(for Cabinet Mid/Tw) SER1297 NSP 36 Damper(for Cabinet Port) SER1298
