Pioneer sa 6800 service manual

This is the 3 pages manual for pioneer sa 6800 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 3
pioneer sa 6800 service manual

Extracted text from pioneer sa 6800 service manual (Ocr-read)


Page 1

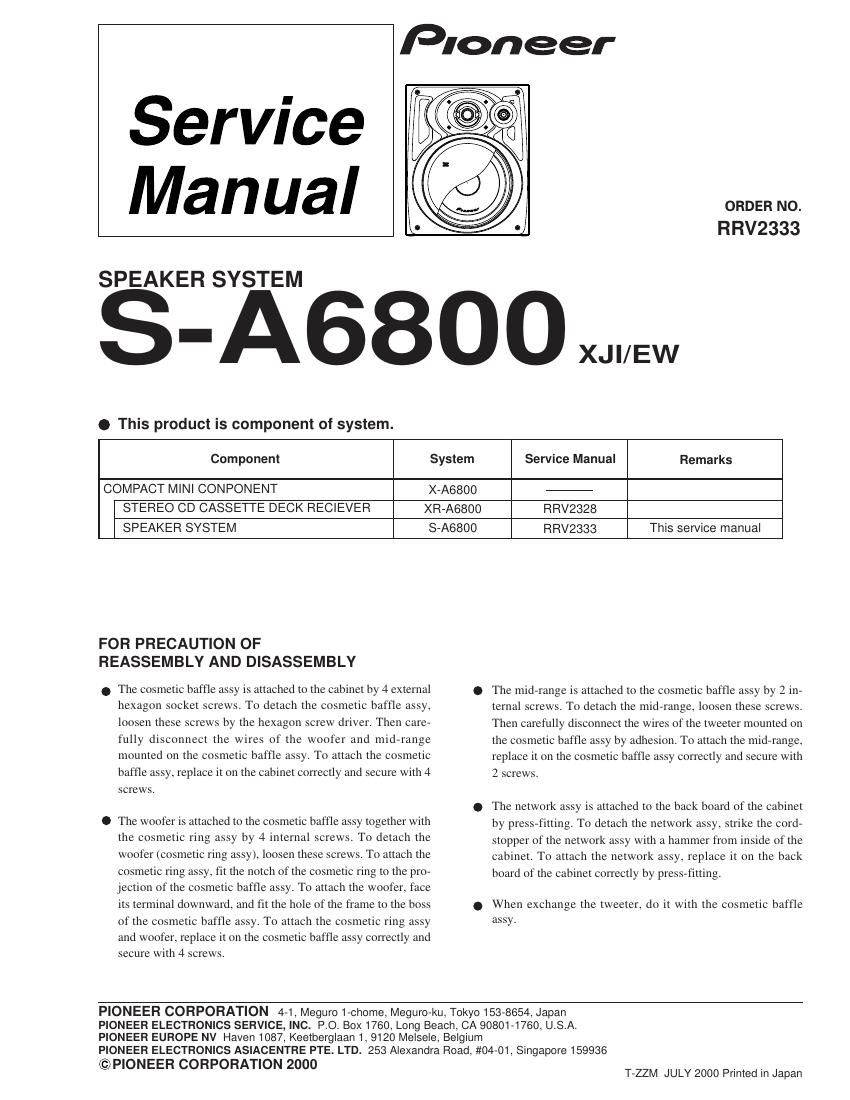

2 S-A6800 Mark No. Description Part No. Network ASSY (SWN1635) SCHEMATIC DIAGRAM For Packing Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST Mark No. Description Part No. NSP Cabinet SMM1895 Network Assy SWN1635 Input Terminal KKX1014 Non Skid Pad SEC1374 Gasket (Baffle Height) SEC1437 Gasket (Baffle Wide) SEC1439 NSP Stamped Model Label (L) SME3031 NSP Model Label (L) SAN2827 NSP Stamped Model Label (R) SME3032 NSP Model Label (R) SAN2828 NSP Acoustic Absorbent SMV1886 Cosmetic Baffle Assy(L) SXB1387 NSP Gasket SEC1451 NSP Cosmetic Baffle (L) SNK2415 Diaphragm Assy 20 SXE1080 NSP Ceramic Tweeter SCA1011 Gasket SEC1387 NSP Terminal SKF1034 NSP Terminal SKF1035 NSP Diaphragm SVA1024 Cosmetic Baffle Assy (R) SXB1388 NSP Gasket SEC1451 NSP Cosmetic Baffle (R) SNK2416 Diaphragm Assy 20 SXE1080 NSP Ceramic Tweeter SCA1011 Gasket SEC1387 NSP Terminal SKF1034 NSP Terminal SKF1035 NSP Diaphragm SVA1024 Cosmetic Ring Assy SXB1417 Punching Net SNC1176 NSP Cosmetic Ring SNK2482 Speaker (Woofer) B18LU86-51D Speaker (Mid-range) FD66AP45-58D Screw (for Mid-range) APZ30P080FMC Screw (for Woofer,Cos. Ring Assy)BPZ40P160FMC Tapping Screw (for Cos. Baffle Assy)SBA1162 NSP Staple 80/8 BEA ZMA-8008BSpeaker Wire SDS1093 Top Protector SHA2219 Bottom Protector SHA2220 Packing Case SHG2268 NSP Polyethylene Bag S5 SHL1212 Woofer 1.8 µF Midrange I N Tweeter Diaphragm ASSY 20 (In Cosmetic Baffle ASSY) Blue Red White Black White WhiteBlue Red

Page 2

3 S-A6800 PRODUCT APPEARANCE 8 9 10 4Model Label (R) Non Skid Pad – – – – – – – – – – Input Terminal1 4 1 11 12 13 14 15 Gasket 72 1 1 Acoustic Absorbent Screw Cosmetic Ring Assy – – – – – Cosmetic Baffle Assy (R)Cabinet Speaker Speaker 1 1 1 1 6 5 4 3 2 1Part name Num. No. Remarks Part name Num. No. Remarks 1 Network Assy M4x55 Woofer Mid–range 320 260 1 3 56 7 911 10 124 2 15 From Tw To MID terminals red194 280.4 redwhite white blue To WOOFER terminals This product appearance shows Rch. Lch is symmetrical to center line. black
