Pioneer sa 670 service manual

This is the 3 pages manual for pioneer sa 670 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 3
pioneer sa 670 service manual

Extracted text from pioneer sa 670 service manual (Ocr-read)


Page 1

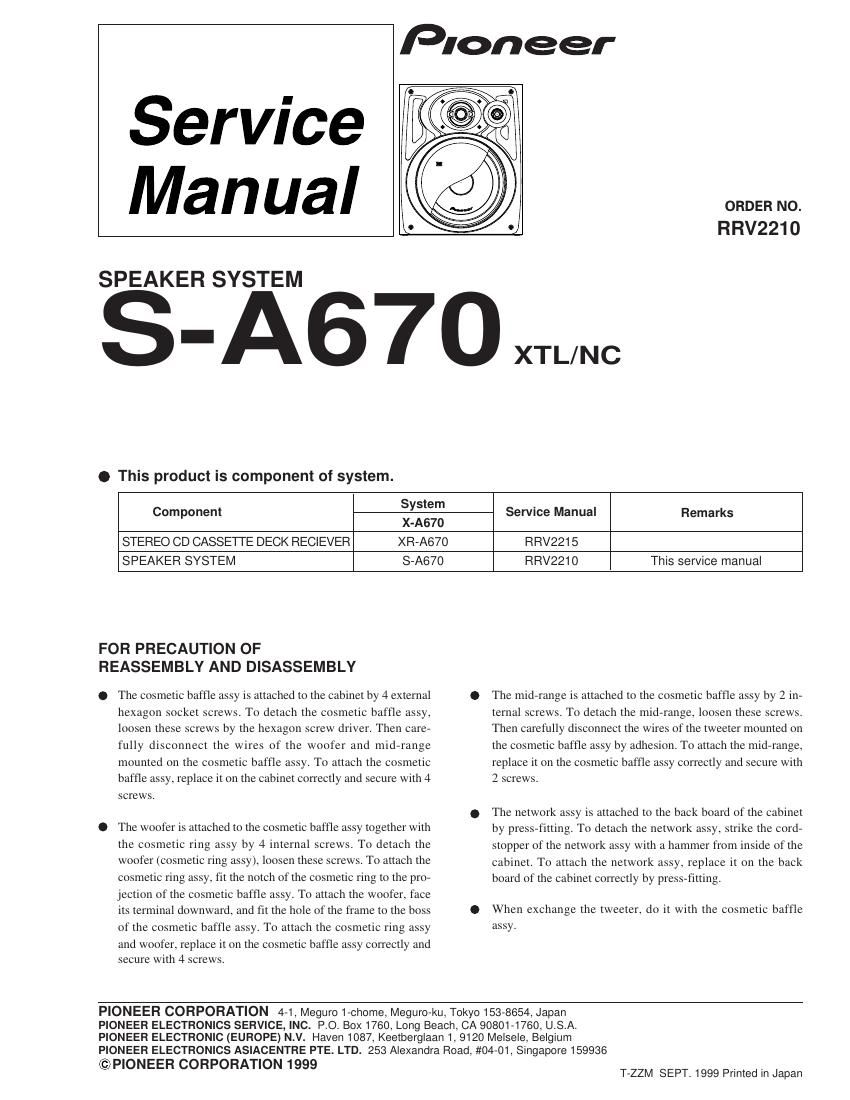

2 S-A670 Mark No. Description Part No. Network ASSY (SWN1608) SCHEMATIC DIAGRAM For Packing Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST Mark No. Description Part No. NSP Cabinet SMM1875 Network ASSY SWN1608 Non Skid Pad SEC1416 Gasket (for Baffle vertical) SEC1447 Gasket (for Baffle horizontal) SEC1449 NSP Acoustic Absorbent SMV1916 Cosmetic Ring ASSY SXB1389 NSP Punching Net SNC1176 NSP Cosmetic Ring SNK2424 Cosmetic Baffle ASSY (L) SXB1387 NSP Gasket SEC1451 NSP Cosmetic Baffle (L) SNK2415 Diaphragm ASSY 20 SXE1080 NSP Ceramic Tweeter SCA1011 Gasket SEC1387 NSP Terminal (Red) SKF1034 NSP Terminal (Black) SKF1035 NSP Diaphragm SVA1024 Top Protector SHA2196 Bottom Protector SHA2197 Protection Sheet SHC1730 Packing Case SHG2237 NSP Polyethylene Bag S5 SHL1230 Mark No. Description Part No. Cosmetic Baffle ASSY (R) SXB1388 NSP Gasket SEC1451 NSP Cosmetic Baffle (R) SNK2416 Diaphragm ASSY 20 SXE1080 NSP Ceramic Tweeter SCA1011 Gasket SEC1387 NSP Terminal (Red) SKF1034 NSP Terminal (Black) SKF1035 NSP Diaphragm SVA1024 NSP Stamped Model Label (L) SME2978 NSP Model Label (L) SAN2765 NSP Stamped Model Label (R) SME2979 NSP Model Label (R) SAN2766 Speaker (Woofer) B18LU83-51D Speaker (Mid-range) D66AP45-56D Screw (for Mid-range) APZ30P080FMC Screw (for Woofer, Cos. Rig ASSY) BPZ40P160FMC Tapping Screw (for Cosmetic Baffle ASSY)SBA1161 Woofer 1.8 µF Midrange I N Tweeter Diaphragm ASSY 20 (In Cosmetic Baffle ASSY) Red White Black Black Black RedRed Red

Page 2

3 S-A670 PRODUCT APPEARANCE 8 9 10 4Model Label (R) 1 Non Skid Pad 4 11 12 Gasket 72 1 1 Acoustic Absorbent Screw Cosmetic Ring Assy – – – – – Cosmetic Baffle Assy (R)Cabinet Speaker Speaker 1 1 1 1 6 5 4 3 2 1Part name Num. No. Remarks Part name Num. No. Remarks 1 Network Assy M4x55 Woofer Mid–range black red black terminalsTo MID From Tw To WOOFER terminals red white red 260 320 2 4 12 10 7 5 1 96 3 252.4 166 11 *This product appearance shows Rch. Lch is symmetrical to center line.
