Pioneer sa 660 service manual
This is the 2 pages manual for pioneer sa 660 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer sa 660 service manual (Ocr-read)

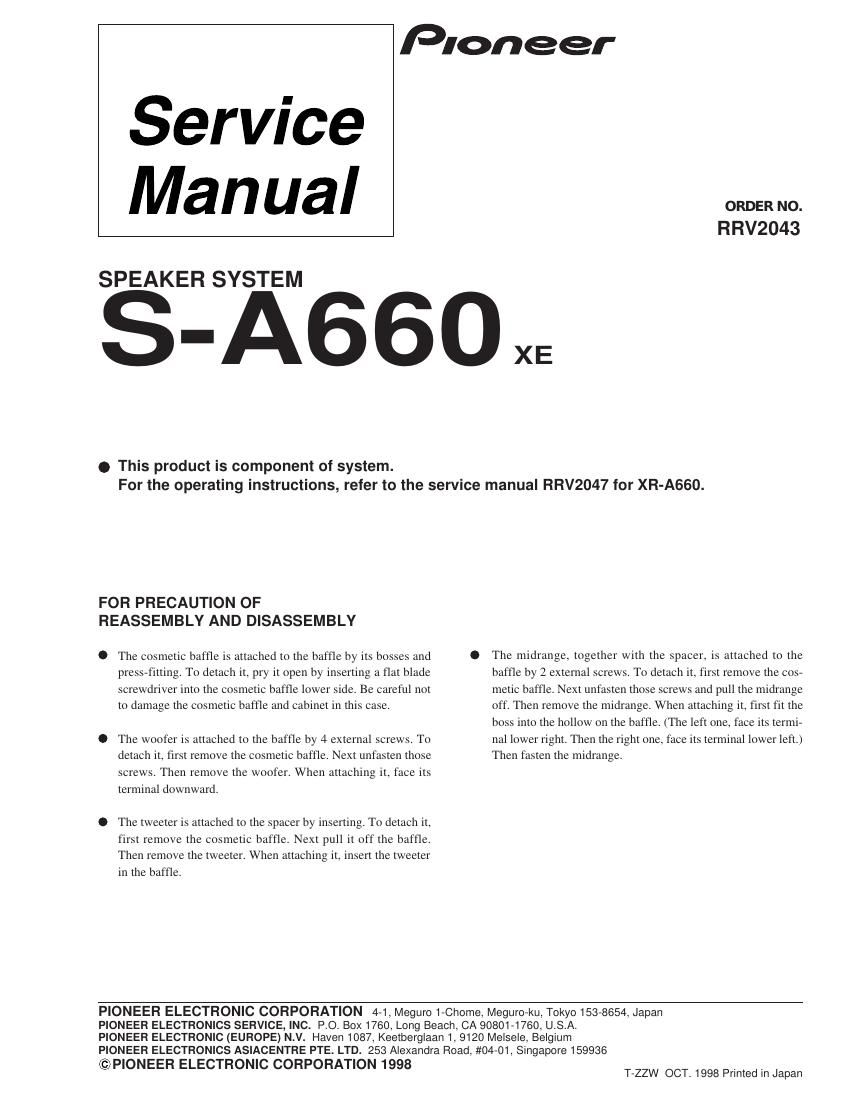

Page 1
2 NSP Cabinet (L) FRMM-174 NSP Baffle Board (L) FRNK-329 NSP Cabinet (R) FRMM-175 NSP Baffle Board (R) FRNK-330 Network ASSY FRWN-149 NSP Label Back (L) FRAN-251 NSP Label Back (R) FRAN-252 Input Terminal FRKX-013 NSP Acoustic Absorbent FRMV-027 Cosmetic Baffle ASSY (L) FRXB-026 NSP Punching Net FRNC-015 NSP Cosmetic Baffle (L) FRNK-331 NSP Cosmetic Ring ASSY FRXB-032 NSP Punching Net FRNC-014 NSP Cosmetic Ring FRNK-333 Cosmetic Baffle ASSY (R) FRXB-027 NSP Punching Net FRNC-015 NSP Cosmetic Baffle (R) FRNK-332 NSP Cosmetic Ring ASSY FRXB-032 NSP Punching Net FRNC-014 NSP Cosmetic Ring FRNK-333 Speaker (Woofer) A16EC83-52D Speaker (Mid-range) FD66AP45-80F Screw (for Woofer and Mid-range) BPZ40P160FZBSpeaker Cord FRDD-041 Top Protector FRHA-162 Bottom Protector FRHA-163 Protection Mat S3 FRHC-028 Packing Case FRHG-230 Mark No. Description Part No. Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST Mark No. Description Part No. S-A660 For Packing Network ASSY (FRWN-149) SCHEMATIC DIAGRAM Woofer Mid-range I N Tweeter 1.0µF/63V Blue White White White White Red BlackGreen White WhiteBlue
