Pioneer sa 6 c service manual
This is the 7 pages manual for pioneer sa 6 c service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer sa 6 c service manual (Ocr-read)
Page 1

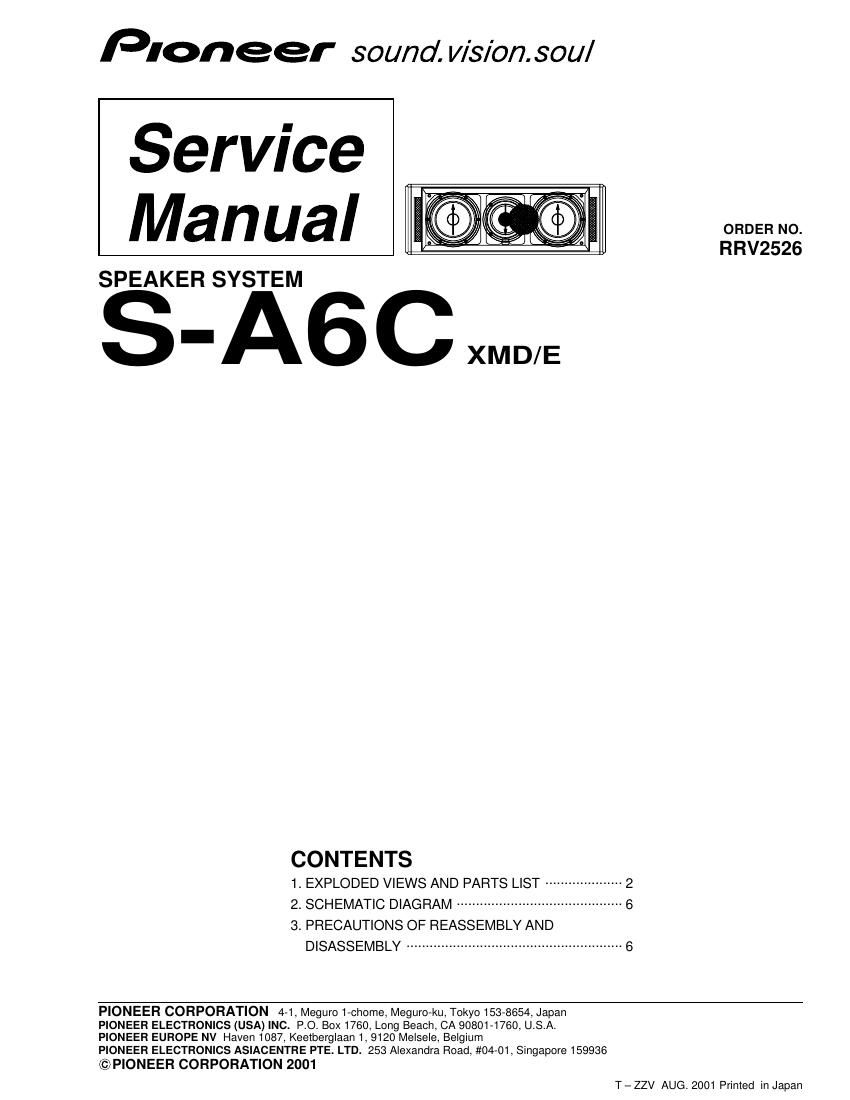

S-A6C 2 1. EXPLODED VIEWS and PARTS LIST NOTES: - Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. - The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. - Screws adjacent to mark on the product are used for disassembly. 1.1 PACKING NSP 1 Accessories Set SME3244 2 Install Instructions SRD1232 (English,Spanish,Chinese) 3 Polyethylene Bag S2 SHL1265 NSP 4 Accessories Set SME3099 5 Stand SEW1029 6 Polyethylene Bag S1 SHL1263 PACKING PARTS LIST Mark No. Description Parts No. Mark No. Description Parts No. 7 Foam Pad SHA2251 8 Foam Pad SHA2254 9 Foam Pad SHA2255 10 Packing Case SHG2384 11 Polyethylene Bag S7 SHL1261 4 6 5 8 9 11 10 7 9 1 2 3
Page 2
S-A6C 3 1.2 CABINET NSP 1 Cabinet SMM1945 2 Grille SMG1712 3 Catch SNK2464 NSP 4 Network Assy (for Wf) SWN1647 NSP 5 Network Assy (for Mid/Tw) SWN1669 NSP 6 Model Label SAN3027 NSP 7 Gasket (for Wf) SEC1493 NSP 8 Gasket (for Mid/Tw) SEC1494 9 Gasket (for Tw cord packing) SEC1495 10 Input Terminal SKX1064 11 Conductor L SKC1065 12 Conductor R SKC1066 CABINET PARTS LIST Mark No. Description Parts No. Mark No. Description Parts No. 13 Catch SLH1069 14 Speaker (Wf) W16FR90-51H 15 Speaker (Mid/Tw) W13FR82-51DX 16 Screw (for Network Assy) SBA1189 17 Screw (for Input Terminal) SBA1190 18 Screw (for Wf,Mid/Tw) SBA1191 19 Screw (for Network Assy) SBA1193 NSP 20 Acoustic Absorbent SMT1101 NSP 21 Damper(for Input Terminal) SEP1235 NSP 22 Damper(for Duct Board) SEP1236 NSP 23 Damper(for hole for Mid/Tw) SER1297 10 6 11 12 17 1 9 17 17 1021 15 2 3 2 141513 8 7 20 22 White White Black 7 19 16 23 19 22 18 16 5 1721 4
