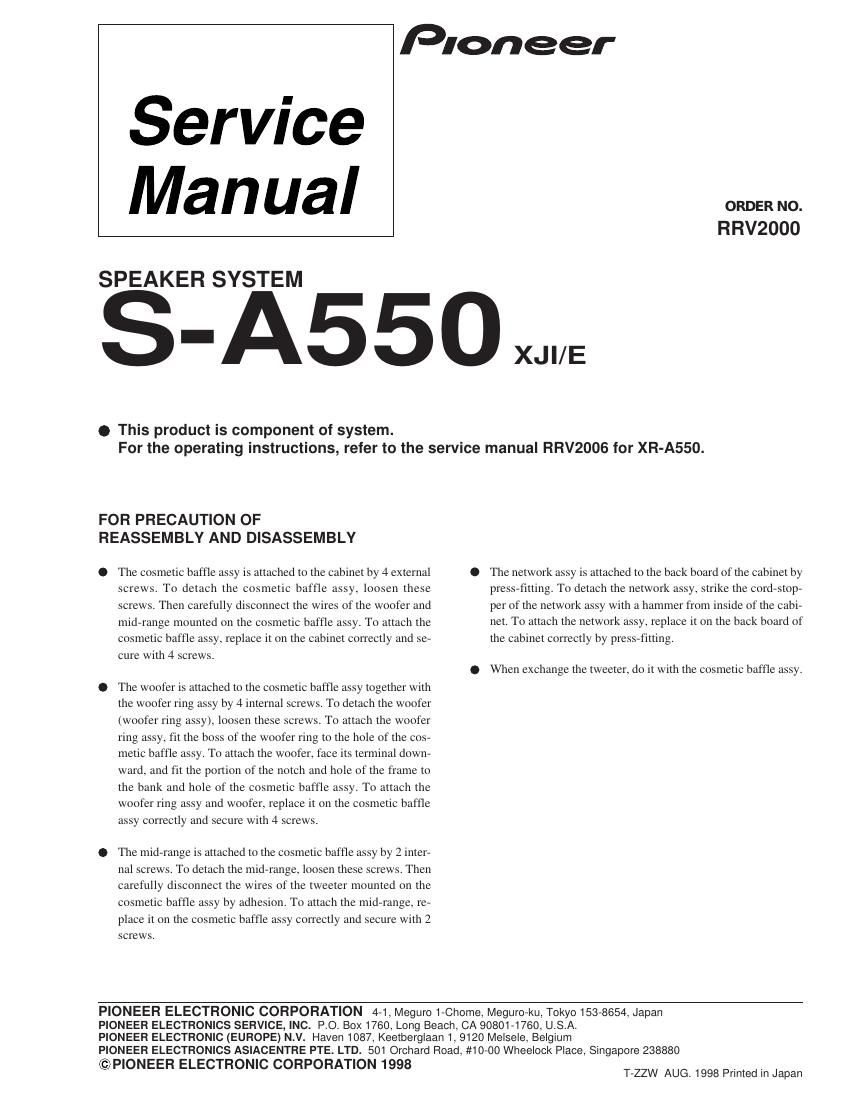

Pioneer sa 550 service manual

Page 1

2 NSP Cabinet (L) SMM1807 NSP Cabinet (R) SMM1840 Network ASSY SWN1577 Gasket (for Baffle wide) SEC1359 Gasket (for Baffle height) SEC1375 Non Skid Pad SEC1374 NSP Stamped Model Label (L) SME2768 NSP Model Label (L) SAN2567 NSP Stamped Model Label (R) SME2769 NSP Model Label (R) SAN2568 NSP Acoustic Absorbent SMV1886 Woofer Ring ASSY SXB1327 NSP Woofer Ring SNK2313 NSP Cosmetic Ring ASSY SXB1328 NSP Punching Net SNC1160 NSP Cosmetic Ring SNK2314 Cosmetic Baffle ASSY (L) SXB1329 NSP Duct SNK2304 NSP Cosmetic Baffle (L) SNK2315 Diaphragm ASSY 20 SXE1080 NSP Ceramic Tweeter SCA1011 Gasket SEC1387 NSP Terminal (Red) SKF1034 NSP Terminal (Black) SKF1035 NSP Diaphragm SVA1024Cosmetic Baffle ASSY (R) SXB1330 NSP Duct SNK2304 NSP Cosmetic Baffle (R) SNK2316 Diaphragm ASSY 20 SXE1080 NSP Ceramic Tweeter SCA1011 Gasket SEC1387 NSP Terminal (Red) SKF1034 NSP Terminal (Black) SKF1035 NSP Diaphragm SVA1024 Speaker (Woofer) A16LU83-51D Speaker (Mid-range) D66AP45-52D Screw (for Mid-range) BPZ30P100FMC Screw(for Woofer, Woofer Ring ASSY)BPZ40P160FMC Tapping Screw(for Cosmetic Baffle) SBA1161 Top Protector SHA2112 Bottom Protector SHA2113 Protection Sheet S3 SHC1731 Packing Case SHG2099 NSP Polyethylene Bag S5 SHL1212 Mark No. Description Part No. Network ASSY (SWN1577) SCHEMATIC DIAGRAM For Packing Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST Mark No. Description Part No. S-A550 Woofer 2.2µF Midrange I N Tweeter Diaphragm ASSY 20 (In Cosmetic Baffle ASSY) Red White Black Black Black RedRed Red
