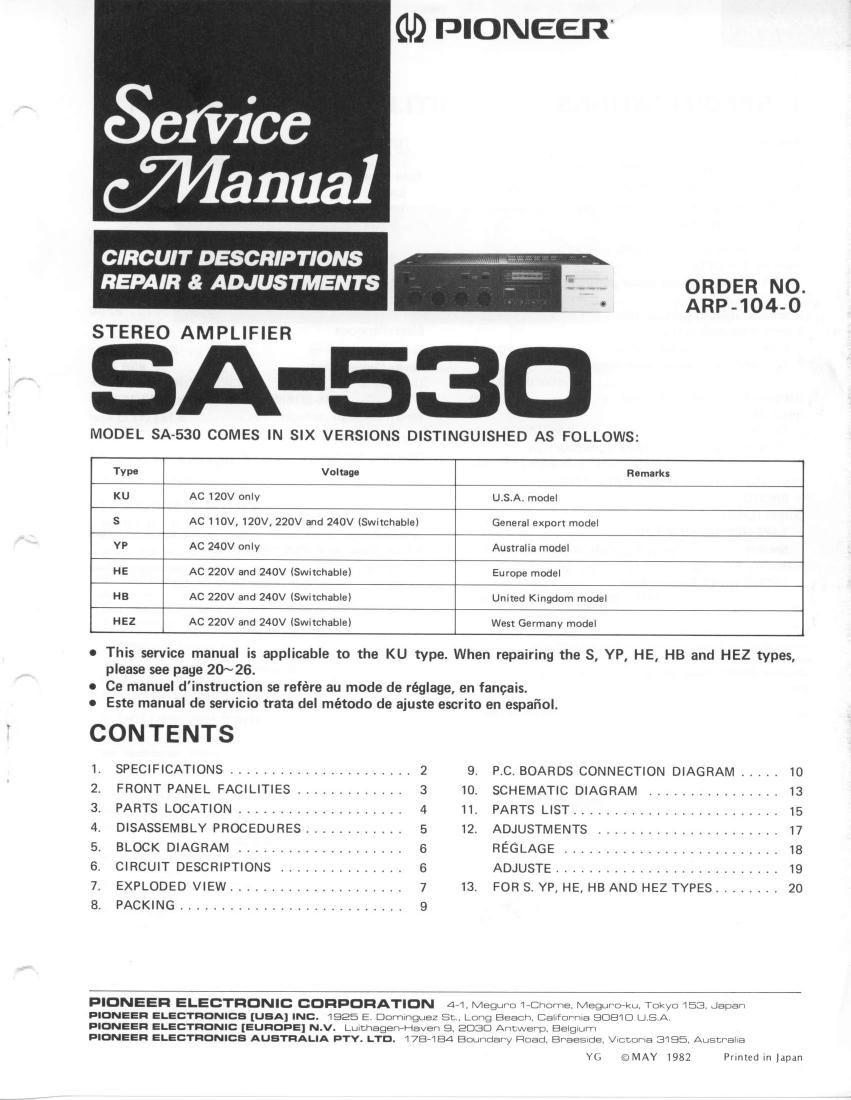

pioneer sa 530 service manual

Extracted text from pioneer sa 530 service manual (Ocr-read)


Page 1

1. SPECIFICATIONS Amplifier Section Continuous average power output is 35 watts* per channel, min., at 8 ohms from 20 hertz to 20,000 hertz with n0 more than 0.05% total harmonic distortion. Total Harmonic Distortion (20H2 to 20,000H2, 8 ohms, from AUX/VlDEOl 17.5 watts per channel power output . . No more than 0.03% fntermodulation Distortion (50H2 : T,OOOHz: 4 : 1, 8 ohms, from AUX/VIDEO) Continuous rated power output . . No more than 0.0g% 17.5 watts per channel power output No more than 0.05% DampingFactor(lkHz,8ohms) .....30 I nput (Sensitiv ity/l mpedance ) PHONO ...2.5mV/S0kitohms TUNER, AUX/VIDEO, TAPE 1,2/ADAPTOR ... 150mV/50kitohms Phono Overload Level (T.H.D. 0.01%, 1,000H2) PHONO 150mV Output (Level) TAPERECI,2IADAPTOR... 150mV Speaker .... A,B,A+B,OFF Frequency Response PHONO (BIAA Equalizationl 20Hz to 20,000H2 t0.5dB TUNER, AUX/VIDEO, TAPE PLAY 1,2/ADAPTOR . . . . . 10Hzto 60,000Hzt2dB Tone Control BASS . ll0dB (l00Hz) TREBLE . .110d8 (10,000H2) Loudness Contour (Volume control set at -40d8 position) . . . +6dB (100H2) Hum and Noise (lHF, short-circuited, A network) PHONO .....72d8 TUNER, AUX/VIDEO, TAPE PLAY 1,2/ADAPTOR 97 dB Miscellaneous Power Requirements . . AC 120V.60H2 Power Consumption . . 95W (UL) Dimensions 420(Wl x 97(Hl x 275(D) mm 16-9/16(W) x 3-13/16(H) x 10-13/16(D) in Weight (without package) . . . . . 5.1kg (11 lb 4oz) Furnished Parts Operatinglnstructions ......1 NOTE: Specifietions and the design subject to possible modifiations wirhout notie due to improvefirents. 'Measured purcuant to the Federal Trade Commission's Trade Regulation rule on Povmr Output Claims for Amplif iars.

Page 2

2. FRONT PANEL FACILITIES c POWER SWTTCH Push this switch to turn on or turn off Dower. @ LOUDNESS SWTTCH Set this switch to ON when lastening at low volume, bass will be emphasized to compensate for human listening characteristics and provide natural listening curve. e TAPE 2/ADAPTOR SWTTCH Set this switch to ON when using a graphic equalizer or a second tape deck (or any equipment) connected to the TAPE 2IADAP- TOR terminals. (D powen METER The power meter shows the output level in watts when speaker syst€ms with a nominal impedance of I ohms have been connected to the speaker terminals of this unit. @ voluruE coNTRoL Slide this control to adiust the output level of the speakers and the headphones. Output is minimum at 0 and increases as the control is slided rightward. @ seenrERs sELEcroR Use this selector to select the speaker system. OFF: Use this seiting when listening through headphones (no sound comes out of the speakers.) A : Sound is heard from speakers connected.to the A speaker terminals. B : Sound is heard from speakers connected to the B speaker terminals. A+B: Sound is heard from speakers connected to both A and B speaker terminals. 7; enss Ar{D TREBLE coNTRoLs Use these controls to adiust the tone. The right one controls treble and the left one controls bass. Turning knob clockwise acc€ntuates the bass or treble, and turning counterclockwise attenuates the bass or treble. @ aalerucE coNTRoL This control should normally be set to the center position, when the output from the left and right speakers or headphones is not the same, adjust by turning the control clockwise or counter- clockwise. @ rurucnoN rNDtcAToRs These indicate the function switch positions. nD rurucrroN swrTcHEs Use these switches to select the program sources. TUNER: Push when listening to a broadcast on the tuner which you have connected to the rear panel TUNER terminals. PHONO: Push when playing records on the turntable which you have connected to the rear oanel PHONO terminals. TAPE 1 : Push when playing back tapes on a tape deck which you connected to the rear panel TAPEl terminals. AUX/VIDEO: Push when using a component which you have connected to the rear panel AUX/VIDEO ter- minals. .D HEADPHONE JACK Plug headphones into this jack for private listening through them. Set the SPEAKERS selector to OFF. 3
