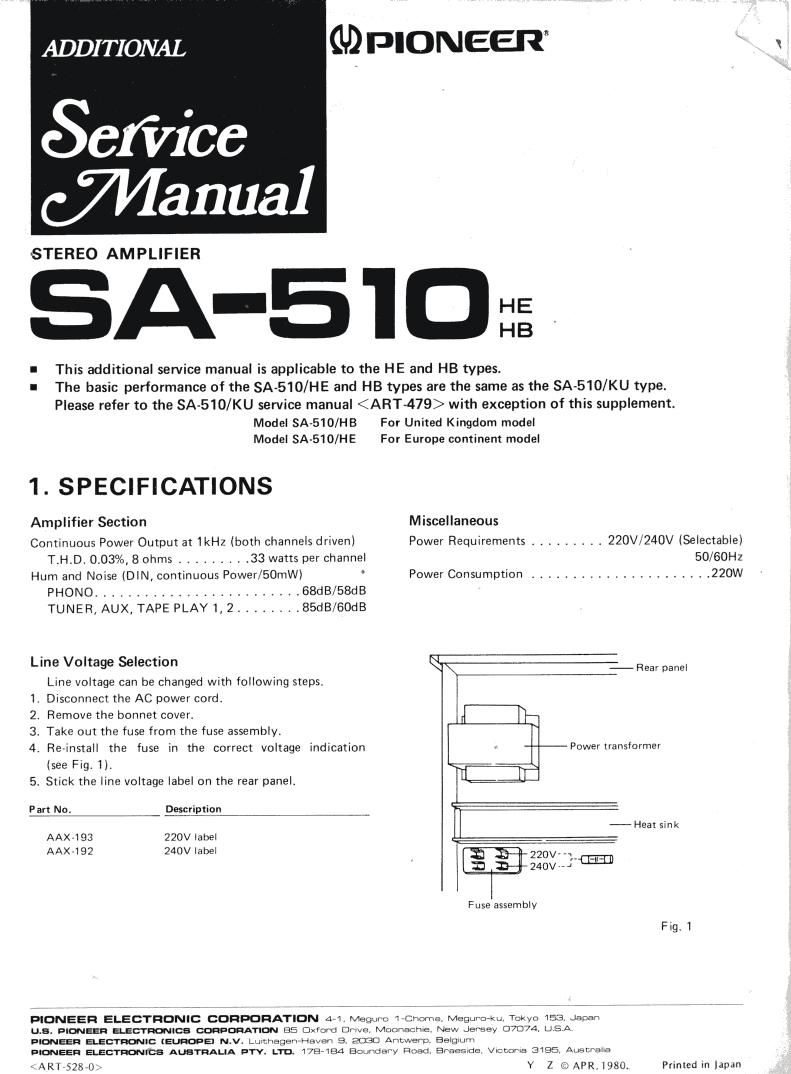

ADDITIONAL

Scfiice
Wanna]

STEREO AMPLIFIER

A-5'IOng

I This additional service manual is applicable to the HE and HB types.
' The baSiC Performance Of the SA-510/HE and HB types are the same as the SA-510/KU type.
Please refer to the SA~510/KU service manual with exception of this supplement.

Model SA-510/HB
Model SAv510/HE

1. SPECIFICATIONS

Amplifier Section
Continuous Power Output at lkHz (both channels driven)

T.H.D. 0.03%, 8 ohms ......... 33 watts per channel
Hum and Noise (DIN, continuous Power/SOmW)
PHONO ........................ 68dB/58dB
TUNER, AUX, TAPE PLAY 1,2 ........ 85dB/60dB

Line Voltage Selection

Line voltage can be changed with following steps.
Disconnect the AC power cord.

Remove the bonnet cover.

Take out the fuse from the fuse assembly.

Reinstall the fuse in the correct voltage indication
(see Fig. 1).

5. Stick the line voltage label on the rear panel.

PPN.

Part No. Description
AAX493 220V label
AAX~192 240V label

For United Kingdom model
For Europe continent model

Miscellaneous

Power Requirements ......... 220V/240V (Selectable)
50/60Hz
Power Consumption ...................... 220W

Rear panel

- Power transformer

:

- Heat sink
220V"~_
3 13-: 240v .4 fl
Fuse assembly
Fig_ 1

PIONEER ELECTFIONIC CORPORATION 471, Magma lCfiDme Megurcrku, Tokyo 153, Japan
us. PIONEER ELEc-rncwics CORPORATION 85 Oxfood Drlva, Mucnacme. New Jersey 07074, USA.

PIONEER ELECTRONIC (EUROPE) N.v. LumnagenA-«aven 3, 2030 Ancwe. ,
PIONEER ELECTRONICS AUSTRALIA FTV. LTD. 178484 Summary :10

KARTSZS'U/

Belg-um
. Bragging. Victoria 3195. Ausrmana

Y Z (t;- APR. 1980.

Printed in Japan
