Pioneer sa 4 l service manual

This is the 7 pages manual for pioneer sa 4 l service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 7
pioneer sa 4 l service manual

Extracted text from pioneer sa 4 l service manual (Ocr-read)


Page 1

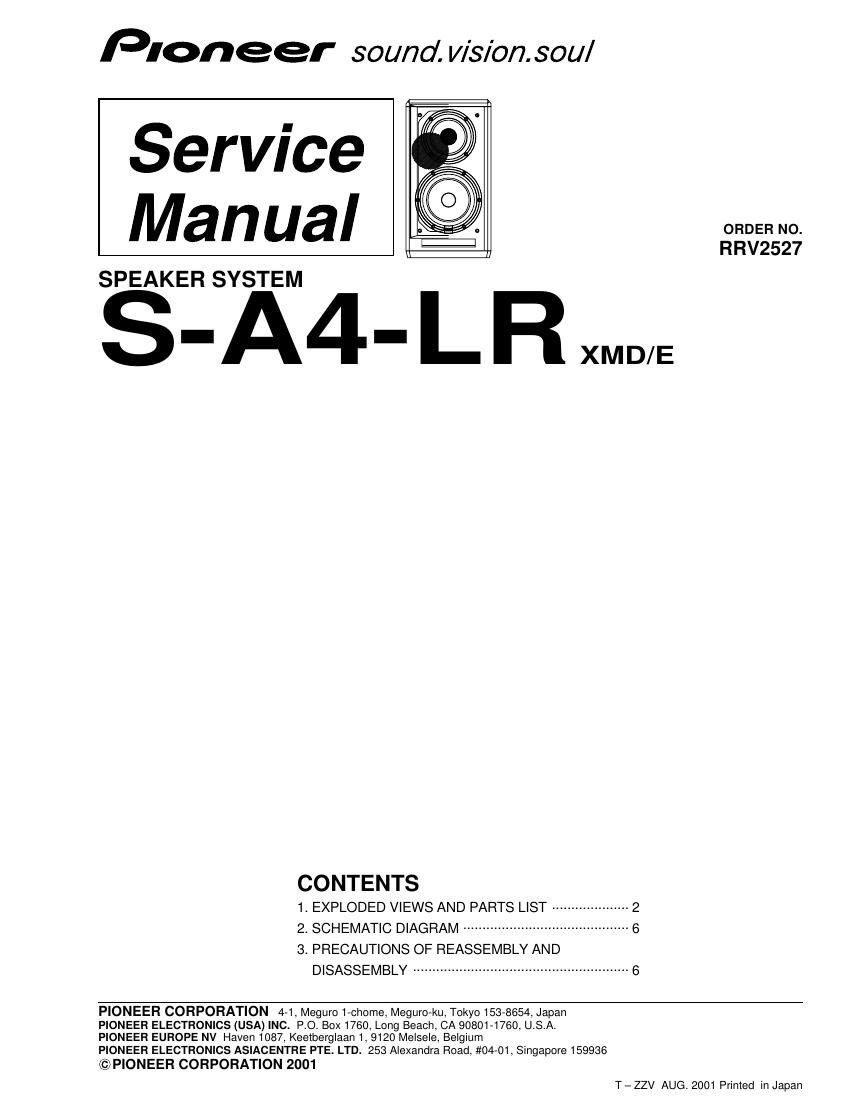

S-A4-LR 2 1. EXPLODED VIEWS and PARTS LIST NOTES: - Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. - The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. - Screws adjacent to mark on the product are used for disassembly. 1.1 PACKING NSP 1 Accessories Set SME3245 2 Install Instructions SRD1233 (English,Spanish,Chinese) 3 Polyethylene Bag S2 SHL1265 NSP 4 Accessories Set SME3100 5 Spike SBA1188 6 Base SLA1052 7 Polyethylene Bag S0 SHL1259 PACKING PARTS LIST Mark No. Description Parts No. Mark No. Description Parts No. 8 Foam Pad SHA2256 9 Foam Pad SHA2257 10 Foam Pad SHA2258 11 Foam Pad SHA2259 12 Packing Case SHG2385 13 Polyethylene Bag S7 SHL1262 3 7 562 8 11 4 13 10 9 12 1

Page 2

S-A4-LR 3 1.2 CABINET NSP 1 Cabinet SMM1946 2 Grille SMG1713 3 Catch SNK2464 NSP 4 Network Assy (for Wf) SWN1649 NSP 5 Network Assy (for Mid/Tw) SWN1669 NSP 6 Model Label SAN3028 NSP 7 Gasket (for Wf) SEC1493 NSP 8 Gasket (for Mid/Tw) SEC1494 9 Gasket (for Tw cord packing) SEC1495 10 Input Terminal SKX1064 11 Conductor L SKC1065 12 Conductor R SKC1066 CABINET PARTS LIST Mark No. Description Parts No. Mark No. Description Parts No. 13 Catch SLH1069 14 Speaker (Wf) W16FR90-51D 15 Speaker (Mid/Tw) W13FR82-51DX 16 Screw (for Network Assy) SBA1189 17 Screw (for Input Terminal) SBA1190 18 Screw (for Wf,Mid/Tw) SBA1191 19 Screw (for Network Assy) SBA1193 NSP 20 Damper(for Input Terminal) SEP1235 NSP 21 Damper(for Duct Board) SEP1236 NSP 22 Damper(for hole for Mid/Tw) SER1297 NSP 23 Damper(for Port) SER1299 21 Mid Wf Tw159 8 22 13 1916 Black 14 134 7 1321 23 18 33 6 10 5 17 20 1112 17 16 White
