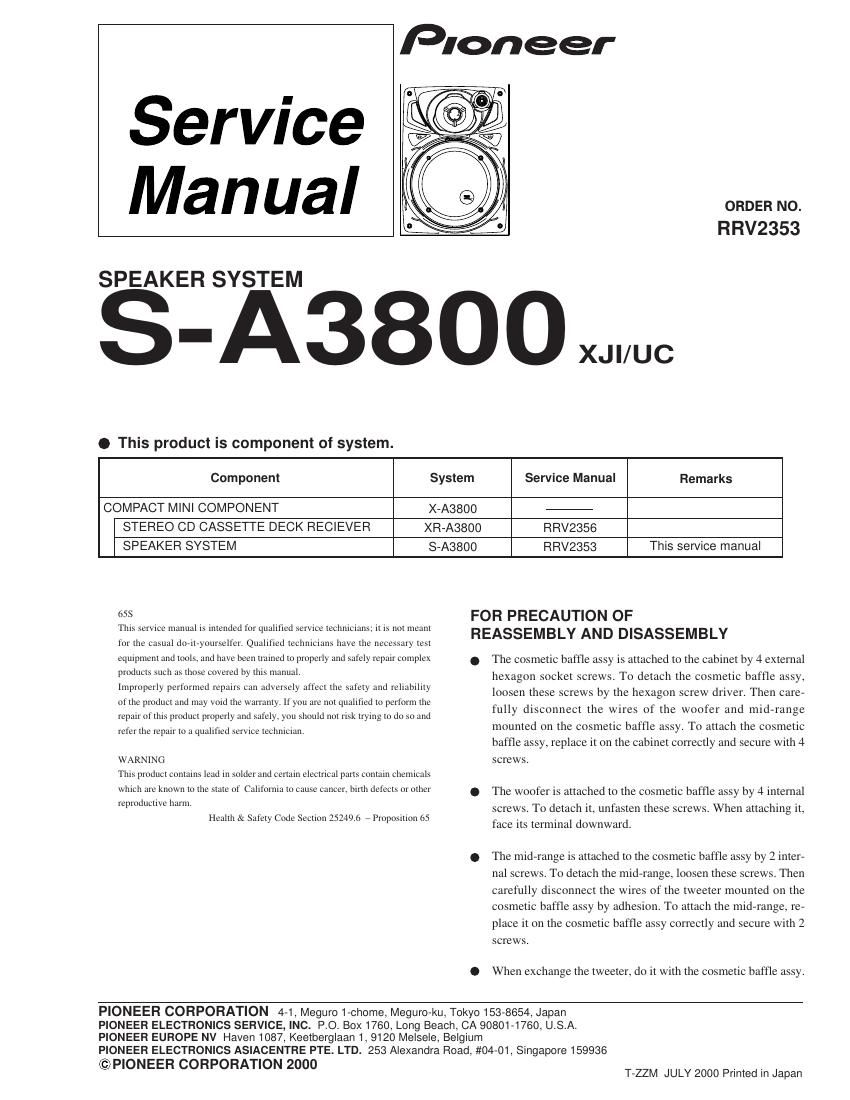

Pioneer sa 3800 service manual
This is the 3 pages manual for pioneer sa 3800 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer sa 3800 service manual (Ocr-read)
Page 1
2 S-A3800 Mark No. Description Part No. For Packing Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST Mark No. Description Part No. NSP Cabinet SMM1889 Network ASSY SWN1618 Gasket (for Baffle wide) SEC1359 Non Skid Pad SEC1374 Gasket (for Baffle height) SEC1380 NSP Stamped Model Label (L) SME3013 NSP Model Label (L) SAN2811 NSP Stamped Model Label (R) SME3014 NSP Model Label (R) SAN2812 Cosmetic Baffle ASSY (L) SXB1410 NSP Duct (L) SMR1315 NSP Duct (R) SMR1316 NSP Punching Net SNC1183 NSP Cosmetic Baffle (L) SNK2466 Diaphragm ASSY 20 SXE1092 NSP Ceramic Tweeter SCA1017 NSP Terminal (Red) SKF1034 NSP Terminal (Black) SKF1035 Cosmetic Baffle ASSY (R) SXB1411 NSP Duct (L) SMR1315 NSP Duct (R) SMR1316 NSP Punching Net SNC1183 NSP Cosmetic Baffle (R) SNK2467 Diaphragm ASSY 20 SXE1092 NSP Ceramic Tweeter SCA1017 NSP Terminal (Red) SKF1034 NSP Terminal (Black) SKF1035 Speaker (Woofer) A14LC83-54D Speaker (Mid-range) E52AP39-58D Screw (for Mid-range) BPZ40P080FMC Screw (for Woofer)BPZ40P100FMC Tapping Screw (for Cosmetic Baffle)SBA1162Top Protector SHA2217 Bottom Protector SHA2218 Packing Case SHG2259 NSP Polyethylene Bag S5 SHL1212 Network ASSY (SWN1618) SCHEMATIC DIAGRAM Woofer 2.2µF Midrange I N Tweeter Diaphragm ASSY 20 (In Cosmetic Baffle ASSY) Red White Black Black Black GreenRed Red
Page 2
3 S-A3800 PRODUCT APPEARANCE 8 9 10 Gasket Gasket Model Label (R) Non Skid Pad Duct (L) Duct (R)Horizontal Vertical 2 2 1 4 1 1 11 12 13 14 15 16 Punching Net 7 Screw Screw Cabinet (R) Screw (Hexagon socket) Network Assy Speaker Speaker Speaker 1 1 1 1 1 1 1 4 4 2 6 5 4 3 2 1Part name Num. No. Remarks Part name Num. No. Remarks Cosmetic Baffle (R) M4x55 M4x10 (Woofer) M4x8 (Mid) Woofer Mid Tweeter *This product appearance shows Rch. Lch is symmetrical to center line. A A' Silk printing 230 320 1 2 34 5 6 7 8 9 10 11 13 14 1215 87.5 166 (253.5) SECTION A-A' TO MID
