Pioneer sa 35 service manual

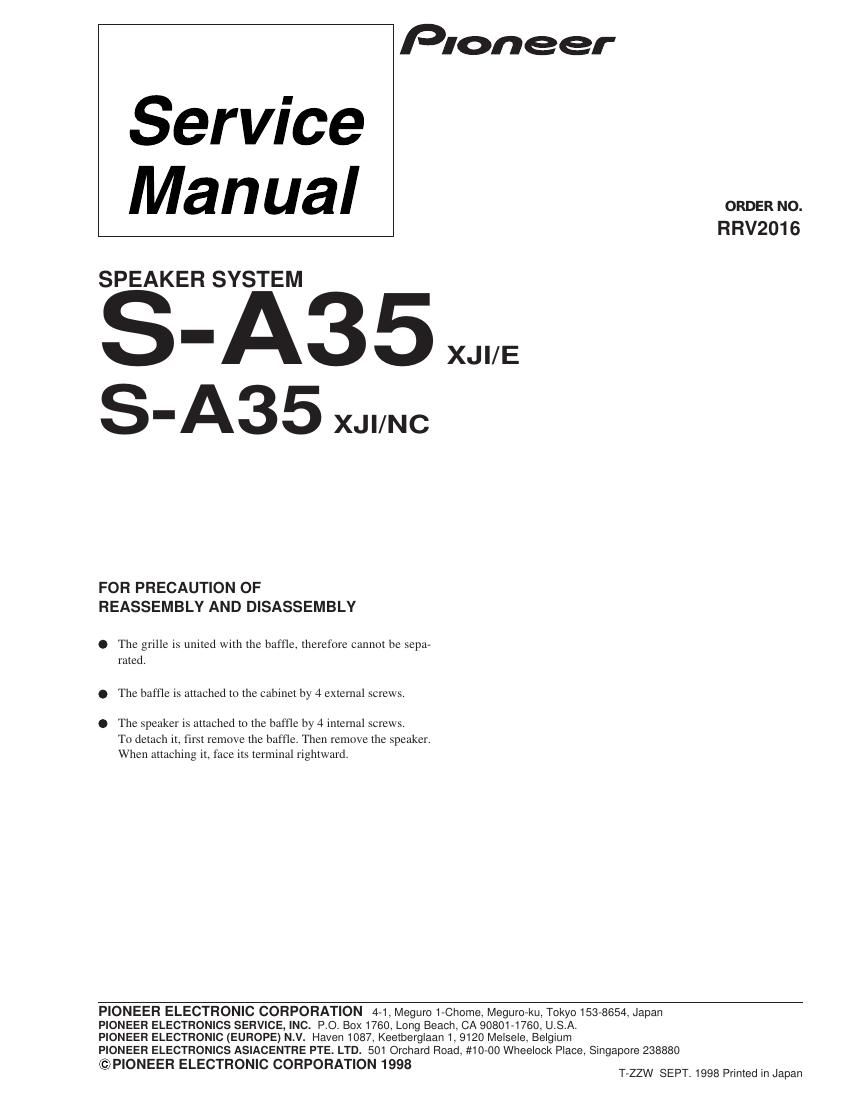

This is the 2 pages manual for pioneer sa 35 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer sa 35 service manual (Ocr-read)
Page 1
2 NSP CS ASSY (Surround) SMW1556 Screw (for Baffle) BYC40P130FZK Speaker D87CC45-53K Connecting Cord SDF1068 NSP Cover SES1018 Grille ASSY SMG1621 NSP Badge 38 SAM1442 NSP Grille Cloth SAS1440 NSP Baffle Board SNK2321 NSP Cabinet SNK2322 Screw (for Speaker) TTZ40P080FMC ( XJI/E Type ) NSP Stamped Model Label (Surround) SME2803 NSP Model Label (Surround) SAN2595 ( XJI/NC Type ) NSP Stamped Model Label (Surround) SME2855 NSP Model Label (Surround) SAN2651 Mark No. Description Part No. SCHEMATIC DIAGRAM Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST Mark No. Description Part No. S-A35 Operating Instructions SRD1199 (English/ Russian/ Spanish/ Portuguese/ French/ Arabian/ Traditional Chinese/ Simplified Chinese) Bottom Protector SHA2124 Top Protector SHA2125 Protection Mat SHC1429 Packing Case (XJI/E Type) SHG2116 Packing Case (XJI/NC Type) SHG2154 Master Carton (XJI/E Type) SHP1070 Master Carton (XJI/NC Type) SHP1072 NSP Polyethylene Bag S1 SHL1109 For Packing Connecting Cord (SDF1068) Speaker INPUT Gray/Black Gray
