Pioneer sa 35 lrc service manual

This is the 2 pages manual for pioneer sa 35 lrc service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 2
pioneer sa 35 lrc service manual

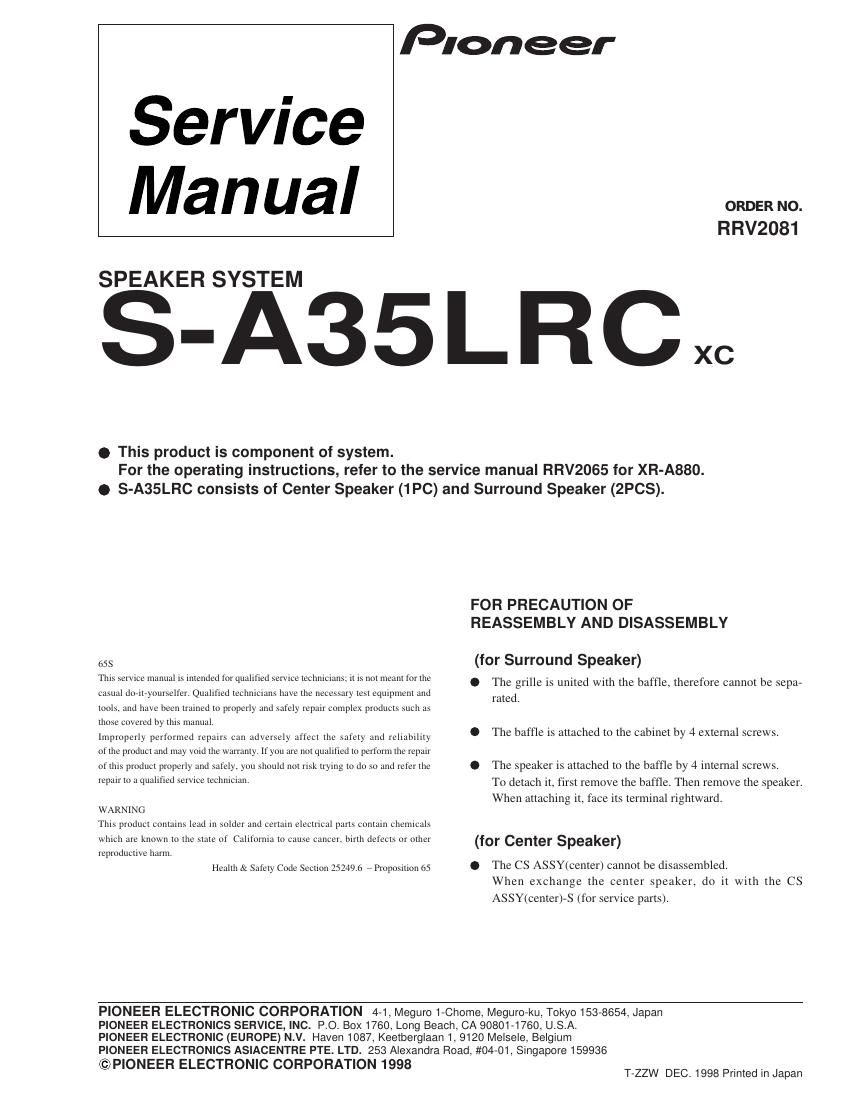

Extracted text from pioneer sa 35 lrc service manual (Ocr-read)


Page 1

2 CS ASSY-S (Center) 263781 NSP Stamped Model Label (Center) SME2903 NSP Model Label (Center) SAN2689 NSP CS ASSY (Center) SMW1550 Speaker D87DU54-51F NSP Connecting Cord SDF1069 NSP Grille ASSY SMG1622 NSP Badge 38 SAM1442 NSP Grille Cloth SAS1441 NSP Baffle Board SNK2324 NSP Sash SNK2330 Screw (for Speaker) TTZ40P080FMC NSP Stamped Model Label (Surround) SME2902 NSP Model Label (Surround) 263865 NSP CS ASSY (Surround) SMW1556 Screw (for Baffle) BYC40P130FZK Speaker D87CC45-53K Connecting Cord 263929 NSP Cover SES1018 Grille ASSY 263934 NSP Badge 38 SAM1442 NSP Grille Cloth SAS1440 NSP Baffle Board SNK2321 NSP Cabinet SNK2322 Screw (for Speaker) TTZ40P080FMC Mark No. Description Part No. Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST Mark No. Description Part No. S-A35LRC For Packing Top Protector 263796 Bottom Protector 263805 Protection Mat S4 263810 Packing Case 263825 NSP Polyethylene Bag S1 263830 Master Carton 263845 SCHEMATIC DIAGRAM Connecting Cord (SDF1069) Connecting Cord (263929) Speaker INPUT Black/White Black Center Speaker INPUT Gray/Black Gray Surround
