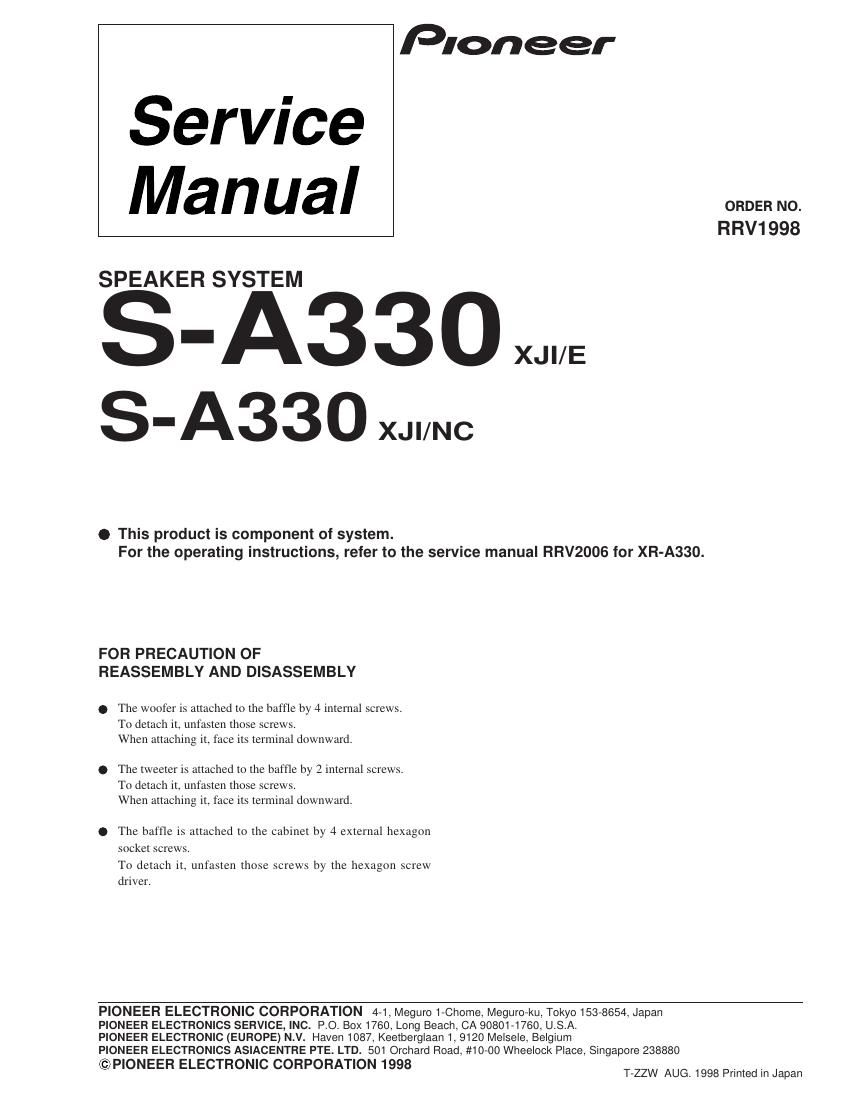

Pioneer sa 330 service manual
This is the 2 pages manual for pioneer sa 330 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer sa 330 service manual (Ocr-read)
Page 1
2 NSP Cabinet (L) SMM1803 NSP Cabinet (R) SMM1804 Network ASSY SWN1556 Gasket (length) SEC1380 Gasket (width) SEC1381 ( XJI/E Type ) NSP Stamped Model Label (L) SME2764 NSP Model Label (L) SAN2562 NSP Stamped Model Label (R) SME2765 NSP Model Label (R) SAN2563 ( XJI/NC Type ) NSP Stamped Model Label (L) SME2815 NSP Model Label (L) SAN2617 NSP Stamped Model Label (R) SME2816 NSP Model Label (R) SAN2618 Baffle ASSY (L) SXB1319 NSP Cosmetic Baffle (L) SNK2282 NSP Cosmetic Ring ASSY (L) SXB1321 NSP Punching Net SNC1159 NSP Cosmetic Ring SNK2284 Baffle ASSY (R) SXB1320 NSP Cosmetic Baffle (R) SNK2283 NSP Cosmetic Ring ASSY (R) SXB1321 NSP Punching Net SNC1159 NSP Cosmetic Ring SNK2284 Mark No. Description Part No. Network ASSY (SWN1556) SCHEMATIC DIAGRAM For Packing Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST Mark No. Description Part No. S-A330 Speaker (Woofer) B13EU70-51D Speaker (Tweeter) E52AP39-53D Screw (for Tweeter) BPZ30P080FMC Screw (for Woofer) BPZ40P100FMC Hexagon Socket Screw (for Baffle) SBA1161 Top Protector SHA2110 Bottom Protector SHA2111 Protection Sheet S3 SHC1731 Spacer SHD1035 NSP Polyethylene Bag S4 SHL1196 Packing Case (XJI/E Type) SHG2094 Packing Case (XJI/NC Type) SHG2123 Woofer 2.7µF Tweeter INPUT Red White Red Black BlackRed
