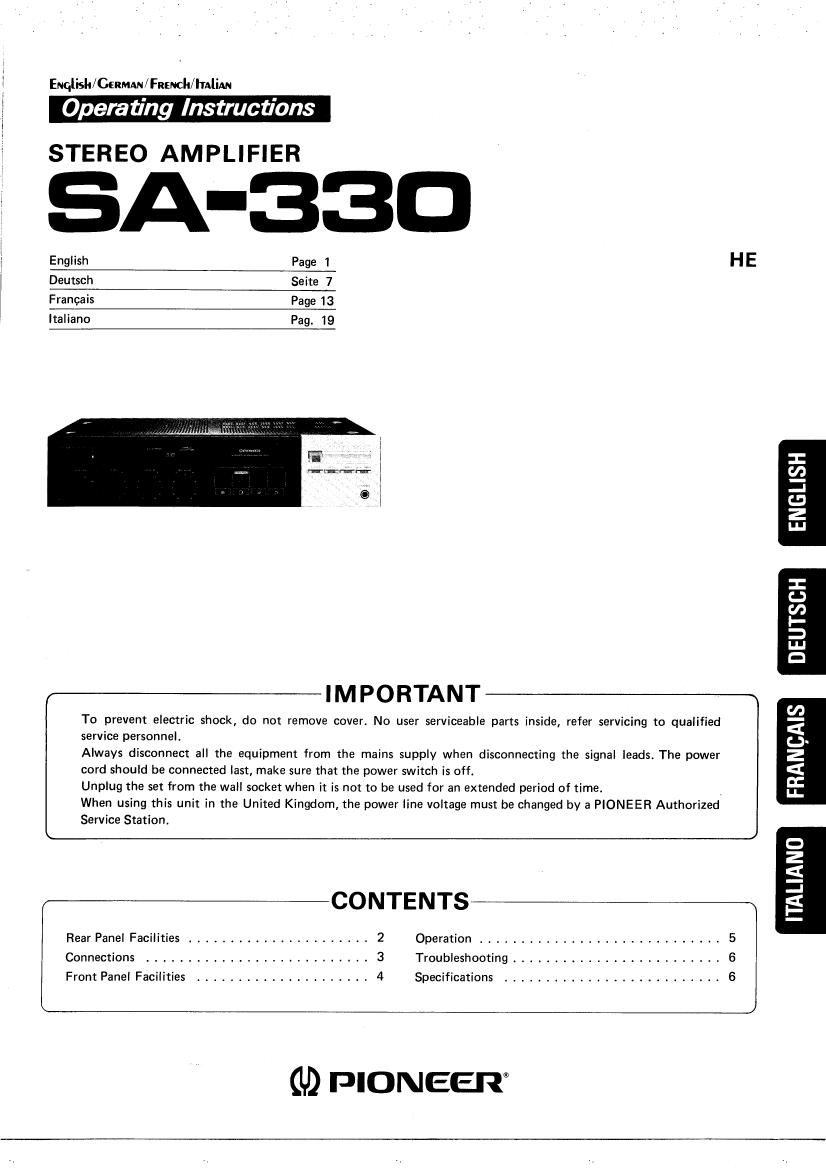

Page 1

English/ GERMAN / FRENdi/ ITAliAN
QmmflhghmMWfiMw

STEREO AMPLIFIER

A-33D

English Page 1 HE
Deutsch Seite 7
Francais Page 13
ltaliano Fag. 19

IMPORTANT

To prevent electric shock, do not remove cover. No user serviceable parts inside, refer servicing to qualified
service personnel.

Always disconnect all the equipment from the mains supply when disconnecting the signal leads. The power
cord should be connected last, make sure that the power switch is off.

Unplug the set from the wall socket when it is not to be used for an extended period of time.
When using this unit in the United Kingdom, the power line voltage must be changed by a PIONEER Authorized
Service Station.

3:
Z!
-l
{D
Z
I.
3:
U
U)
l-
D
I.
D

D

Z

S.

--l

CONTENTS 5
Rear Panel Facilities ...................... 2 Operation ............................. 5
Connections 3 Troubleshooting ......................... 6

Front Panel Facilities 4 Specifications .......................... 6

(U) PIONEERQ

Page 2

REAR PANEL FACILITIES

(D TAPE 2/ADAPTOR ( ) TERMINALS

Connect the recording (input) cords of a graphic equalizer or a
second tape deck to these terminals.

(2 TAPE 2/ADAPTOR ( ) TERMINALS

Connect the playback (output) cords of a graphic equalizer or a
second tape deck to these terminals.

C3) GND TERMINAL

Connect the ground wire of the turntable to this terminal.

(4) PHONO TERMINALS

Connect the turntable's output cords to these terminals.

@ TUNER TERMINALS

Connect the tuner's output cords to these terminals.

© AUX/VIDEO TERMINALS

A television tuner or the audio output of a VTR (Video Tape
Recorder) can be connected here. The terminals can also be used
as spare terminals for connecting other equipment.

® TAPE1 I-) TERMINALS

The tape deck's recording (input) cords are connected herat

TAPE 1 I-) TERMINALS

The tape deck's playback (output) cards are connected here.

© PHONES TERMINALS

When this amplifier is housed in a Pioneer Stereo Flack, the
rack's headphones cord are plugged in here.

SPEAKERS TERMINALS A
Connect the first pair of speakers to these terminals. When facing
the system in the listening position, connect the right speaker to
the R terminals and the left speaker to the L terminals.

® SPEAKERS TERMINALS B

Connect the second pair of speakers to these terminals.

® POWER CORD

Plug into a household outlet (or the outlet of an audio timer).

NOTE:

If a humming noise should be heard during operation, first set the
power switch to OFF, and reverse the pin connections of the
power plugs on each of the components connected to the ampli-
fier and of the amplifiers power plug connected to the houshold
AC outlet and reconnect them to the power outlets.

® AC OUTLETS (SWITCHED)
Power supplied through these outlets is turned on and off by the
amplifier's POWER switch. Total electrical power comsumption of
connected appliances should not exceed 80W.

Ac OUTLET (UNSWITCHED)
Power flows continually to this outlet, regardless of whether
amplifier is switched ON or OFF. Electrical power consumption
of the connected appliance should not exceed 100W.

NOTE:

Do not connect appliances with high power consumption such
as heaters, irons, or television sets to the AC OUTLETS. Thls can
cause the amplifier to malfunction.
