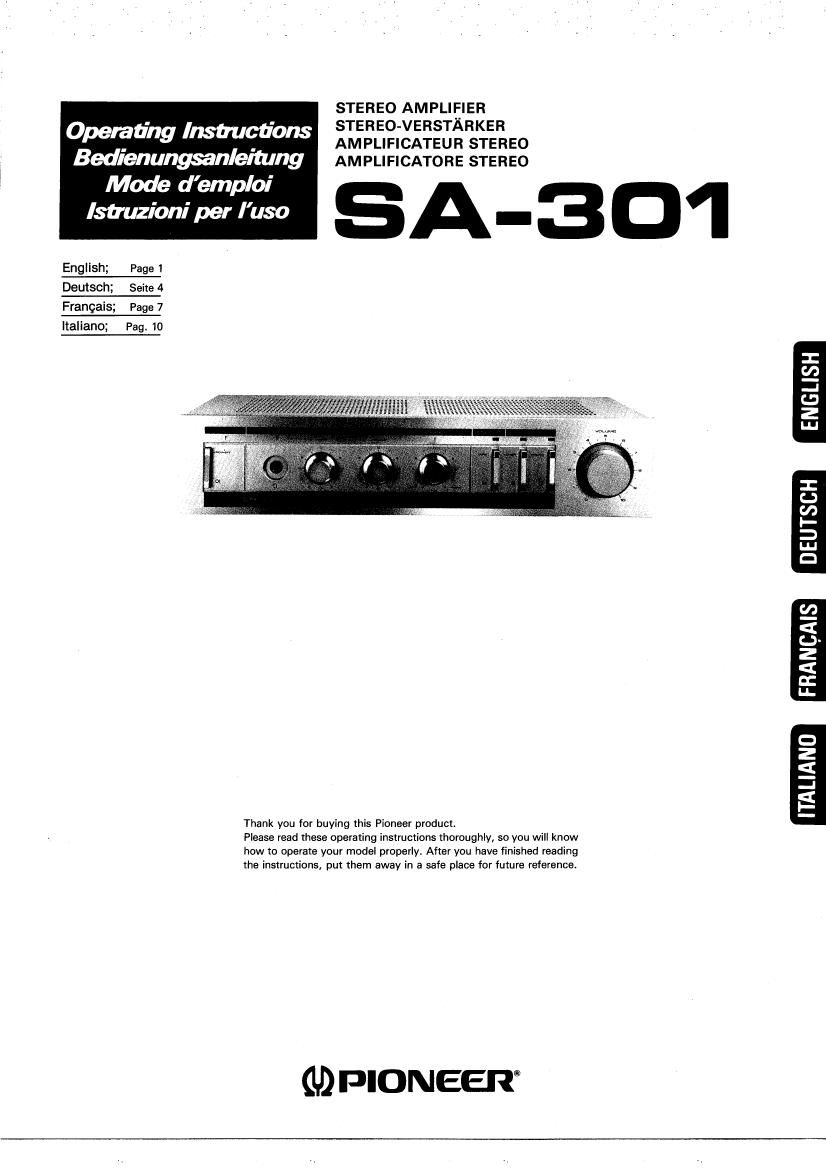

Page 1

Operating Instructions
Bedienungsanleitung

Mode demploi
Istruzioni per Iuso

English; Page 1
Deutsch; Seite 4
Franqais; Page 7
ltaliano; Pag. 1o

STEREO AMPLIFIER
STEREO-VERSTARKER
AMPLIFICATEUR STEREO
AMPLIFICATORE STEREO

A-301

Thank you for buying this Pioneer product.

Please read these operating instructions thoroughly, so you will know
how to operate your model properly. After you have finished reading
the instruciions, put them away in a safe place for future reference.

(U) F'ICJNEER®

D
Z
S
--l
E

Page 2

FRONT PAN EL FACILITIES

-- leale
@1010 6) EW

0 POWER SWITCH (POWER 0|)
0 POWER INDICATOR
0 PHONES JACK

Use this jack for listening to the program source through your head-
phones. Connect the plug on the headphones properly to this jack.
Once connected, no sound will be heard through the speakers.

NOTE:
Get into the habit of turning down the volume before plugging in
the headphones. Loud sounds can damage your ears.

0 BASS CONTROL

This is used to adjust the bass (low-frequency) sound.

CONNECTION DIAGRAM

a TREBLE CONTROL

This is used to adjust the treble (high-frequency) sound.

6 BALANCE CONTROL
This control should normally be set to the center position, when the
output from the left and right speakers or headphones is not the
same, adjust by turning the control clockwise or counterclockwise.

0 TAPE/MONITOR SWITCH (MONITOR)
Set this switch to ON when using a tape deck or a graphic equalizer
(or any equipmentl connected to the TAPE/MONITOR terminals.
0 FUNCTION SWITCH
This is used to select the program source which is to be heard.
PHONO: For playing records on the turntable connected to the
PHONO terminals.
TUNER: For listening to broadcasts on a tuner connected to the
TUNER terminals.

9 VOLUME CONTROL
This is used to adjust the volume of the speakers and headphones.
® INDICATORS (FUNCTION and MONITOR)

The indicator corresponding to the selected function switch or
TAPE/MONITOR switch lights.

(To TAPE terminals)

M" 0mm!

(To PHONO terminals)

(To TUNER terminals) 8

.l

Left

TROUBLESHOOTING

SpeakerI system

Right

AC wall socket
3 (AC 720 Volts~l

If you think that something has gone wrong with your unit, check out the points below before calling in the servicemen. The cause of the trouble may I

improper

maintenanos or operation. If the trouble is still not remedied even after the checks have been carried out, contact an authorized PIONEER service station.

Symptom Cause

Remedy

No sound even when FUNC- 0 Power switch OFF.

TION switch ls set. 0 Disconnected power cord.

0 VOLUME control at minimum.
0 Headphones plug connected.

0 Set to ON.

- Re-connect properly

omte VOLUME control to me right.

isoonnect

' Set the TAPE/ MONITOR switch to the OFF position

0 The TAPE/ MONITOR switch is in the ON position.
0 The FUNCTlON switch is not set to the program source
you want to listen to.

0 Set so that the selector corresponds to the program
source.

No sound from one speaker

0 BALANCE control turned too far to the left or right posi-
tion.
0 Disconnected speaker cord

0 Set conuol to center position

0 Re-oonnect properly

Sound I: distorted

0 VOLUME control is set too high.
0 BASS control is turned too high.

0 Rotate VOLUME control to left.
0 Rotate towards "0.
