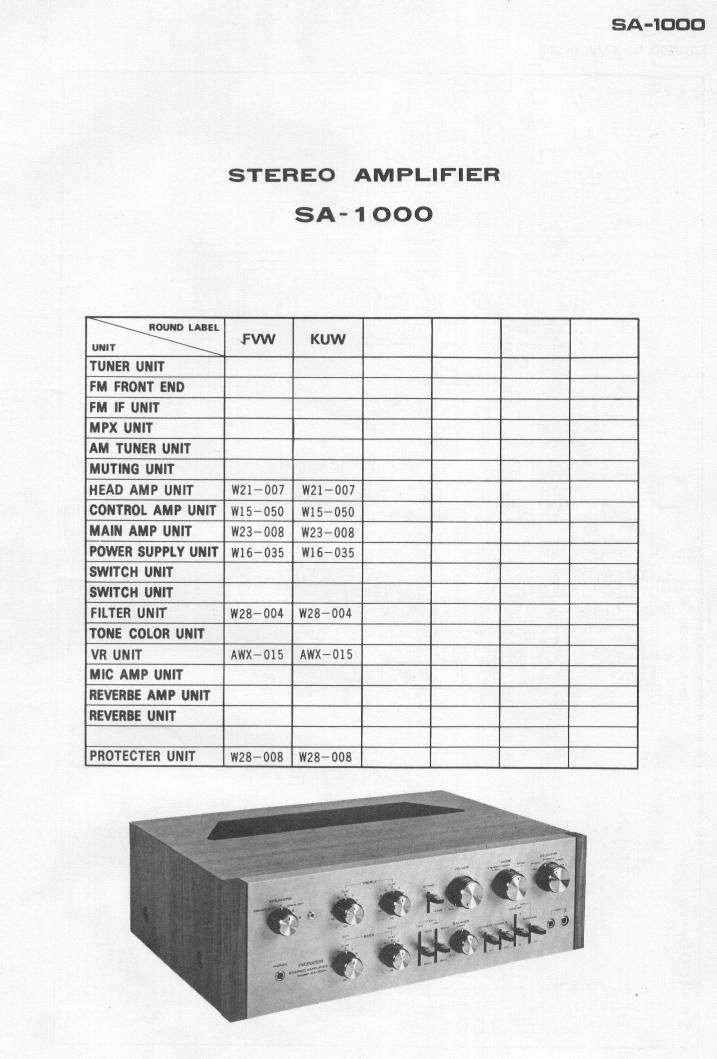

STEREO AMPLIFIER

SA-IDDD

SA- 1 000

Roman LABEL
UNIT FVW KUW
TUNER UNIT
FM FRONT END
FM IF UNIT
MPX UNIT
AM TUNER UNIT
MUTING UNIT
HEAD AMP UNIT W21-007 W21-007
CONTROL AMP UNIT WIS-050 WIS-050
MAIN AMP UNIT W23-008 W23-008
POWER SUPPLY UNIT W16-035 WIS-035
SWITCH UNIT
SWITCH UNIT
FILTER UNIT W28-004 W28-004
TONE COLOR UNIT
VR UNIT AWX-015 MIX-015
MIC AMP UNIT
REVERBE AMP UNIT
REVERBE UNIT
PROTECTER UNIT wza-ooa W28-008
