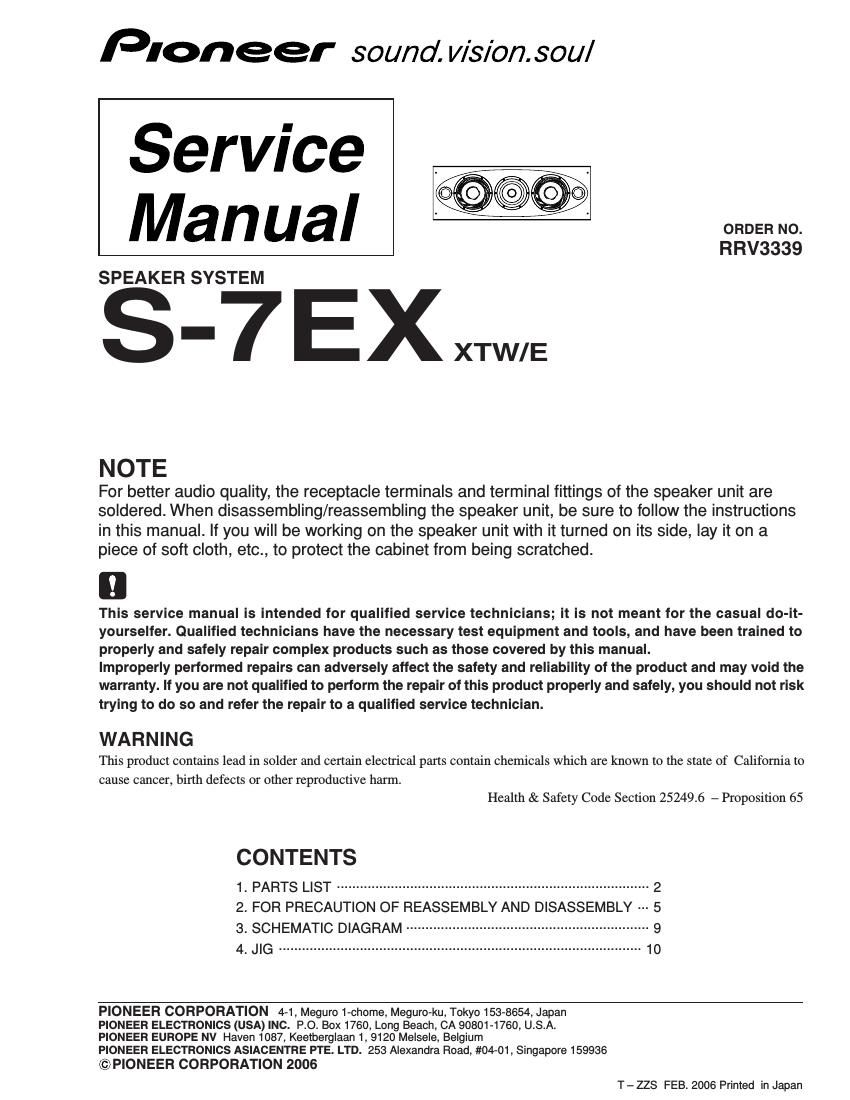

pioneer s 7 ex service manual

Extracted text from pioneer s 7 ex service manual (Ocr-read)


Page 1

2 1 23 4 1234 C D F A B E S-7EX 8 617 (x4) 1-(1/2) 11 4 12 13 2-(1/2)16 (x4)1532 10 2-(2/2) 3-(2/2)Speaker system9 71-(2/2) 3-(1/2) 14 5 18 (x2) 1. PARTS LIST 1.1 PACKING 1Top Protector SHA6084 2Bottom Protector SHA6085 3Middle Protector SHA6086 4Protector SHA6087 5Protector Sheet SHA6094 6Protector (grille) SHB6035 7Protection Sheet SHC1845 8Protection Sheet SHC6038 9Protection Sheet SHC6041 10 Packing Case SHG6209 NSP 11 Accessory Set SME6039 12 Protection Sheet SHC6042 13 Speaker Base SMS6018 NSP Fung Nut M6 SBN1068 NSP Non Skid Pad SEC6071NSP 14 Acceccory Set SME3718 Operating lnstructions SRD1312 (English, French, Spanish, Simp-Chinese, Trad-Chinese) NSP Accessory Set SME6041 Polyethylene Bag S0 SHL1259 Finishing Screws (for grille) SLH6013 Fastening Screws (for grille) SLH6016 Polyethylene Bag S2 SHL1265 NSP 15 Accessory Set (for grille holes) SME6047 Caps (for grille holes) SEC2068 Polyethylene Bag S0 SHL1259 16 Speaker Spikes SBA6053 17 Spike Bases SLA1057 NSP 18 Label Serial SRW1112 PACKING Parts List NOTES : ÷ Parts marked by NSP are generally unavailable because they are not in our Master Spare Parts List. ÷The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Mark No. Description Part No. Mark No. Description Part No.

Page 2

3 1 234 1 23 4 C D F A B E S-7EX C MID lower side WF lower sideWF lower side TW Upper side Upper side for the HPF input terminals Bottom side for the LPF input terminals 43 44 44 52 (x4) 39 51 (x4) 45 (x4) 31 50 (x6 /unit) 49 48 A A' Upper side Lower side B B' Connect the cords with white tape to the midrange unit.Connect the cords with black tape to the midrange unit. : Refer to the adhesive points on page 7 1.2 SPEAKER SYSTEM NSP 31 Cabinet SMM2027 NSP Fung Nut M6 (for stand) SBN1060 NSP Fung Nut M4 (for grille) SBN1066 39 Network Assy (low pass) SWN1760 NSP 43 Gasket (for MID/TW) SEC2031 NSP 44 Gasket (for WF) SEC2032 NSP 45 Gasket (cabinet - input terminals) SEC2065 NSP Acoustic Absorbent SMT1313 (behind chamber, inside chamber) NSP Acoustic Absorbent SMT1314 (WF - chamber) NSP Acoustic Absorbent SMT1316 (WF upper and lower side board) NSP Acoustic Absorbent SMT1320 (chamber/ holes, input terminals ) NSP Acoustic Absorbent SMT1323 (behind duct, black) SPEAKER SYSTEM Parts List NSP Acoustic Absorbent SMT1324 (duct side, roll) NSP Acoustic Absorbent SMT1326 (fold half both side, inside chamber) NSP Acoustic Absorbent SMT1327 (around duct board) NSP Acoustic Absorbent SMT1328 (duct board short side) 48 Speaker (WF) B18IU60-52H 49 Speaker (MID/TW) A14GR55-52DX 50 Hexagon Socket Screw SBA1225 (for WF, MID/TW) 51 Screw (for NW assy) SBA1260 52 Screw (for closure panel) SBA1261 Mark No. Description Part No. Mark No. Description Part No.
