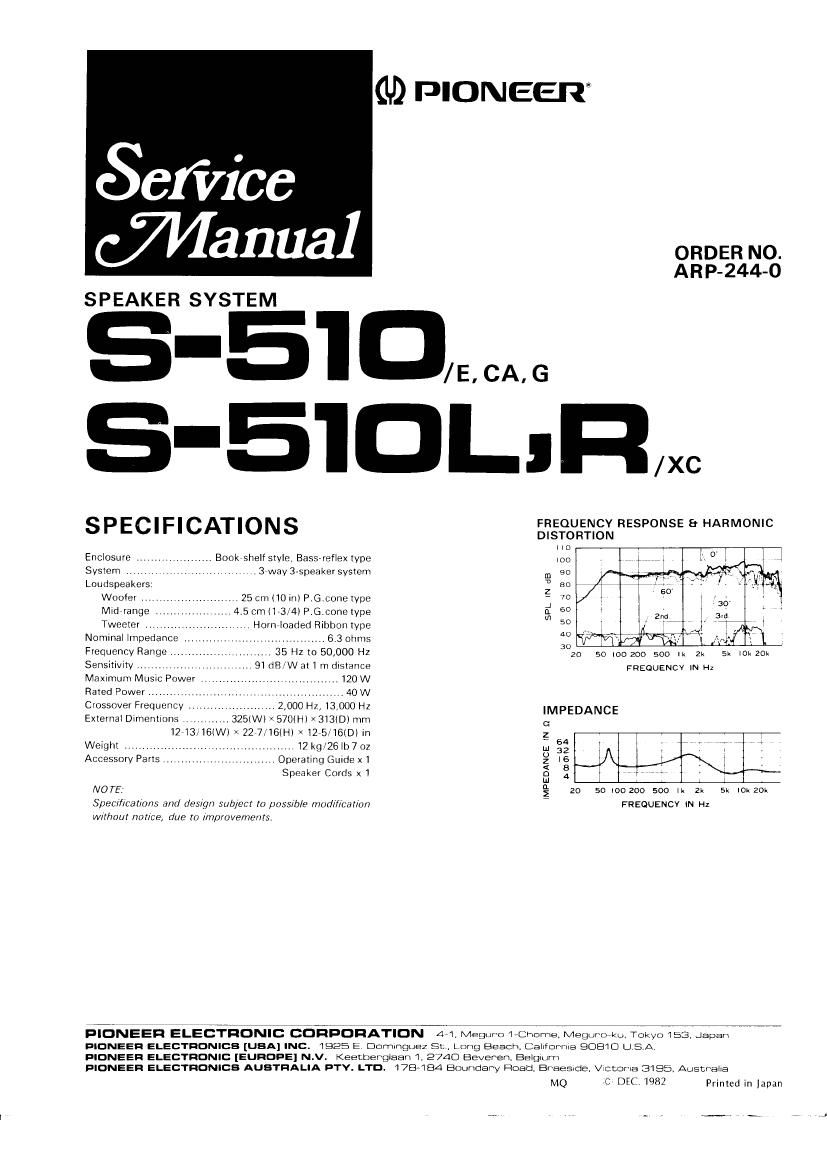

pioneer s 510 service manual

Extracted text from pioneer s 510 service manual (Ocr-read)


Page 2

5-510/5, CA, G
s-s1oL, n/xc

EXPLODED VIEW AND PARTS LIST

Exploded View

NOTES:

0 Parts withnulparl number cannot be supplied,

0 For your Parts Slack Control, [he fast moving items are indicated with the marks n and it *2 GENERALLY
MOVES FASTER THAN 1*.
This classification shall be adjusted by each distributor because it depends on model number, temperature, humidity, etc.

Parts List
Mark No. Part No. Dascfiption Mark No. Part No. Description
1. SMGGD4 Grill assembly 7. 503043 Attenuator
2, SWN-374 Network assembly I s. 25-764A Woofer
SWN-BBO Network assembly (XC model ** 9. 45-721 A Midrrange
only) ** 10. FT-R13A Tweeter
3. SN K689 Flange 11. SBA-125 Screw
4. SAX-262 Level control name plate SBA-115 Screw (XC model)
5. SKX-012 Input terminal plate 12. SBA-133 Screw
SKX-OM Input terminal plate lXC SBA-115 Screw lXC model only)
model only) 13. SBAv142 Screw
BYC40P250FMC
6. SAA-059 Knob lXC model only)
14. SAX-271 Level control name plate
(For right side system at models
E, CA and XCl
