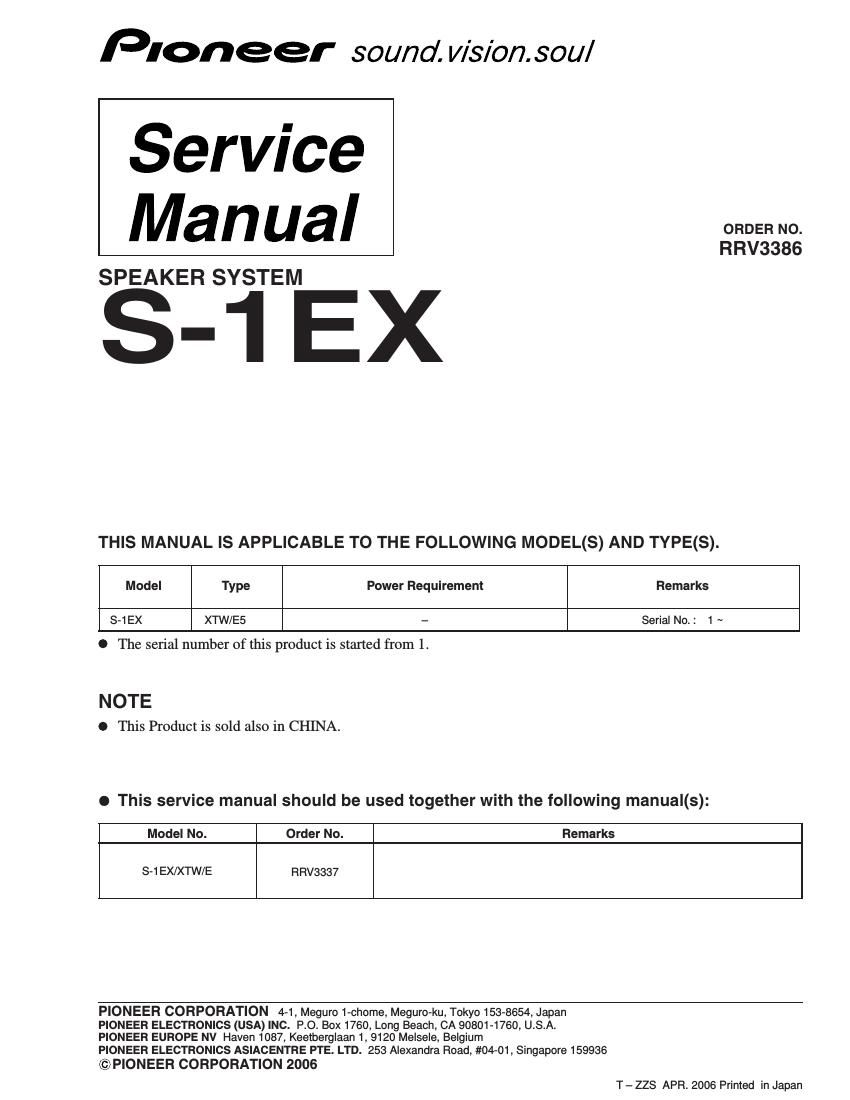

Pioneer s 1 ex service manual

This is the 2 pages manual for pioneer s 1 ex service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 2
pioneer s 1 ex service manual

Extracted text from pioneer s 1 ex service manual (Ocr-read)


Page 1

2 1 23 4 1234 C D F A B E S-1EX 1. CONTRAST OF MISCELLANEOUS PARTS 7 CONTRAST OF TABLE There is no difference between S-1EX/XTW/E5 and S-1EX/XTW/E in terms of part structure. Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: NOTES : -The artwork printed on the Packing Case is different for the model which is RoHS compliant and the model which is not RoHS compliant. NSP 11 Packing Case SHG2759 Packing Case SHG6207 NSP Label for Packing Case - - - - - - NSP 75 Model Label SAN3872 for China Model Only Mark No.Description Part No.
