Page 1

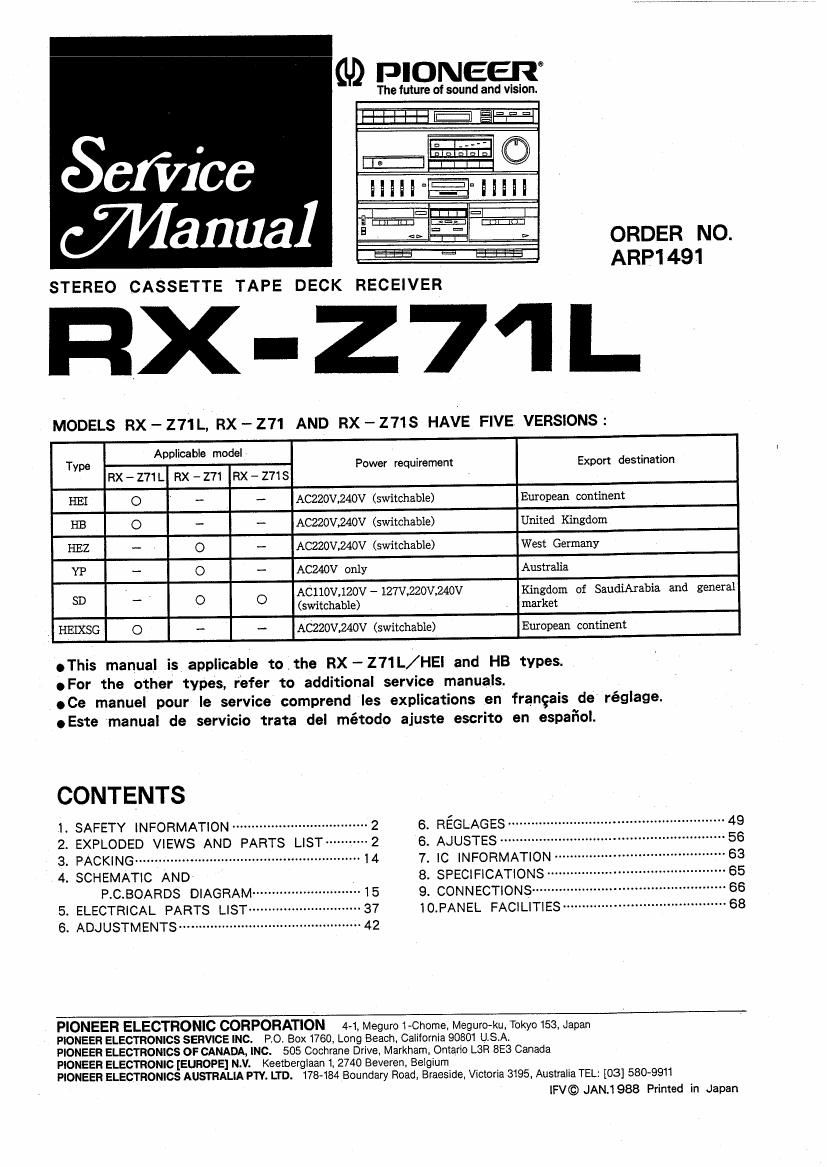

(lb PIONEER

The future of sound and vlsion.

ORDER NO.
ARP1491
STEREO CASSETTE TAPE DECK RECHVER

FlX-Z7IL

MODELS RX - Z71 L, RX - 271 AND RX - 271$ HAVE FIVE VERSIONS :

Applicable modelr _
Type Power requirement Export destination
RX-Z71L RX-Z71 FIX-Z718 .
ml 0 ' -- .. ACZZOV.240V (switchable) European continent
HE G _ - AC220V,240V (switchable) United Kingdom
HEZ - O -- AC220V.240V (switchable) West Germany
YP -- O -- ACPAOV only Australia
SD '_ . O O AC110V,12OV-127V.220V.240V Kingdom of SaudiArabia and general
(switchable) . market
I-LEIXSG O -- - AC220V.240V (switchable) European continent

.This manual is applicable to,the RX-Z71L/HEI and HB types.

oFor the other types, refer to additional service manuals.

oCe manuel pour le service comprend les explications en frangais de réglage.
oEste manual de servicio trata del método ajuste escrito en espafiol.

CONTENTS
1. SAFETY INFORMATION ------------------------ 6. REGLAGES-
2. EXPLODED VIEWS AND PARTS LIST 6. AJUSTES 56
3. PACKING .................................................... 7. IC INFORMATION" 53
4. SCHEMATIC AND 8. SPECIFICATIONS- 85
P.C.BOARDS DIAGRAM 9. CONNECTIONS ........ 66
ELECTRICAL PARTS LIST- lO.PANEL FACILITIES ---------------- '68

991

ADJUSTMENTS ..................

PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku. Tokyo 153, Japan

PIONEER ELECTRONICS SERVICE INC. PO. BOX 1760, Long Beach, Calilurnla 90801 USA.

PIONEER ELECTRONICS OF CANADA, INC. 505 Cochrane Drive, Markham, Ontario LSR 8E3 Canada

PIONEER ELECTRONIC [EUROPE] N.V. Keetberglaan 1, 2740 Beveren, Belgium

PIONEER ELECTRONICS AUSTRALIA PTV. LTD. 178-184 Boundary Road, Braeside, Victoria 3195, Australia TEL: [03} 580-9911

|FV© JANA 988 Printed in Japan

Page 2

1 . SAFETY INFORMATION

l-(FOR USA MODEL ONLY)

1. SAFETY PRECAUTIONS

The following check should be performed for the continu-
ed protection of the customer and service technician.
LEAKAGE CURRENT CHECK

Measure leakage current to a known earth ground (water
pipe, conduit, etc.) by connecting a leakage current tester
such as Simpson Model 2292 or equivalent between the earth
ground and all exposed metal parts of the appliance (input/
output terminals, screwheads, metal overlays, control shaft,
etc.). Plug the AC line cord of the appliance directly into a 120 V
AC 60 Hz outlet and turn the AC power switch on. Any current
measured must not exceed 0.5 mA.

Reading should
not be above
0.5 mA

Leakage
current
tester

Device
under
test

Test all
exposed metal
surfaces

Qt 2-wire cord

@ Also test with
plug reversed
(Using AC adapter
plug as required)

AC Leakage Test

ANY MEASUREMENTS NOT WITHIN THE LIMITS OUT-
LINED ABOVE ARE INDICATIVE OF A POTENTIAL SHOCK
HAZARD AND MUST BE CORRECTED BEFORE RETURNING
THE APPLIANCE TO THE CUSTOMER.

2. PRODUCT SAFETY NOTICE

Many electrical and mechanical parts in the appliance have
special safety related characteristics, These are often not evi-
dent from visual inspection nor the protection afforded by
them necessarily can be obtained by using replacement com-
ponents rated for voltage, wattage, etc. Replacement parts
which have these special safety characteristics are identified
in this Service Manual.

Electrical components having such features are identified
by marking with a A on the schematics and on the parts list in
this Service Manual.

The use of a substitute replacement component which
does not have the same safety characteristics as the PIONEER
recommended replacement one, shown in the parts list in this
Service Manual, may create shock. fire, or other hazards.

Product Safety is continuously under review and new in-
structions are issued from time to time. For the latest informa-
tion, always consult the current PIONEER Service Manual. A
subscription to, or additional copies of, PIONEER Service
Manual may be obtained at a nominal charge from PIONEER.

NOTES:
oParts without part number cannot be supplied.

2. EXPLODED VIEWS AND PARTS LIST

oThe A mark found on some component parts indicates the importance of the safety factor of the part. Therefor, when

replacing. be sure to use parts of identical designation.

oFor your parts Stock Control, the fast moving items are indicated with the marks ** and *.

** GENERALLY MOVES FASTER THAN *

This classification shall be adjusted by each distributor because it depends on model number, temperature, humidity, etc.
.Parts marked by ©" are not always kept in stock. Their delivery time may be longer than usual or they may be unavailable.

2.1 Exterior

Parts List

Mark No. Part No. Description
A k 1 ATSllZS
A 2 AKP 1024
A AKPtoza
A** 3 AEK- 017

Power transformer (T1)
1? AC socket (PEI type)
1P AC socket (HB type)
Fuse (TZA/ 250V,FU5,FU6)
(HEI type)

Fuse (TZA/ 250V,FU5.FU6)
(HE type)

A** AEK- 511

Mark No. Part No. Description

Fuse (T1.25A/250V.FU1)
(HIEI type)

Fuse (T1.25A/250V,FU1)
(HB type)

Fuse (T1A/250V;FU2)
(HEI type only)

Akk 4 AEK- 018
A** AEK- 509
A** 5 AEK 402
