Extracted text from pioneer rt 1020L Brochure (Ocr-read)

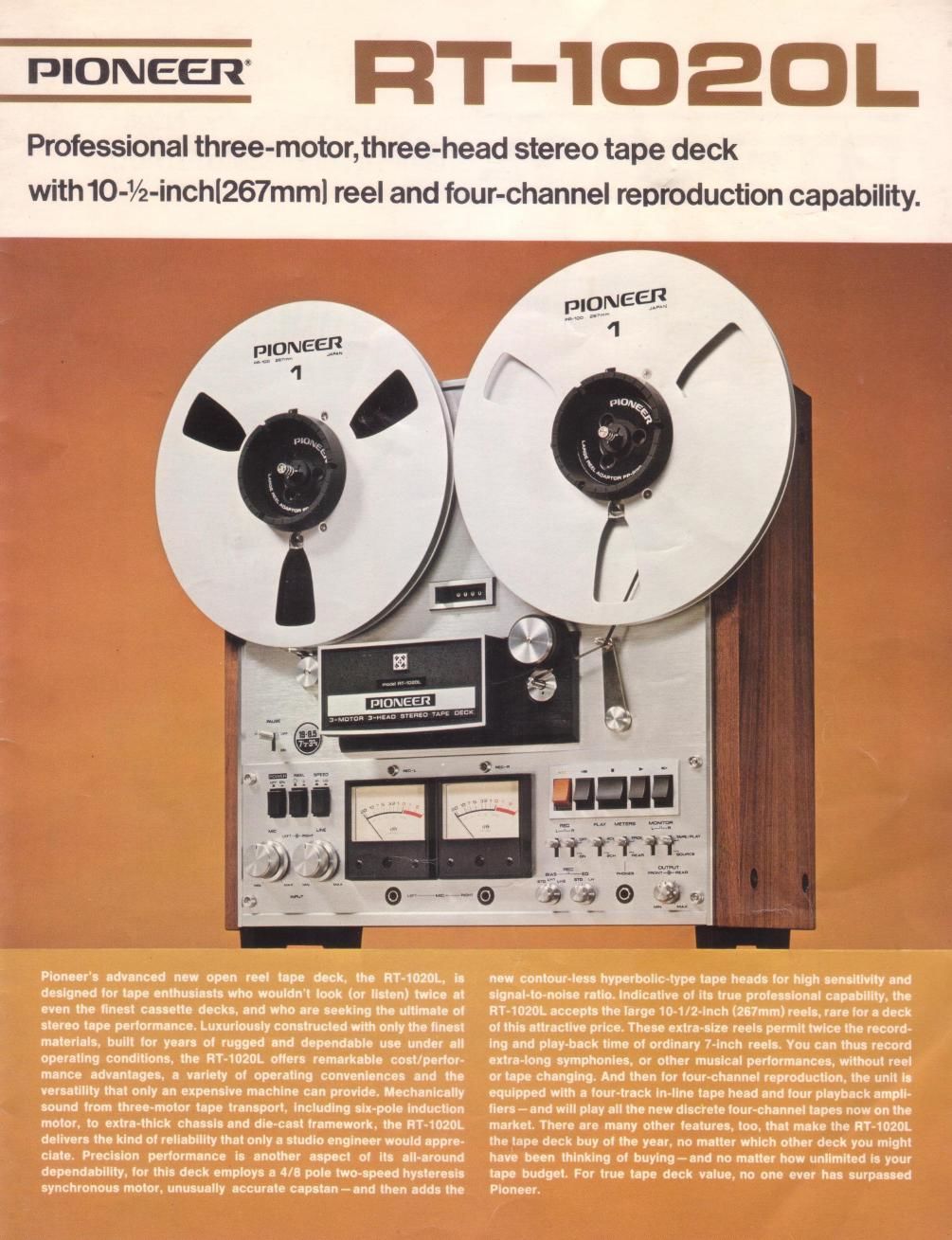

Page 1
Professional three-motor,three-head stereo tape deck
with 10-1/2-inchl267mml reel and four-channel reproduction capability.
Page 2
T-IDEDL
FOUR-DIGIT TAPE COUNTER
RECORDING INDICATOR (LIGHT EMITTING DIODE)
HEAD COVER
STAINLESS STEEL ROLLER
WITH HIGH-PRECISION BEARINGS
(EFFECTIVE FOR REDUCING WOW & FLUTTER)
ONE TOUCH ADJUSTMENT.-
TVPE REEL CRAMPER
EEQNEQE
MICROPHONE JACKS
TAPE-SPEED SELECTOR
LINE INPUT LEVEL CONTROL
REEL-SIZE SELECTOR
MIC. INPUT LEVEL CONTROL
POWER SWITCH
LOCKABLE PAUSE LEVER SWITCH
CAPSTAN INCH-ROLLER
10-1 [2' REEL ADAPTOR
TENSION-ARM
DIRECT-CHANGEABLE
OPERATION BUTTONS
MONITOR SWITCHES
OUTPUT LEVEL CONTROLS
(FRONT, REAR)
I?!OI_'\IEEI3~
FRONT/REAR METER-CHANGE SWITCH
HEADPHONES JACK
PLAYBACK MODE SWITCH (2-CH., 4-CH.)
EOUALIZER SELECTOR SWITCH
BIAS SELECTOR SWITCH
RECORDING MODE SWITCH
LEVEL METERS
