Pioneer RS P90 service manual

Page 1

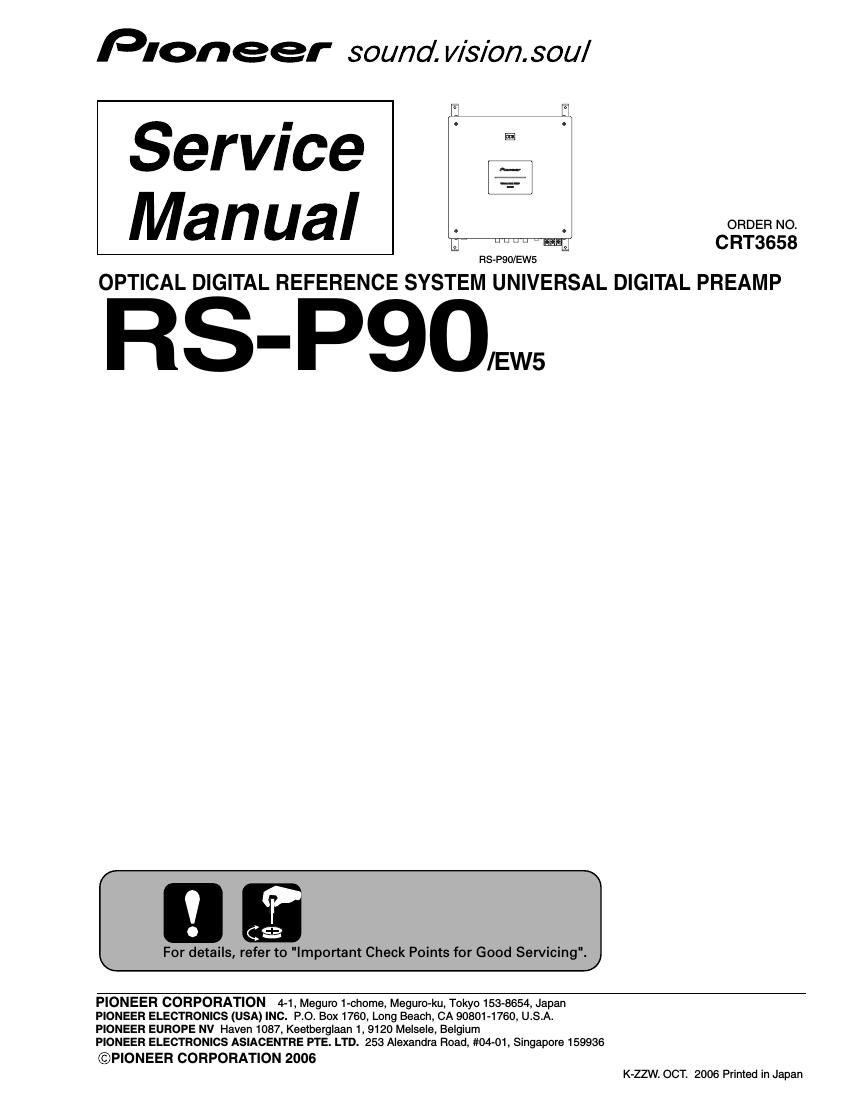

Pioneer sound. vision. sou/

Service
Manual _ errant;

OPTICAL DIGITAL REFERENCE SYSTEM UNIVERSAL DIGITAL PREAMP

RS-PQO...

E

For details, refer to "Important Check Points for Good Servicing".

PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan

PIONEER ELECTRONICS (USA) INC. PO. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
OPIONEER CORPORATION 2006

K-ZZW. OCT. 2006 Printed in Japan

Page 2

SAFETY INFORMATION

This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.
Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair
complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.
If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so
and refer the repair to a qualified service technician.

. Service Precautions n

1. You should conform to the regulations governing the product (safety, radio and noise, and other regulations),
and should keep the safety during servicing by following the safety instructions described in this manual

2. Be careful in handling ICs. Some le such as MOS type are so fragile that they can be damaged by electrostatic
induction.

RS-PQO/EWS
1 I 2 3 I 4
