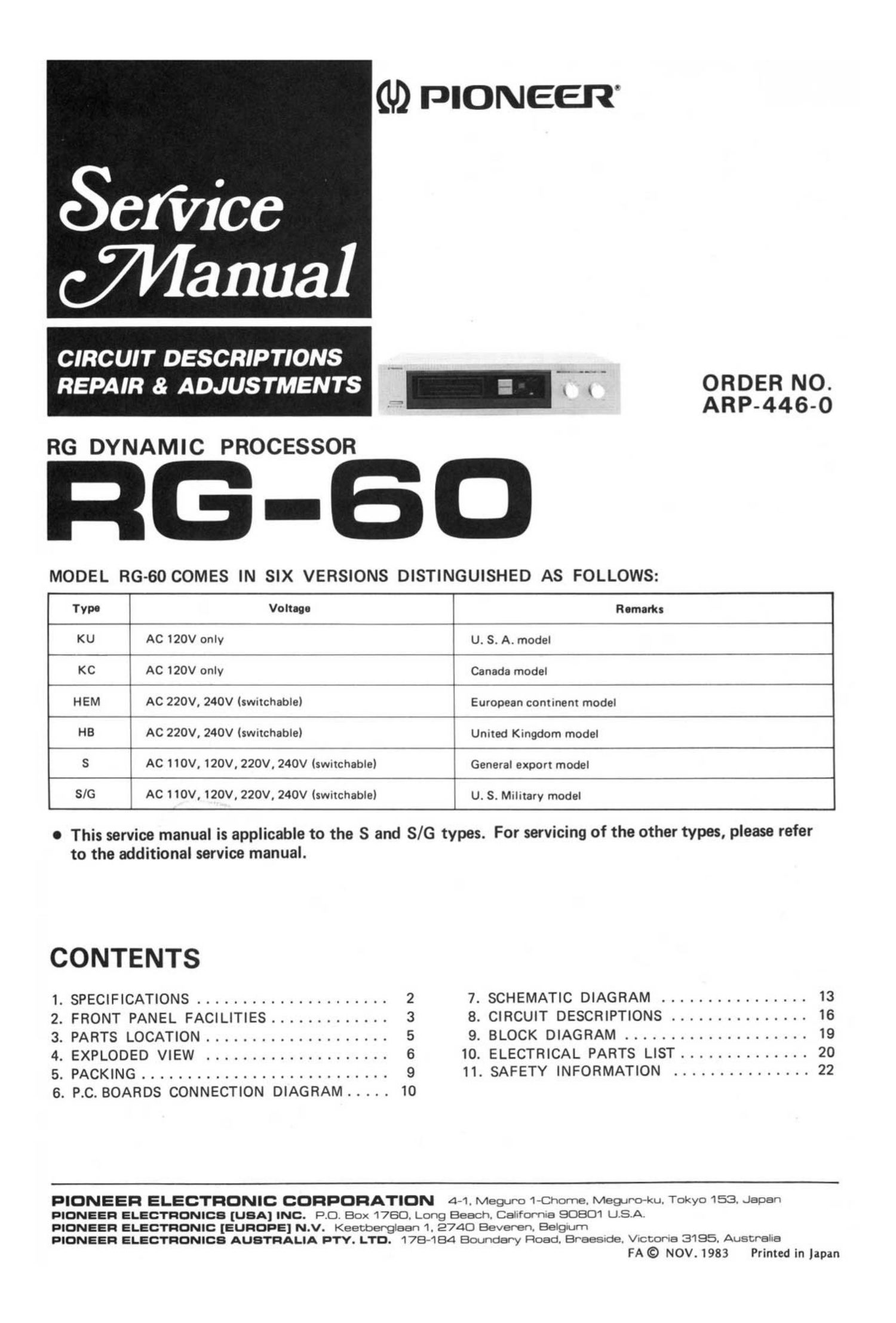

Page 1

(U) PIONEER

entice

Wanna]

CIRCUIT DESCRIPTIONS

REPAIR & ADJUSTMENTS ' ORDER NO.
. - ARP-446-0

RG DYNAMIC PROCESSOR

MODEL RG-60 COMES IN SIX VERSIONS DISTINGUISHED AS FOLLOWS:

Typo Voltage Remarks
KU AC 120V only U. S. A. model
KC AC 120V only Canada model
HEM AC 220V, 240V (switchable) European continent model
H8 AC 220V, 24CV V(swrtchab|ke) fl 7 ' ' ' United Kingdom model
S AC 110V, 120V, 220V, 240V (swutchable) General export model
S/G AC 110V, 120V, 220V, 240V (swutchable) U. S. Military model

0 This service manual is applicable to the S and 8/6 types. For servicing of the other types, please refer
to the additional service manual.

CONTENTS

1. SPECIFICATIONS ..................... 2 7. SCHEMATIC DIAGRAM ................ 13
2. FRONT PANEL FACILITIES ............. 3 8. CIRCUIT DESCRIPTIONS ............... 16
3. PARTS LOCATION .................... 5 9. BLOCK DIAGRAM .................... 19
4. EXPLODED VIEW .................... 6 10. ELECTRICAL PARTS LIST .............. 20
5. PACKING ........................... 9 11. SAFETY INFORMATION ............... 22
6. P.C. BOARDS CONNECTION DIAGRAM ..... 10

FIONEER ELECTRONIC CORPORATION 4-1. Meguro 1-Chome, Meguro-ku. Tokyo 1513. Japan
PIONEER ELECTRONICS [USA] INC. PO. Box 1780. Long Beach, California 90801 LISA.

PIONEER ELECTRONIC [EUROPE] N.V. Keetzberglaan l, 2740 Beveren. Belgium

PIONEER ELECTRONICS AUSTRALIA PTY. LTD. 178-184 Beundary Road. BraeSIde. Victoria 3195. Australia

FA © NOV. 1983 Printed in Japan

Page 2

QUESTIONNAIRE MODEL

One Model per questionnaire

Dear Servicer,
Thank you for your cooperation in the post-sale service of Pioneer products.

This questionnaire is used as a tool to improve the serviceability of our products and service manuals.
Please evaluate this model and service manual by answering the following questions. Your ideas may be
realized in our future products. Your answers will be appreciated. Thank you.

PIONEER ELECTRONIC CORP.

T. Nakagawa, Manager, Service Section, International Division

1. SERVICING EVALUATION Circle applicable number: Good Fair Poor
3. Disassembly/Re-assembly: 1 2 3 *4 *5
b. Circuit Checks: 1 2 3 *4 *5
c. Replacement of Parts: 1 2 3 3"4 *5
d. Adjustment (s): 1 2 3 *4 *5

* If (4) or (5) was circled, please be specific.
