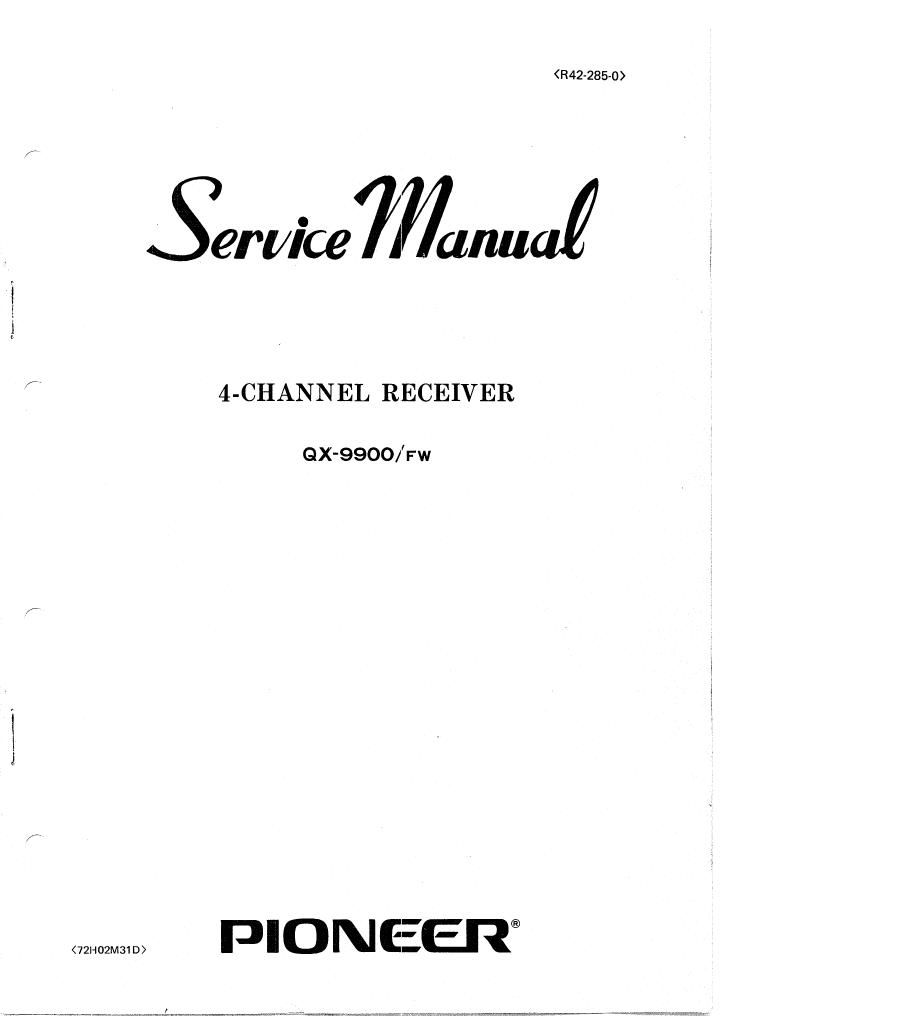

Pioneer qx 9900 service manual

This is the 80 pages manual for pioneer qx 9900 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 80
pioneer qx 9900 service manual

Extracted text from pioneer qx 9900 service manual (Ocr-read)


Page 2

5"990.

10.

11.

GX-SSDD

CONTENTS
SPECIFICATIONS ..................................................................................................................... 1
FRONT PANEL FACILITIES-1 .............................................................................................. 3
FRONT PANEL FACILITIES-2 .............................................................................................. 5
CONNECTION DIAGRAM ....................................................................................................... 7

CIRCUIT DESCRIPTION
51 RF circuitry ..
5.2 Audio circuitry
5.3 Power supply circuit.


5.4 Decoder circuit ....... ..
DISASSEMBLY ...................................................................................................................... 15
PARTS AND PCB LOCATION

7.1 Top view
7.2 Bottom view .
DIAL CORD STRINGING
PACKING METHOD AND PART NUMBERS ..................................................................... 19
ALIGNMENT PROCEDURE
10.1 Required instruments .....
10.2 FM 10.7MHz alignment
10.3 FM front and alignment .......
10.4 FM MPX decoder alignment .
10.5 Muting threshold level alignment
10.6 AM 455kHz alignment ..
10.7 AM tracking alignment ..
10.8 Idle current adjustment ...................................................
10.9 DC neutral voltage adjustment .......................................
PARTS REPLACEMENT

11.1 Pilot lamps ......................... . .............................................................................................. 23
11.2 Front glass

11.3 Level meters .
11.4 Tuning and signal meters ............................................................................................... 24
