Pioneer prv 9000 service manual

Page 1

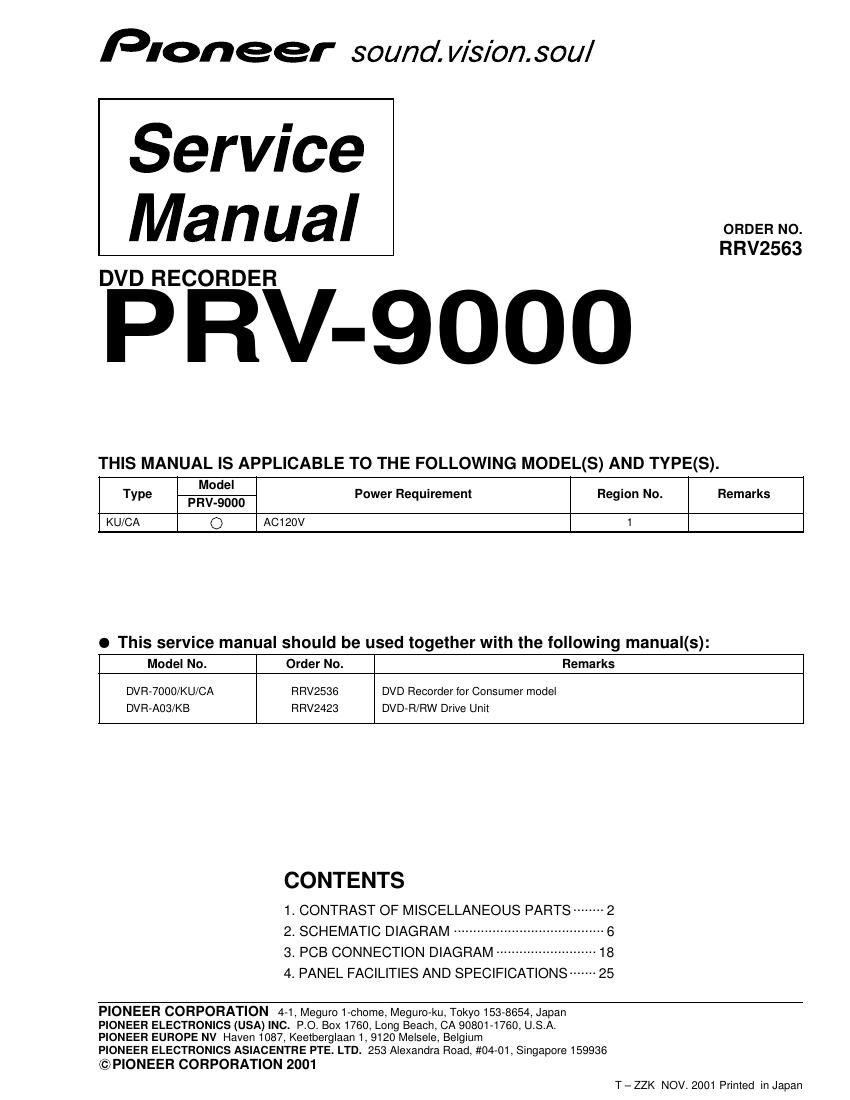

Pioneer sound. vision. soul

Service
Manual

ORDER NO.
RRV2563
DVD RECORDER
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Type Play-(33:0 Power Requirement Region No. Remarks
KU/CA O AC120V 1

o This service manual should be used together with the following manual(s):

Model No. Order No. Remarks
DVR-7000/KU/CA RRV2536 DVD Recorder for Consumer model
DVR-A03/KB RRV2423 DVD-R/RW Drive Unit

1. CONTRAST OF MISCELLANEOUS PARTS -------- 2

2. SCHEMATIC DIAGRAM ---------------
3. PCB CONNECTION DIAGRAM

4. PANEL FACILITIES AND SPECIFICATIONS ------- 25

PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. F'.O. BOX1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

© PIONEER CORPORATION 2001

T - ZZK NOV. 2001 Printed in Japan

Page 2

PRV-9000

1.C

ONTRAST OF MISCELLANEOUS PARTS

NOTES: OParts marked by "NSF" are generally unavailable because they are not in our Master Spare Parts List.
I The /I\ markfound on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
0 Screws adjacent to Y mark on product are used for disassembly.
lReference Nos. indicate the pages and Nos. in the service manualfor the base model.
0 When ordering resistors, first convert resistance values into codeform as shown in thefollowing examples.
Ex! When there are 2 eflective digits (any digit apartfrom 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%,
and K=10%).
560 a 56 X 10 _ 561 . .
47k ~ 47X10' » 473
0.5 R50 -- -
1 4 [KO - RSIPI®@K
Ex.2 When there are 3 eflective digits (such as in high precision metalfilm resistors).
5.62k a 562 X 10 a 5621 --------- RN1/4PCIE IF
I CONTRAST TABLE
PRV-QOOO/KU/CA and DVR-7000/KU/CA are constructed the same except for the following :
Part No.
Ret. No. Mark Symbol and Description DVR-7000 PRV-9000 Remarks
/KU/CA /KU/CA
PCB ASSEMBLIES
TUJB ASSY VWM2103 DWM2134
P7- 1 TUMJ ASSY VWV1885 DWX2201
P7- 2 REAR JACK ASSY VWV1887 DWX2203
P7- 3 3D Y/C ASSY VWV1888 DWX2204
P7- 4 FRONT JACK ASSY VWV1886 DWX2202
P7- 6 A POWER SUPPLY ASSY VWR1347 DWR1354
PACKING SECTION
P5- 1 FIF Antenna Cable VDE1025 Not used
P5- 2 Stereo Audio Cable VDE1033 Not used
P5- 3 Video Cable VDE1034 Not used
P5- 6 NSP Warranty Card ARY1026 DRY1197
P5- 7 Operating Instructions (English) VFIB1275 DFIB1313
P5-11 NSP DVD-RW Disc Ver 1.1 VZZ1001 Not used
P5-15 Packing Case VHG2122 DHG2169
EXTERIOR SECTION
P7-33 Rear Panel VNA2328 DNC1591
P7-34 Bonnet VXX2814 DXX2507
P7-41 Insulator VXA2424 DXA1920
P7-42 DVD Badge VAM1119 DAM1084
P7-46 Tray Panel VNK4801 DAX1012
P7-51 Screw VBA1082 BBZ30P060FZK
P7-56 Screw FBT40P080FNI FBT4OPOBOFZK
Screw BBZ30POGOFMC IBZ3OP080FCC No. 1
Screw BBZ30P060FMC BBZ30P060FZK No.2
Ground Terminal Not used DKE-102 No. 3
NSF History Label Not used VFIW-348 No. 4
FRONT PANEL SECTION
P9- 7 Front Aluminium VAH1392 DAX1009
P9- 8 PIONEER Badge VAM1124 BAM1004
P9-12 Input Sheet VEC2199 DEC2449
P9-17 Panel Base VNK4983 DAX1010
P9-18 Input Door VNK4924 DAX1011
P9-19 Dial Knob VNK4802 DAC2017
P9-20 Power Button VNK4803 DACZO16
P9-21 Play Button VNK4804 DAC2015
Notes : The numbers in the remarks column correspond to the numbers on the EXPLODED VIEWS .

For PCB ASSEMBLIES, Refer to CONTRAST OF PCB ASSEMBLIES", PCB PARTS LIST, 2. SCHEMATIC DIAGRAM and
3. PCB CONNECTION DIAGRAM.
