Pioneer prsd 5000 spl service manual

Page 1

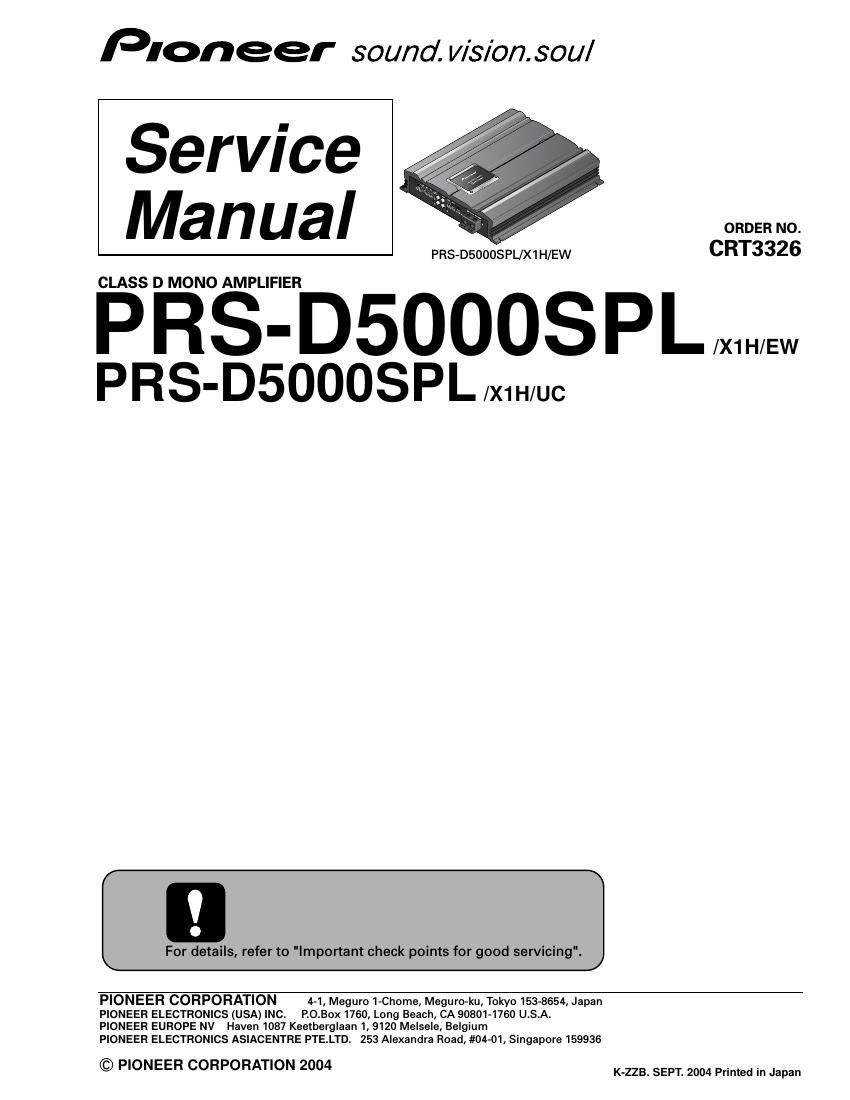

Pioneer sound. WIS/basou/

Service
Manual

PRS-D5000PL/X1H/EW CRT3326

CLASS D MONO AMPLIFIER

PRS-D5OOOSPLWW

PRS-DSOOOSPL/xm/uc

For details, refer to "Important check points for good servicing".

PIONEER CORPORATION 4-1, Megum 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O.Box 1760, Long Beach, CA 908014760 USA.
PIONEER EUROPE NV Haven 1087 Keetberglaan 1. 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road. #0401, Singapore 159936

© PIONEER CORPORATION 2004 K-ZZB. SEPT. 2004 Printed in Japan

Page 2

SAFETY INFORMATION

CAUTION

This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.
Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair
complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.
If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so
and refer the repair to a qualified service technician.

WARNING

This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of
California to cause cancer, birth defects or other reproductive harm.
Health & Safety Code Section 25249.6 » Proposition 65

O Service Precaution a
You should conform to the regulations governing the product (safety, radio and noise, and other regulations),
and should keep the safety during servicing by following the safety instructions described in this manual.

2 PnsosmsPuxm/Ew
1 - 2 - 3 - 4 I
