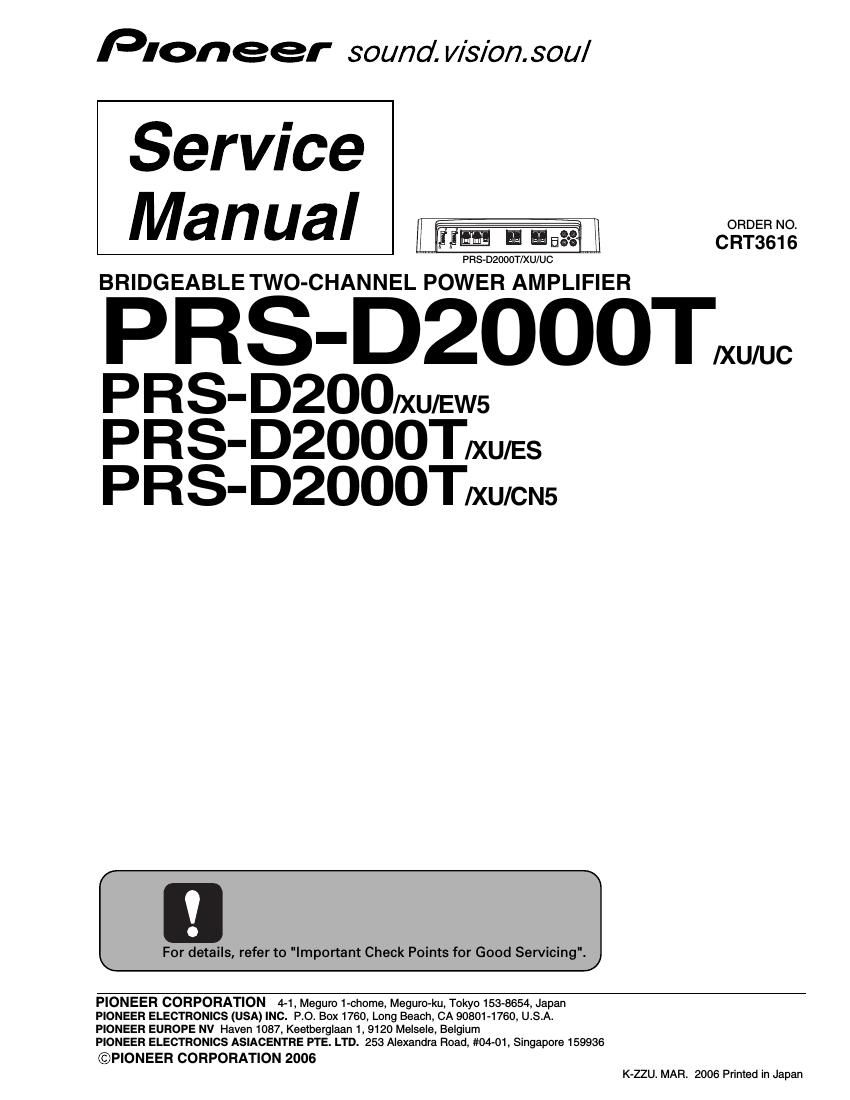

Service
Manual

BRIDGEABLE TWO-CHANNEL POWER AMPLIFIER

PRS-DZOOOTMc

PRS-DZOO/xwews
PRS-DZOOOT/xwes
PRS-DZOOOT/chns

U ORDER NO.

CRT3616

PRS-DZOOOT/XU/UC

For details, refer to "Important Check Points for Good Servicing".

PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. BOX 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

©P|ONEER CORPORATION 2006
K-ZZU. MAR. 2006 Printed in Japan

Page 2

SAFETY INFORMATION

CAUTION

This service manual is intended for qualified sen/ice technicians; it is not meant for the casual do-it-yourselfer.

Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair
complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you
are not qualified to perform the repair of this product properly and safely, you should not risk twing to do so and refer the
repair to a qualified sen/ice technician.

WARNING

This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California
to cause cancer, birth defects or other reproductive harm.
Health & Safety Code Section 25249.6 - Proposition 65

0 Service Precaution n
0 You should conform to the regulations governing the product (safety, radio and noise, and other regulations),
and should keep the safety during servicing by following the safety instructions described in this manual.
- Be careful in handling ICs. Some ICs such as MOS type are so fragile that they can be damaged by electrostati<
induction.

PFtS-DZOOOT/XU/UC
