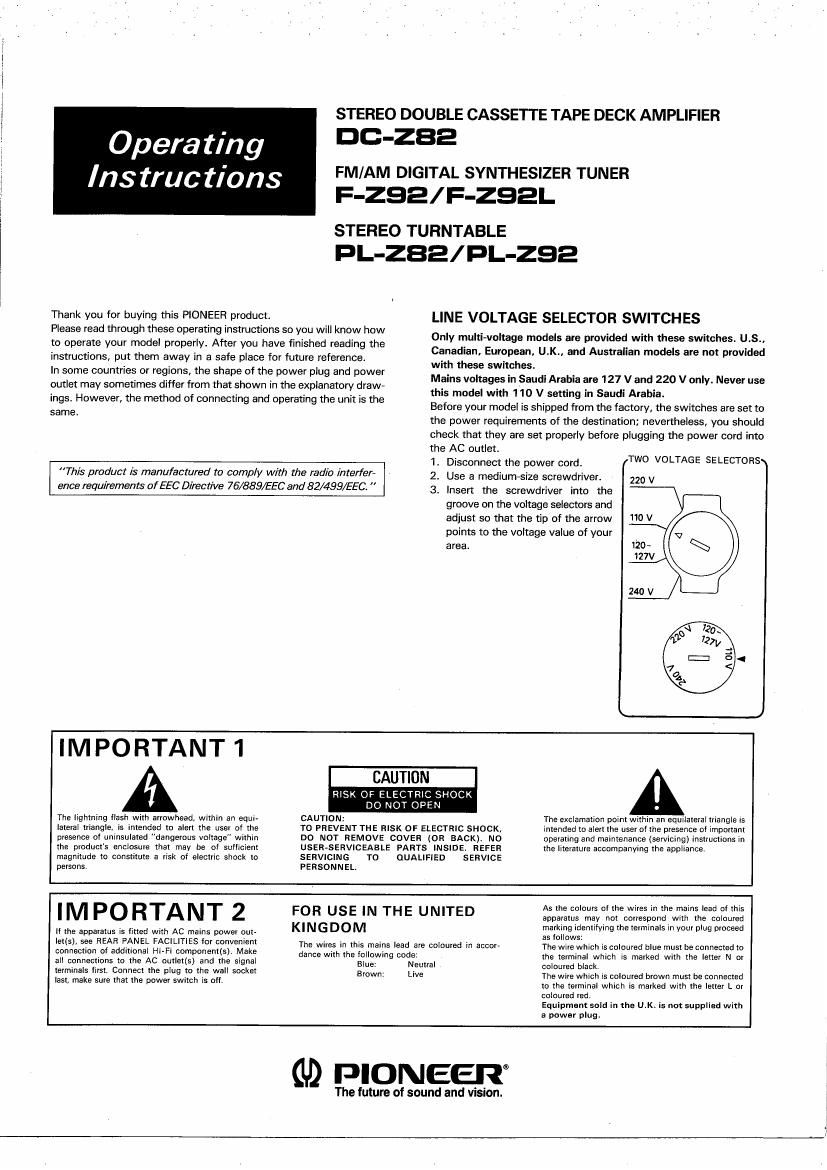

Page 1

l

Opera ting

Ins truc tions

Thank you for buying this PIONEER product.

Please read through these operating instructions so you will know how
to operate your model properly. After you have finished reading the
instructions, put them away in a safe place for future reference.

In some countries or regions, the shape of the power plug and power
outlet may sometimes differ from that shown in the explanatory draw-
ings. However, the method of connecting and operating the unit is the

same,

STEREO DOUBLE CASSETTE TAPE DECK AMPLIFIER
DC-ZBE

FM/AM DIGITAL SYNTHESIZER TUNER
F-ZSE/F-ZSEL

STEREO TURNTABLE
PL-ZBE/PL-ZSE

LINE VOLTAGE SELECTOR SWITCHES

Only multi-voltage models are provided with these switches. U.S..
Canadian, European, U.K., and Australian models are not provided
with these switches.

Mains voltages in Saudi Arabia are 127 V and 220 V only. Never use
this model with 110 V setting in Saudi Arabia.

Before your model is shipped from the factory, the switches are set to
the power requirements of the destination: nevertheless, you should
check that they are set properly before plugging the power cord into

"This product is manufactured to comply with the radio interfer-
ence requirements of EEC Directive 7 6/889/EEC and 82/499/EEC. "

the AC outlet.
1. Disconnect the power cord. TWO VOLTAGE SELECTOHS
2. Use a mediumsize screwdriver. 220 V

3. Insert the screwdriver Into the

groove on the voltage selectors and
adjust so that the tip of the arrow
points to the voltage value of your
area.

IMPORTANT 1

The Iighining flash wirh arrowhead, within an equi-
lateral Iriangle. is inIended to alert the user of the
presence of uninsulated "dangerous voltage" within
the product's enclosure rhal may he of suiflcient
magnitude to constitute a risk of electric shock to
persons.

CAUTION

RISK OF ELECTRIC SHOCK
DO NOT OPEN

CAUTION:

TO PREVENT THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (0R BACK). ND
USER'SEHVICEABLE PARTS INSIDE. REFER
SERVICING T0 QUALIFIED SERVICE
PERSONNEL.

The exclamation point within an equllaretai triangle is
intended to alert the user oi the presence or imporram
operarlng and maintenance (servicing) instructions in
the literature accompanying Ihe appliance.

IM PORTANT 2

If the apparatus is fitted W|rh AC mains power Dul-
le!(s), see REAR PANEL FACILITIES for convenient
connection of additional Hi-Fi component(s). Make
all connections to lhe AC outlefls) and the signal
terminals first. Connect the plug to the wall socket
lest, make sure that ihe power switch is on.

FOR USE IN THE UNITED
KINGDOM

The wires in this mains lead are coloured in accor-
dance with the Iollowing code:

Blue: Neulral

Brown: Live

As the colours of the wires In the mains lead of this
apparatus may not correspond with the coloured
marking identifying the terminals in your plug proceed
as follows:

The wire which Is coloured blue must be connected to
the terminal which is marked with the letter N or
coloured black

The wire which ls coloured brown must be connecIed
to the terminal which is marked with the IeIter L or
coloured red

Equipment sold in the U.K. Is not supplied with
a power plug,

GD PIONEEIT

The future of sound and vision.
