Pioneer plz 81 service manual
This is the 22 pages manual for pioneer plz 81 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer plz 81 service manual (Ocr-read)

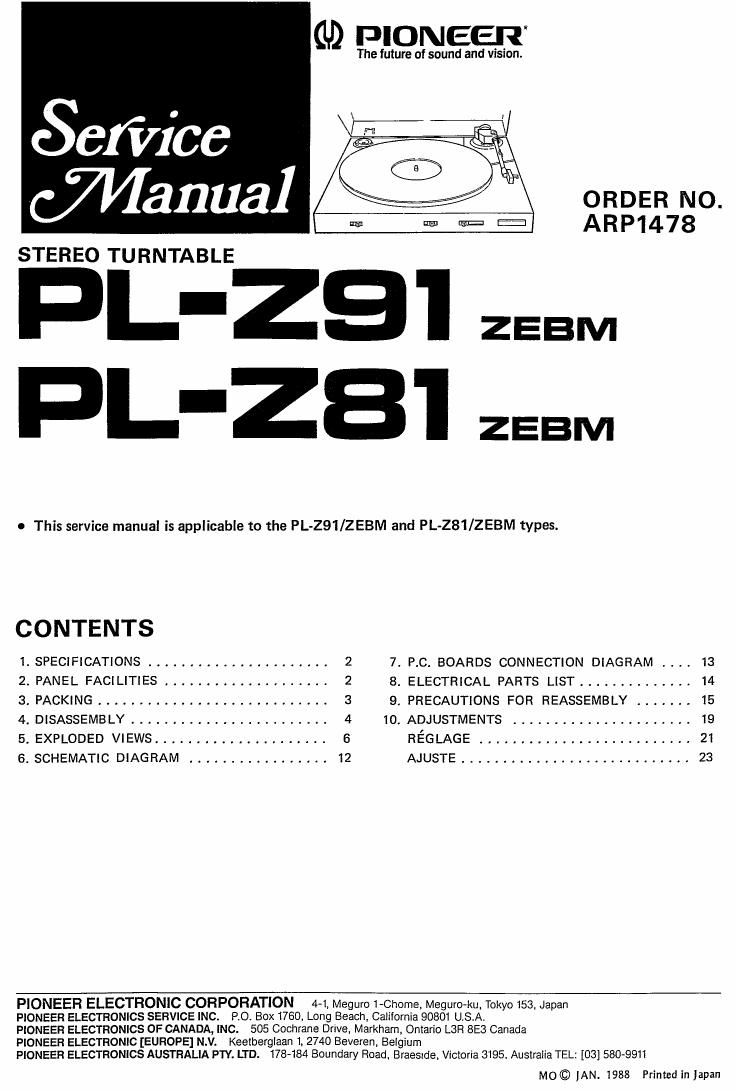

Page 1
PIONEER
The future of sound and vision.
ORDERNO.
ARP1478
STEREO TU RNTABLE
L-ZS'I ZEBM
L-za 1 ZEBM
o This service manual is applicable to the PL-291/ZEBM and PL-281/ZEBM types.
CONTENTS
1. SPECIFICATIONS ...................... 2 7. P.C. BOARDS CONNECTION DIAGRAM 13
2. PANEL FACILITIES .................... 2 8. ELECTRICAL PARTS LIST .............. 14
3. PACKING ............................ 3 9. PRECAUTIONS FOR REASSEMBLY ....... 15
4. DISASSEMBLY ........................ 4 10. ADJUSTMENTS ...................... 19
5. EXPLODED VIEWS ..................... 6 REGLAGE .......................... 21
6. SCHEMATIC DIAGRAM ................. 12 AJUSTE ............................ 23
PIONEER ELECTRONIC CORPORATION 44, Megum I-Chome, Meguro-ku. Tokyo 153. Japan
PIONEER ELECTRONICS SERVICE INC. HO, BOX I760, Long Beach, California 90801 USA.
PIONEER ELECTRONICS OF CANADA, INC. 505 COCIIFZJ'IB DIIVE. Markham, Ontario L3R 8E3 Canada
FIONEER ELECTRONIC [EUROPE] N.V. Keetberglaan I. 2740 Beveren, BeIgium
PIONEER ELECTRONICS AUSTRALIA PTY. LTD. 178-184 Boundary Road, BraeSIde. Victoria 3195. AustraIIa TEL: {03] 580-9911
MO© JAN. 1988 Printed In Japan
Page 2
PL-ZSI , PL-ZB1
1. SPECIFICATION
Turntable: PL-291/PL-281
Motor, Platter
Motor Type ................................................ DC servo motor
Drive Method ......................... 1,,- ...................... beI-t drive
Speed ............................................ Hen.83-1/3 45 RPM
Speed Variation ----------- 0.07% WRMS (JIS i0.10% WTD)
Peak (DIN).
S/N Ratio ................... ~ ............... -..- ...... tan: ....... 68 dB (D|N_B)
Platter ------------------------------- 295mm dia.,,. aluminum die-cast
Tonearm
Type ----------------------- Dynamirbalance type, straight tonearm
Installed Cartridge
Type ....................................................................... MM type
Replacement Stylus ............................. ............... . PN-ZIO
Stylus ................................................ i ....... 0.6 mil diamond
Output voltage 2.5mV (likHz, 3.54cm/S, Lat. peak)
Tracking Force --------------------------- 2-3.0g {optimum 2.59)
Frequency Response --------------------------- 20Hz to 20,000Hz
Load Resistance ......................................................... 47kg
Cartridge Weight ................................................... . ......... 4g
2. PAN EL FACILITIES
P /r
@
{PL-281 is not equipped
with this switch.)
Other
Dimensions -------------------------- 360W x 90H x 350.50lmm)
Weight
PL..291 ................................................................. 2,7kg
PL_281 ............................... I ................................... 27kg
Accessories
EP Adaptor ................................................. T ............... 1
Specifications and design subject to possible modifications
without notice due to improvement.
.49
