Pioneer pl 930 service manual

This is the 9 pages manual for pioneer pl 930 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 9
pioneer pl 930 service manual

Extracted text from pioneer pl 930 service manual (Ocr-read)

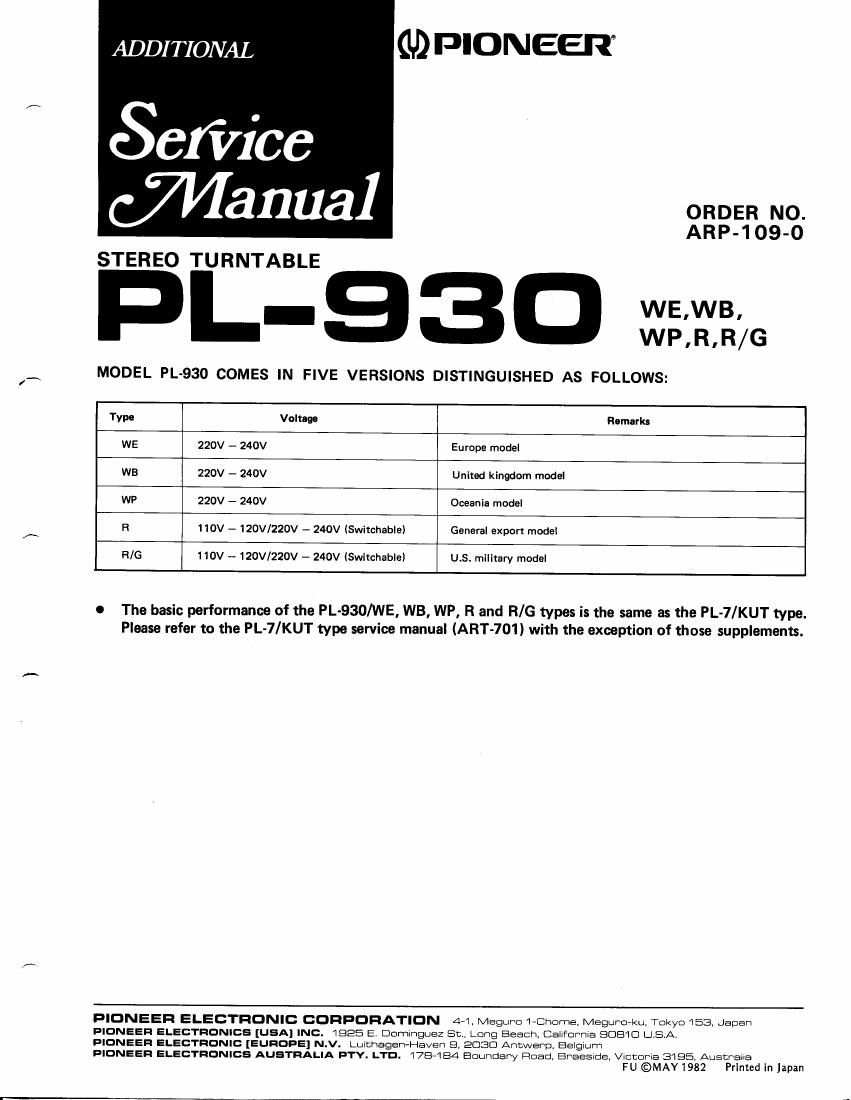

Page 1

ADDITIONAL

Satirist:
Wanna]

STEREO TURNTABLE

L-sso
WP,R,R/G

MODEL PL930 COMES IN FIVE VERSIONS DISTINGUISHED AS FOLLOWS:

ORDER NO.
ARP-109-0

Type Voltage Remarks
WE 220V - 240V Europe model
WB 220V - 240V United kingdom made!
WP 220V - 240V Oceania model
R 1 10V - 120V/220V - 240V (Switchable) General export model
R/G 110V - 120V/220V - 240V (Switchable) U.S. military model

0 The basic performance of the PL-930/WE, WB, WP, R and R/G types is the same as the PL-7/KUT type.
Please refer to the PL-7/KUT type service manual (ART-701) with the exception of those supplements.

PIONEER ELECTRONIC CORPORATION 44. Meguro i-CJIOmE, Meguro-ku, Tokyo 153. Japan
PIONEER ELECTRONICS [USA] INC. 1925 E. Dominguez St, Long Beach, Califorma 9081C] U.S.A.

PIONEER ELECTRONIC [EURORE] N.v. Lumhagen-Haven s. 2133C} Antwerp. Beigxum

PIONEER ELECTRONICS AUSTRALIA R'rv. LTO. 178-154 Boundary Road, Braesxde, Vlccoria 3195. Australia

FU ©MAY 1982 Printed in Japan

Page 2

PL-QBO

1. SPECIFICATIONS

Motor and Turntable

Drive System ...................... Direct-drive
Motor .................... Quartz PLL Hall motor
Turntable Platter . . 310mm diam; aluminum alloy diecast
Speeds ...................... 33-1/3 and 45mm
Wow and Flutter ........ Less than 0.012% (WRMS)
0.025% (WR MS)

0.035% (DIN)

Values marked with an " designate the wow and flutter

for motor, and do not include the cartridge or tonearm

load.

Signal-to-Noise-Ratio ........ More than 78dB (DIN-B)
(with Pioneer cartridge model PC-3MCI

Tonearm

Type .......... Static-balance type, Straight pipe arm
Effective Arm Length ................... 221mm
Overhang ........................... 15.5mm
Usable Cartridge Weight ........ 39 (min.) to 89 (max.)
Subfunctions

Full auto mechanism, Anti-skating force control, Stylus
pressure direct-readout counterweight, Cueing device,
Free stop hinges

Miscellaneous

Power Requirements
WE, WB, WP models ...... ACZ20-240V~, 50, 60H:
R, RIG models ........... AC110-120/220-240V~
(switchable), 50. 60H:
Power Consumption ...................... 12W
Dimensions . . . 1 ...... 420(W) x 108(H) x 367(Dimm
16-1/2(WI x 4-1/4IHIx14-7/16ID)in.
Weight ........................... 5.9kg/13lb

PC-3MC Specifications
Type ........................ Moving coil type
Stylus ................. 0.5m diamond (PN-3MC)
Output Voltage ........................ 2.5mV
(1kHz, 50mm/s Peak velocity, LAT)
Tracking Force ............. 1.79 to 2.39 (proper 29)
Frequency Response ............... 10 to 32,000Hz
Recommended Load ..................... SOkSZ
Weight ............................... 3.1g
Accessories
EP Adapter .............................. 1
Operating Instructions ....................... 1
NOTE:

Specifications and design subject to possible modification
withoutnotice, due to impromements.

v"
