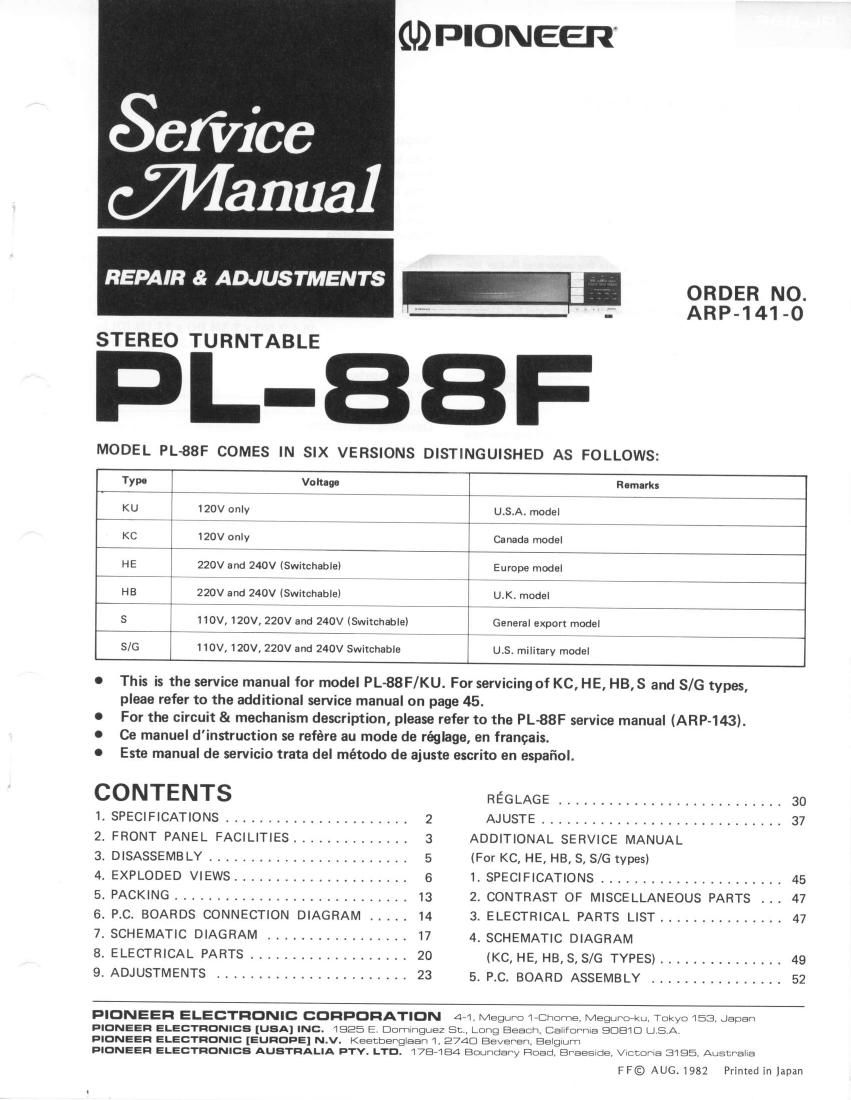

Pioneer pl 88 f owners manual
This is the 52 pages manual for pioneer pl 88 f owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer pl 88 f owners manual (Ocr-read)
Page 1
1. SPECIFICATIONS Motor and Turntable Drive System Direct-drive Motor......... Ouartz PLL Hall motor Turntable Platter.....280 mm diam. aluminum alloy die-cast Speeds 33-1/3 and z[5 rPm Wowand Flutter ........ Lessthan *O.012Vo {WRMS) 0.025o/o (WRMS) i0.035% WTD Peak (DlN) Values marked with an "*" designate the wow and flutter for motor, and do not include the cartridge or tonearm load. Signal-to-Noise-Ratio More than 78 dB (DIN-B) {with Pioneer cartridge model PC-41 MC) Tonearm Type . .. . .. . . . . Static-balance type, Straight pipe arm Effective Arm Length ..'. 208 mm Overhang .2O.2 mm PC-41 M C Specifications Type ......... ..... Moving coil type Stylus ......... . 0.3 x0.7 mildiamond (PN-41MC) outPutVortas" ii kH;.50;;;;;;;;;;i*1il'-l Tracking Force ......... 1.7 gto2'39 (proper2g) Frequency Response 10 to 35,000 Hz Recommended Load """" 50 ko Accessory mechanisms Auto lead-in, auto return, auto cut, repeat Arm elevation, program search Play Index play, manual play, manual location Skip, auto disc size selector Deck synchro, record detection Built-in anti-skating Miscellaneous Power Requirements AC120 V,60 Hz Power Consumption ......... 21W Dimensions ..420 (W) x 98 {H) x 335 (D) mm 16-112 (W)x 3-3/a (H)x 13-114 (D) in. Weight ....... 10.3 kg/221b 11 oz Accessories EP Adaptor ........ 1 Deck synchro cord ........... .......................... 1 Operating Instructions ............ 1 NOTE: Specifications and design subject to possible modification without notice, due to improvements.
Page 2
2. FRONT PANEL FACILITIES o poweR switch Press this switch to turn the power on and off. Depressed ( - ) position: Power is switched ON. Released( r )position: Power is switched OFF. When the POWER switch is set to ON, the following swit- ches are set automatically. ARM ELEVATION switch - UP. MANUAL ARM SET/CUT switch -+ OFF, REPEAT switch -+ OFF, SPEED selector switch -+ 33 @ oecr sYNcHRo switch/indicator This switch is used when a tape deck has been connected to this unit using the accessory cord. Depressed ( - ) position: For operations which are synchronized with the tape deck. Released( I )position: For operations which are not svnchronized with the tape deck. @ naaruuAl ARM SET/CUT switch r Press this switch for manual play. o Press this switch to stop manual play. @ SPeeO selector switch This is pressed so that the speed indicator lights in line with the rated speed of the record which is to be played. "(33)" lights: For playing 33-1/3rpm records. "(45)" lights: For playing 45 rpm records. @ SflP swatch r When this switch is pressed during play, the play of the current track is suspended and the stylus starts playing the next track. o When the switch is pressed during programmed play, the play of the current track is suspended and the stylus moves on to the next track programmed and starts playing that track. @ STOP switch/ARM LOCATE switch/ indicator ( ) ) o Press to stop auto play. r Press when moving the tonearm toward the right (in the direction of the outside of the record) during manual play. o Press this switch to release the program function. o
