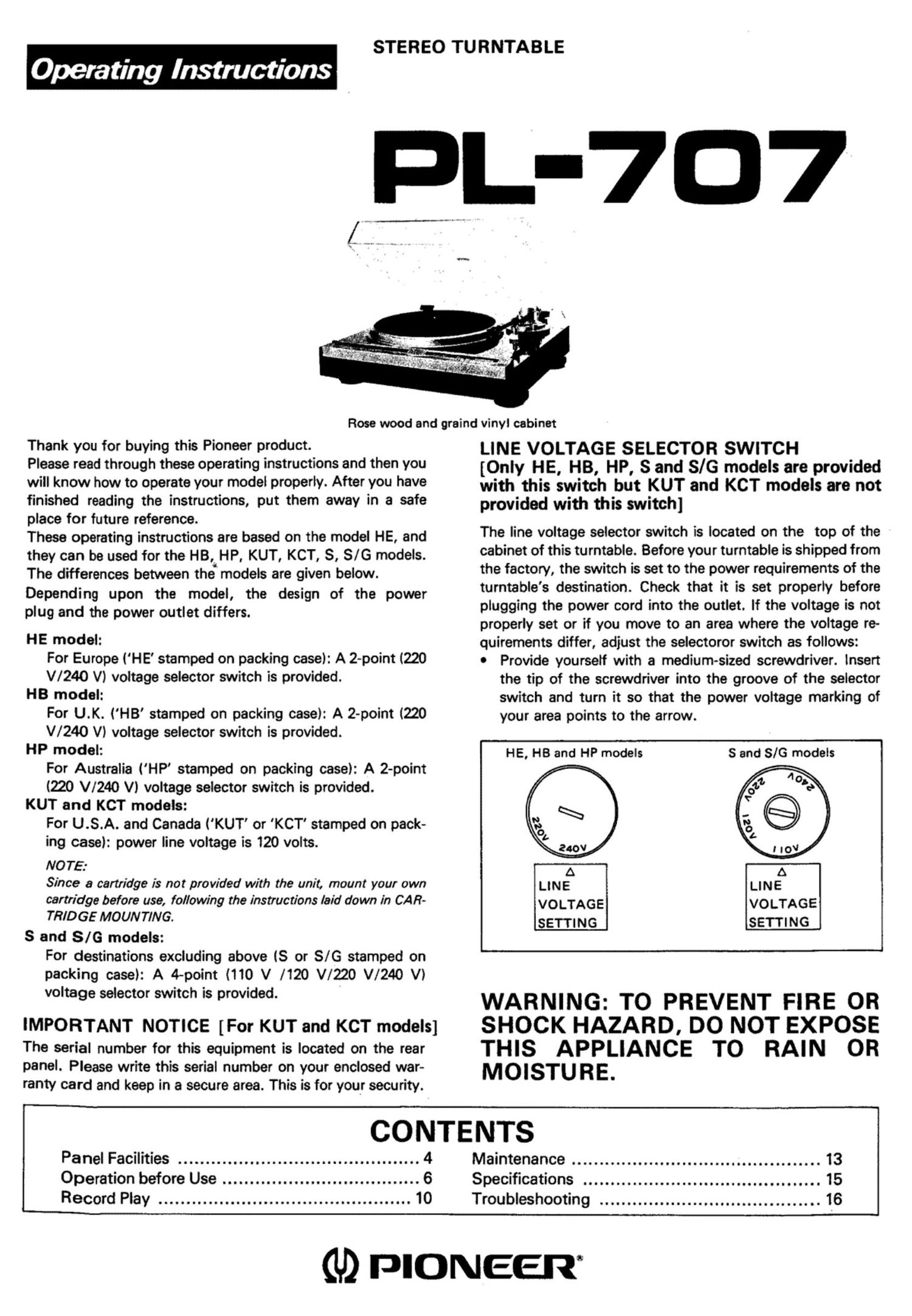

Page 1

. STEREO TURNTABLE
(hmthghflmwmmMB

Rose wood and graind vinyl cabinet

Thank you for buying this Pioneer product.

Please read through these Operating instructions and then you
will know how to operate your model properly. After you have
finished reading the instructions, put them away in a safe
place for future reference.

These operating instructions are based on the model HE, and
they can be used for the HB, HP, KUT, KCT, S, S/ G models.
The differences between the models are given below.
Depending upon the model, the design of the power
plug and the power outlet differs.

HE model:
For Europe (HE stamped on packing case): A 2-point (220
V/24O V) voltage selector switch is provided.

H8 model:
For U.K. (HB' stamped on packing case): A 2-point (220
V/240 V) voltage selector switch is provided.

HP model:
For Australia I'HP' stamped on packing case): A 2-point
(220 V/240 V) voltage selector switch is provided.

KUT and KCT models:
For U.S.A. and Canada ('KUT or 'KCT' stamped on pack-
ing case): power line voltage is 120 volts.

NOTE.-
Since a cartridge is not provided with the unit, mount your own
cartridge before use, following the instructions laid down in CA fi-
TRID GE MOUN TING.

S and 8/6 models:
For destinations excluding above (S or S/ G stamped on
packing case): A 4-point (110 V /120 V/220 V/24O V)
voltage selector switch is provided.

IMPORTANT NOTICE [For KUT and KCT models]

The serial number for this equipment is located on the rear
panel. Please write this serial number on your enclosed war-
ranty card and keep in a secure area. This is for your security.

LINE VOLTAGE SELECTOR SWITCH

[Only HE, HB, HP, 8 and 8/6 models are provided
with this switch but KUT and KCT models are not
provided with this switch]

The line voltage selector switch is located on the top of the
cabinet of this turntable. Before your turntable is shipped from
the factory, the switch is set to the power requirements of the
turntable's destination. Check that it is set properly before
plugging the power cord into the outlet. If the voltage is not
properly set or if you move to an area where the voltage re-
quirements differ, adjust the selectoror switch as follows:

0 Provide yourself with a medium-sized screwdriver. Insert
the tip of the screwdriver into the groove of the selector
switch and turn it so that the power voltage marking of
your area points to the arrow.

S and 8/6 models

HE, H8 and HP models

/

LINE LINE
VOLTAGE VOLTAGE
SETTING SETTING

WARNING: TO PREVENT FIRE OR
SHOCK HAZARD, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR
MOISTURE.

CONTENTS

Panel Facilities ............................................ 4 Maintenance ............................................. 13
Operation before Use .................................... 6 Specifications ........................................... 15
Record Play .............................................. 10 Troubleshooting ........................................ l6

(1,9 PIONEER

Page 2

READ INSTRUCTIONS - All the safety and
operating instructions should be read before the
appliance is operated.

RETAIN INSTRUCTIONS - The operating instruc-
tions should be retained for future reference.
HEED WARNING -- All warnings on the appliance
and in the operating instructions should be adhered

to.

FOLLOW INSTRUCTIONS - All operating and use
instructions should be followed.

WATER AND MOISTURE - The appliance should
not be used near water - for example, near a
bathtub, washbowl, kitchen sink, laundry tub, in a
wet basement. or near a rimming pool, etc.

LOCATION -- The appliance should be insulted in a
stable location.

WALL OR CEILING MOUNTING - The appliance
should not be mounted to a wall or ceiling.

VENTILATION - The appliance should be situated so
that Its location or position does not interfere with
its proper ventilation. For example, the appliance
should not be situated on a bed. sofa, rug, or
similar surface that may block the ventilation open-
ings; or, placed in a built-in installation, such as a
bookcase or cabinet that may impede the flow of
air through the ventilation openings.

HEAT - The appliance should be situated away from
heat sources such as radiators, heat registers,
stoves, or other appliances (including amplifiers)
that produce heat.

POWER SOURCES - The appliance should be con-
nected to a power supply only of the type describ-
ed in the operating instructions or as marked on the
appliance.

POWERCORD PROTECTION - Power-supply cords
should be routed so that they are not likely to be
walked on or pinched by item placed upon or
against them, paying particular attention to cords
at phage, convenience receptacles, and the point
where they suit from the appliance.

SAFETY INSTRUCTIONS [FOR KUT mooeu'

CLEANING - The appliance should be cleaned only
with a polishing cloth or a soft dry cloth. Never
clean with furniture wax, benzine, insecticides or
other volatile liquids since they may corrode the
cabinet.

POWER LINES - An outdoor antenna should be
located away from power lines.

NONUSE PERIODS - The power cord of the ap-
pliance sh0uld be unplugged from the outlet when
left unused for a long period of time.

OBJECT AND UOUID ENTRY - Care should be
taken so that objects do not fall and liquids are not
apilad into the enclosure through openings.

DAMAGE REQUIRING SERVICE - The appliance
should be serviced by Pioneer authorized service
center or qualified service personnel when:

0 The power-supply cord or the plug has been
damaged; or

0 Objects have fallen. or liquid has been spilled into
the appliance; or

o The appliance has been exposed to rain; or

0 The appliance does not appear to operate normally
or exhibits a marked change in performance; or

0 The appliance has been dropped; or the enclosure
damaged.

SERVICING - The user should not attempt to service
the appliance beyond that described in the
operating instructions. For all other servicing, con-
tact the nearest Pioneer authorized service center.

OUTDOOR ANTENNA GROUNDING - if an outside

antenna is connected to the antenna terminal, be
sure the antenna system is grounded so as to pro-
vide some protection against voltage surges and
built up static charges.
In the U.S.A. section 810 of the National Electrical
Code, ANSI/NEPA No. 701ml, provides informa-
tion with respect to proper grOundig of the mast
and supporting structure. grounding of the lead-in
wire to an antenna discharge unit, size of groun-
ding conductors. location of antenna-discharge
unit, connection to grounding electrodes, and re-
quirements for the grounding electrode. See Fig.
A.

EXAMPLE OF ANTENNA GROUNDING AS
PER NATIONAL ELECTRICAL CODE INST RUC-
TIONS

Ground clamp

\
al. bl
Mast
9'00" c)
was Antenna To Antenna terminal
discharge \
unit
a), bi
Ground
wire
2 Ground clamps
Grounding electrode
driven 8' into the earth
(2.44 meters)
Fig. A

al Use No. 10 AWG (5.3 mm) copper or No. 8 AWG
(8.4 mm) aluminum or No. 17 AWG (1.0 mm)
copper-clad steel or bronze wire, or larger as
ground wires for both mast and lead-in.

bl Secure laadJn wire from antenna to antenna
discharge unit and mast ground wire to house with
stand-off insulators. spaced from 4 feet (1.2
meters) to 6 feet (1.83 meters) apart.

cl Mount antenna discharge unit as closely as possi-
ble to where lead-in enters house.

A

The lightning flash with arrowhead,
within an equilateral triangle, is intended
to alert the user of the presence of
uninsulated "dangerous voltage" within
the product's enclosure that may be of
sufficient magnitude to constitute a risk
of electric shock to persons.

llVl-RORTANT [FOR KUT NTODEL]
CAUTION

RISK OF ELECTRIC SHOCK
DO NOT OPEN

CAUTION:

TO PREVENT THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER
IOR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE PERSON-

The exclamation point within an
equilateral triangle is intended to alert the
user of the presence of important
operating and maintenance (servicing) in-
structions in the literature accompanying
the appliance.

NEL.

-- I

IMRORTANT

extended period of time.

AND AUSTRALIA]
CAUTION 240 V:

To prevent electric shock, do not remove cover. No user ser-
viceable parts inside, refer servicing to qualified service personnel.
Always disconnect all the equipment from the mains supply when
disconnecting the signal leads. The power card should be con-
nected last, make sure that the power switch is off.

Unplug the set from the wall socket when it is not to be used for an

[FOR USE IN UNITED KINGDOM

Mains supply voltage is factory
adjusted at 240 V.

[FOR USE IN UNITED KINGDOM]

The wires in this mains lead are coloured in accordance with the

following cord:
Blue: Neutral
Brown: Live

As the colours of the wires in the mains lead of this apparatus may
not correspond with the coloured marking identifying the ter-

minals in your plug proceed as follows:

The wire which is coloured blue must be connected to the terminal
which is marked with the letter N or coloured black.

The wire which is coloured brown must be connected to the ter-
minal which is marked with the letter L or coloured red.

Equipment sold in the U.K. is not supplied with a power

plug.
